3. Application example
3.1 Lead cutting machine

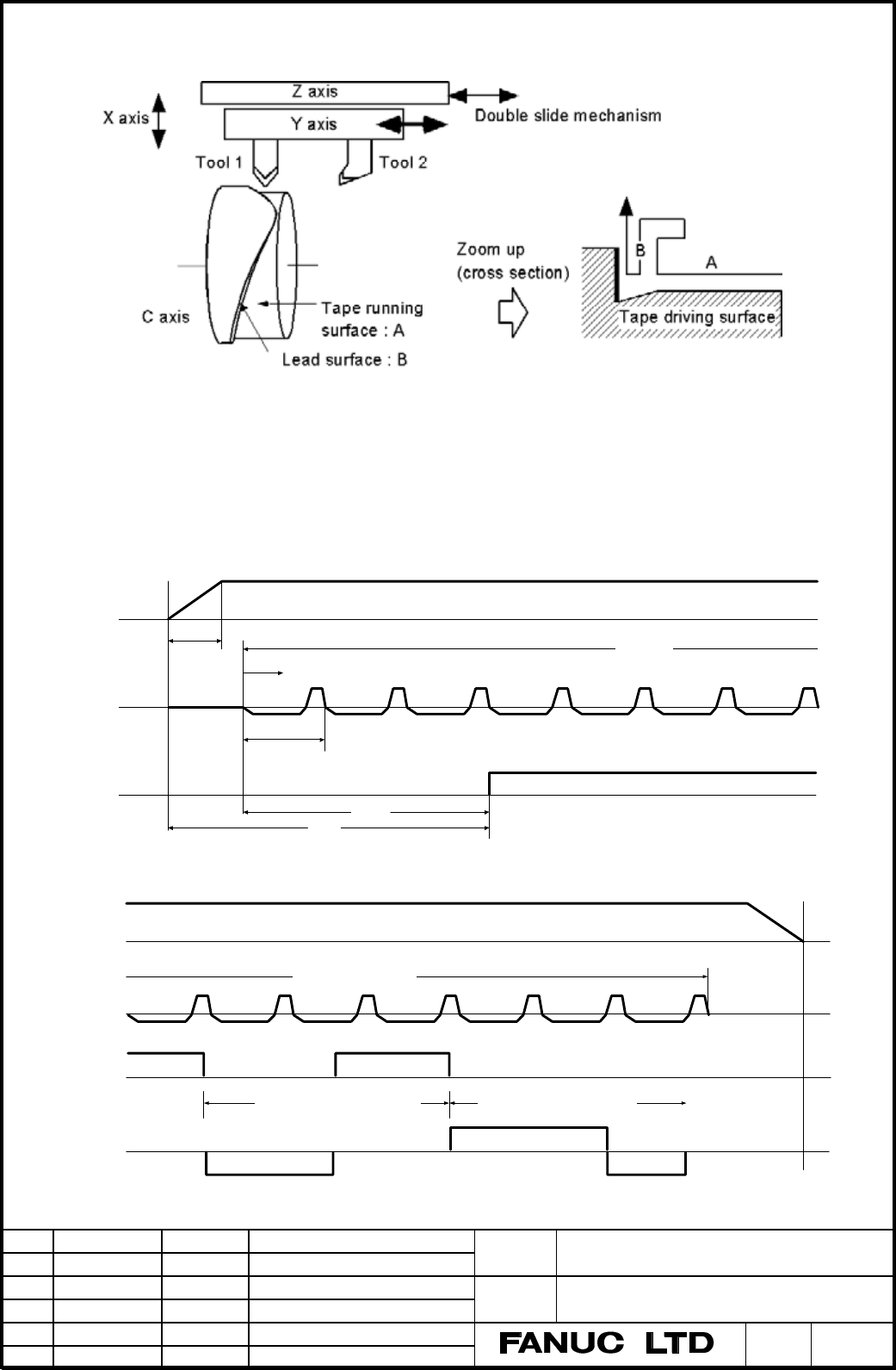

Fig. 3.1.1 Configuration example of Lead Cutting Machine
(1) The tape running surface is cut synchronized to the spindle rotation, moving the tool 1 back and forth along
the Y-axis. By feeding the tool along the Z axis, the lead surface is gradually cut deeper. ( Process A )
(2) To finish the lead surface, the tool retreats along the X axis temporarily and moves along the Z-axis
(offset). And the tool is changed to tool 2. Then, the movement of Y axis and C axis don't stop.
(3) The tool 2 is fed along the X axis and the lead surface is finished. ( Process B )
(4) Both Y-axis and C-axis use the Suspension mode or the Continuation mode of the Self-learning control.
Fig. 3.1.2 Movement of the Tool along Each Axis
Fig. 3.1.3 Movement of the Tool along Each Axis when Changing the Tool
T
Time
Const.
Y axis Learning start
Learning period
PRIOD
Cutting start
Ly
Lc
Caxis
Yaxis
Zaxis
RPTCT
Ly or Lc should be longer than the time the
learning complete to minimize the error
G05 start
Offset for tool change
Caxis
Yaxis
Zaxis
Xaxis
Repetitive count
RPTCT
Lead surface cutting
for finish
G05 end
