FS16i/18i/21i - TB/MA/MB Additional Manual Page 119

Additional Manual
FANUC Series 16i/18i/21i-MA/MB/TB TOOL MANAGEMENT FUNCTION A-78614EN
2002.08.08 Edition 04
119

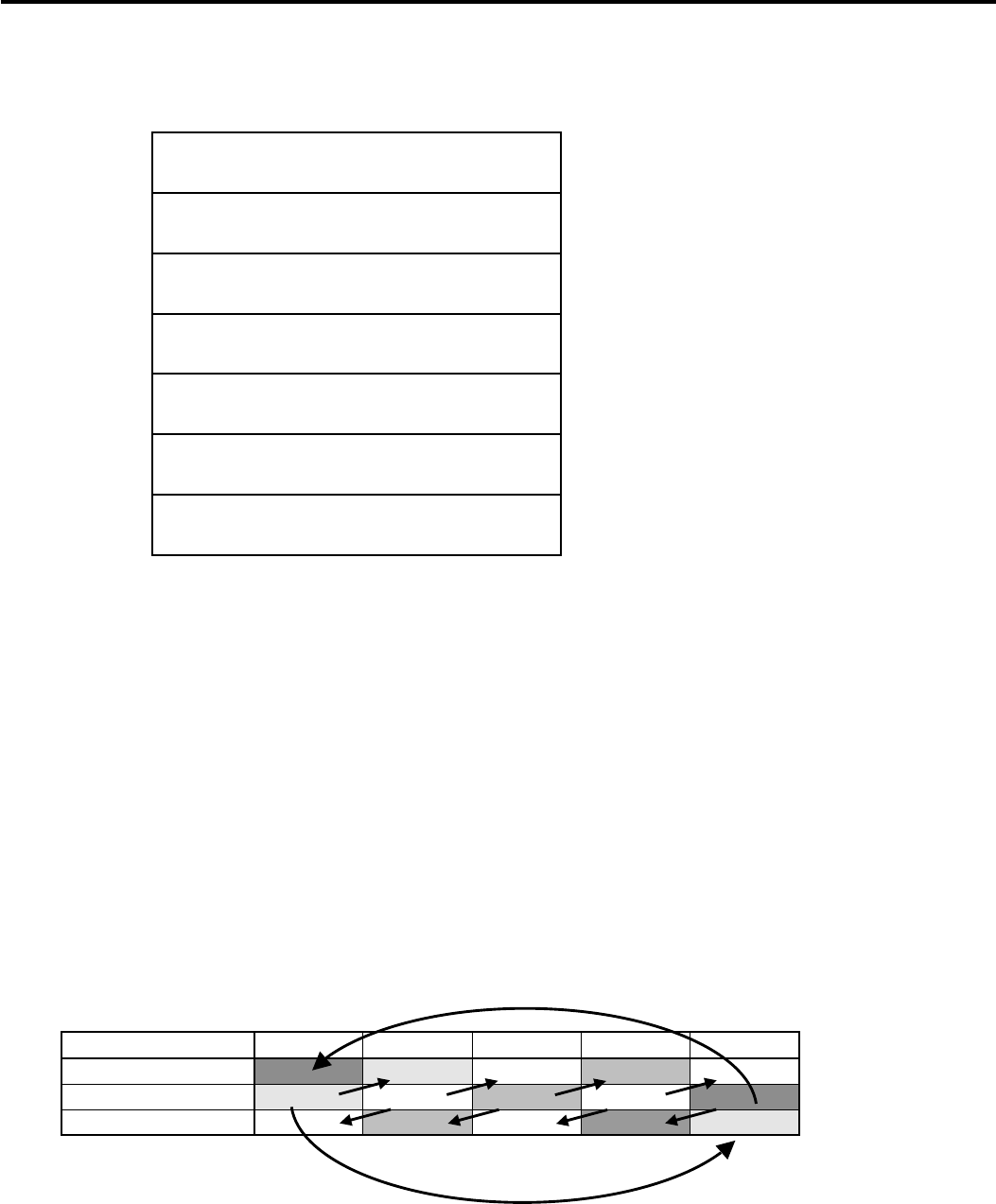

[Output data structure]
0
(Function code)
367
2
(Completion code)
-
4
(Data length)
0
6
(Data number)
Magazine number
8
(Data attribute)
Shift direction
10
(Data number2)
Shift amount
12
(Detail completion code)
Refer to above description
The shift direction is define as follows.
Shift direction : 1
The tool data in pot 1 shifts to pot 2.
The tool data in pot 2 shifts to pot 3.
The tool data in pot 3 shifts to pot 4.
The tool data in pot 4 shifts to pot 5.
The tool data in pot 5 shifts to pot 1.
Shift direction : -1
The tool data in pot 1 shifts to pot 5.
The tool data in pot 2 shifts to pot 1.
The tool data in pot 3 shifts to pot 2.
The tool data in pot 4 shifts to pot 3.
The tool data in pot 5 shifts to pot 4.
pot number 12345
direction : 1 7 3456
original condition 34567
direction : -1 4 567 3
