FS16i/18i/21i - TB/MA/MB Additional Manual Page 17

Additional Manual
FANUC Series 16i/18i/21i-MA/MB/TB TOOL MANAGEMENT FUNCTION A-78614EN
2002.08.08 Edition 04
17
N80 M06;
(1) When the M06 command is received, the M code (binary value 0006)
and the MF signal <F007#0> are output to F address <F010 to F013>
of PMC.
(2) The tool change is executed on the machine side, and the tool is moved
from the wait position to the spindle position.
(3) The PMC window (function code 329) changes the tool in the wait
position with the tool in the spindle position
(4) CNC newly recognizes the tool which moved to the spindle position
(magazine number No.11) by the PMC window (function code 329) to
be the tool life management object.
(5) The end signal of miscellaneous function is output from PMC to CNC.

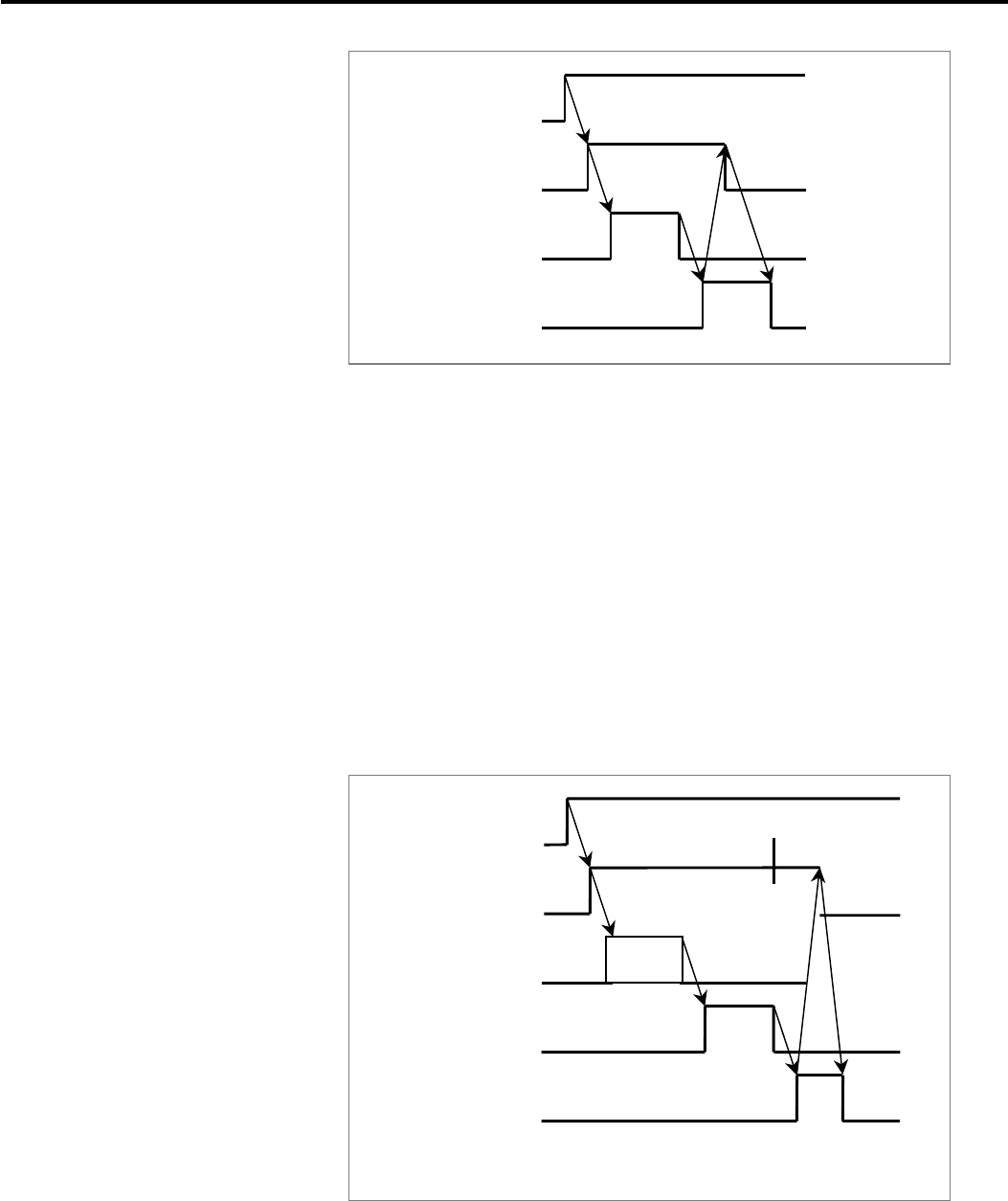

T code output
<F026-F029>
Tool function strobe
signal TF<F007#3>
PMC window function
code 329
Completion signal
FIN<G004#3>
M code output
<F010-F013>
miscellaneous
function strobe signal
MF<F007#0>
PMC window function
code 329
Completion signal
FIN<G004#3>
Tool
change
