FS16i/18i/21i - TB/MA/MB Additional Manual Page 38

Additional Manual
FANUC Series 16i/18i/21i-MA/MB/TB TOOL MANAGEMENT FUNCTION A-78614EN
2002.08.08 Edition 04
38
Output to external equipment
Input/output to the external devices is possible by the [ALL I/O screen] or
[tool management screen] when the I/O device number is 4, 6 or 7.

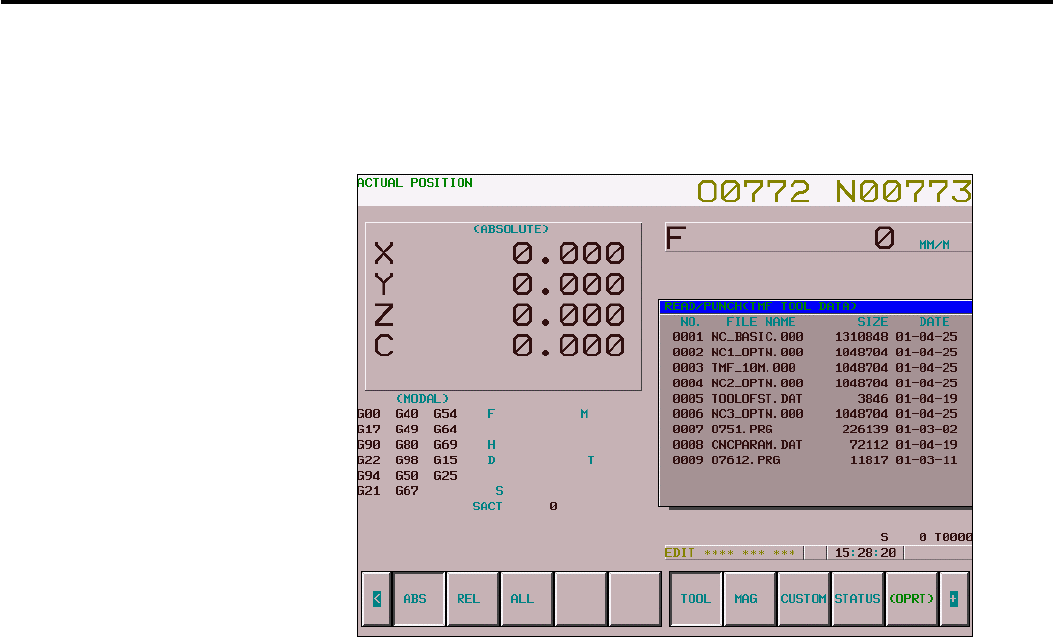

Move to the <SYSTEM> screen and press soft key [ALL IO].
Press the continuous menu key some times until the above screen is
displayed.
To press the following key, tool management data are possible to
input/output.
• soft key [TOOL] tool management data
• soft key [MAG] magazine management data
• soft key [CUSTOM] name data of the customizing data
• soft key [STATUS] name data of the tool life state
To output to an external device, use the format for new registration.
To output to the memory card (I/O device number = 4), use the following
file names.
‘TOOL-MNG.DAT’ Tool management data table
‘MAGAZINE.DAT’ Magazine management data table
‘CUSTOMIZ.DAT’ name data of customizing data
‘STATUS.DAT’ name data of tool life state
