FS16i/18i/21i - TB/MA/MB Additional Manual Page 79

Additional Manual
FANUC Series 16i/18i/21i-MA/MB/TB TOOL MANAGEMENT FUNCTION A-78614EN
2002.08.08 Edition 04
79
Tool skip signal TLSKP <G048#5>
TLSKP1 to 4 <G329#0 to #3>
[Classification] Input signal
[Function] A tool which has not reached its lifespan is changed by this signal. This
signal is used when a tool is broken.
[Operation] When the signal is set to "1", the control unit operates as follows:
•
••
• The state of the current tool becomes "4" (tool is broken), and it is
excluded from tool life management.
•
••
• If the current tool is the last tool with the same type number, the tool
change signal (TLCH<F064#0>) is set to "1".
•
••
• After the operation of tool skip, the tool skip completion signal
(TLSKF<F315#0>) is set to "1".
•
••
• Selects the next tool for which a skip is specified with the next T code.
Tool skip completion signal TLSKF <F315#0>
TLSKF1 to 4 <F329#0 to #3>
[Classification] Output signal
[Function] Reports that the tool skip signal is received.
[Output condition] The signal is set to "1" when:
•
••
• The tool skip signal (TLSKP) is set to "1" and the operation of tool
skip ends. When the current tool is excluded from tool life
management, the operatioin of tool skip is not executed, but the tool
skip completion signal is set to "1".
The signal is set to "0" when:
•
••
• The tool skip signal is set to "0".

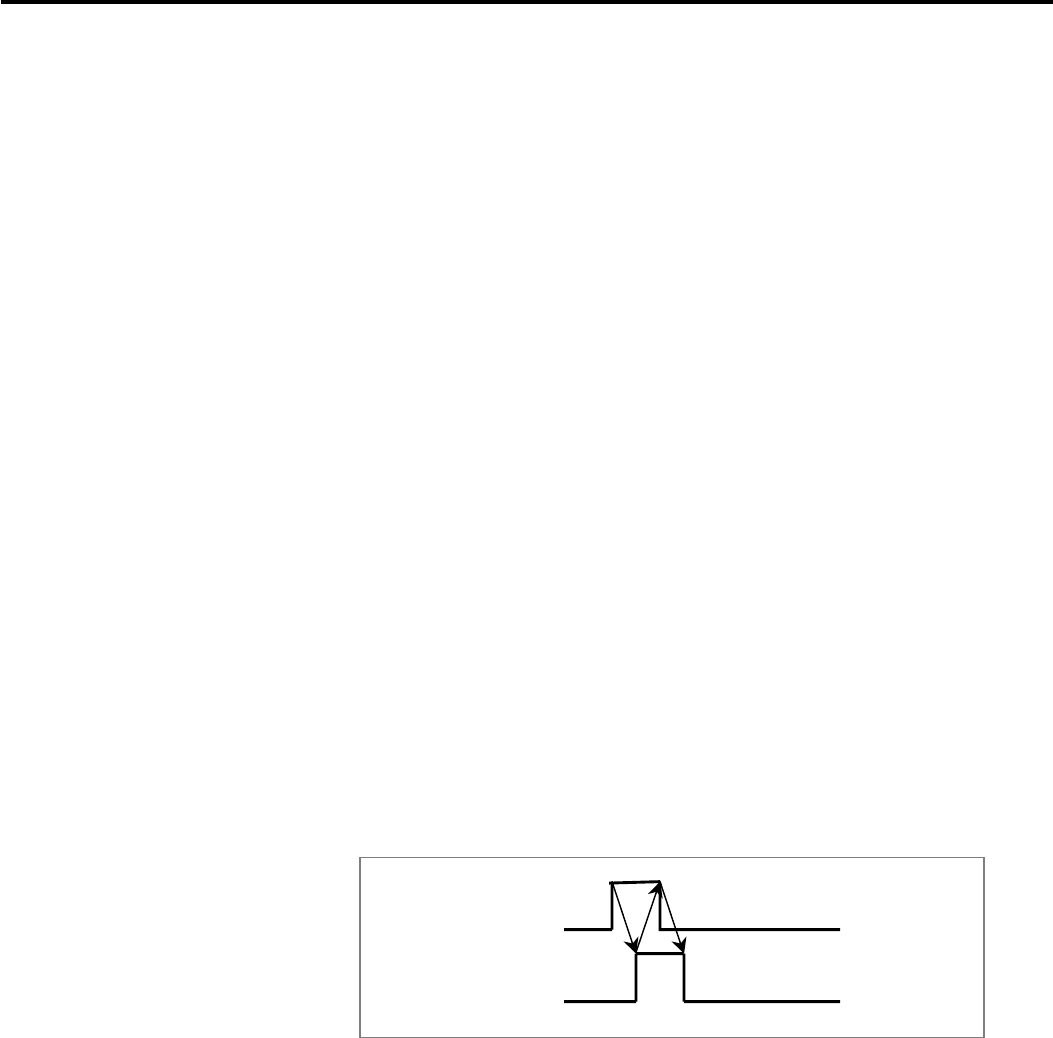

Tool skip signal
TLSKP<G048#5>
Tool skip
completion signal
TLSKF<F315#0>
