FS16i/18i/21i - TB/MA/MB Additional Manual Page 73

Additional Manual
FANUC Series 16i/18i/21i-MA/MB/TB TOOL MANAGEMENT FUNCTION A-78614EN
2002.08.08 Edition 04
73
In the tool management data edit mode, the following key operations are
added to the key operation of the above-mentioned.
<INPUT> The value input by number key is actually written.
soft key [CLEAR]
[CURDAT] clear the tool management data number at the cursor
position
[ALL] clear the tool management data number at the magazine
and the spindle/wait position on the screen now
soft key [END] exit the tool management data edit mode
When the data is edited, the tool management data number blinks. This data
is removed from the search object of the next tool. And, in this time, this
data can't be edited through the window of PMC and FOCAS1. This state
continues until the end of tool management data edit mode.
The following 5 kinds of data is also possible the input by the soft key.

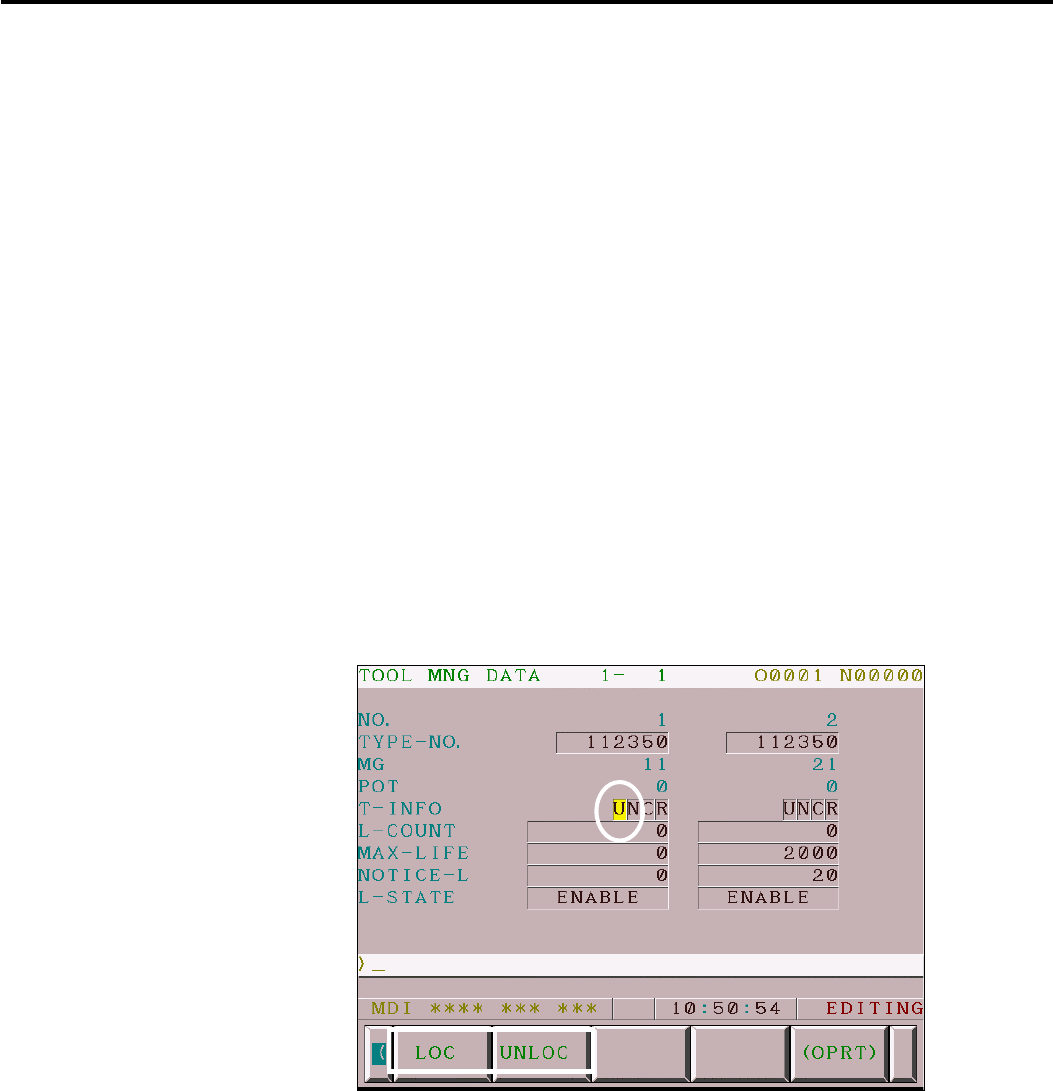

• Tool information (LOC)
Data access invalid ( L ) / possible ( U ) can be set.
