FS16i/18i/21i - TB/MA/MB Additional Manual Page 46

Additional Manual
FANUC Series 16i/18i/21i-MA/MB/TB TOOL MANAGEMENT FUNCTION A-78614EN
2002.08.08 Edition 04
46

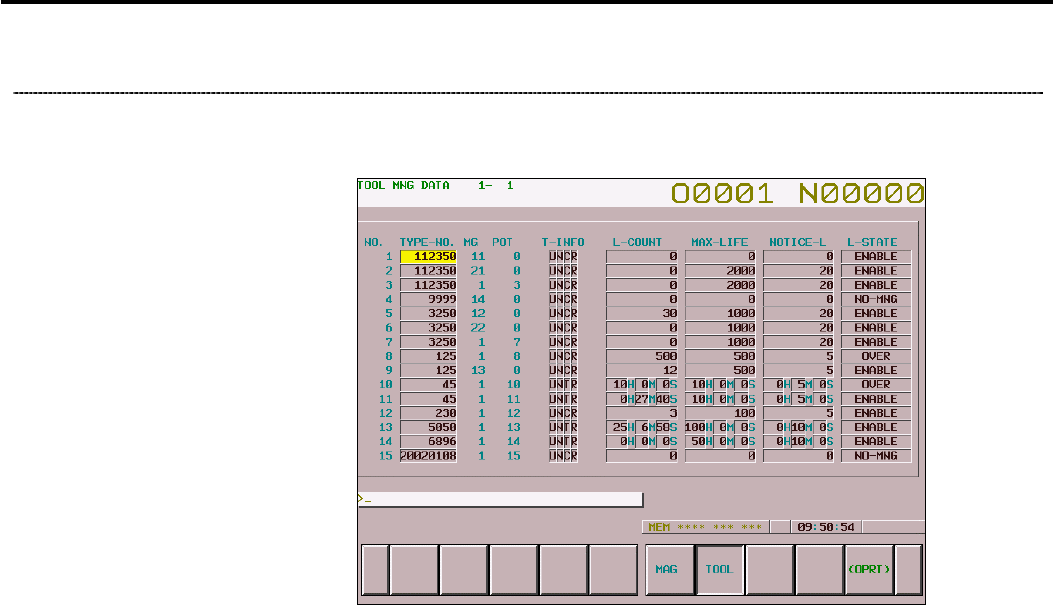

Tool Management Data Table (Tool life information)
Display the information related to the tool life.
Display items
NO. : Data number of the tool management data. This value cannot
be set from this screen.
TYPE-NO. : Tool type number.
The value of 0 to 99,999,999 can be set.
MG : Magazine number. This value cannot be set from this screen.
POT : Pot number. This value cannot be set from this screen.
T-INFO : Sequentially from the left, the following 4 kinds of value can
be set.
Data access state : lock state(L) / unlock state(U)
Tool type : large diameter tool(B) / normal type tool(N)
Life count type : use time(T) / count(C)
Tool management data : data effective(R) / invalid(-)
(note) The data access state and the large diameter tool
depend on MTB's specification.
L-COUNT : Tool life counter.
The value of 0S to 999H59M59S / 0 to 99,999,999 counts can
be set.
MAX-LIFE : The maximum value of tool life.
The value of 0S to 999H59M59S / 0 to 99,999,999 counts can
be set.
NOTICE-L : The value of the previous notice life.
The value of 0S to 999H59M59S / 0 to 99,999,999 counts can
be set.
L-STATE : The present state of the tool.
4 status, NO-MNG ( 0 ), ENABLE ( 1, 2 ), OVER ( 3 ) and
DAMAGE ( 4 ), are displayed.
The figure in () means the data value when data is input from
MDI.
