SERIES 16/18/160/180/MODEL C Maintenance manual Page 355

Maintenance manual
B–62755EN/01
8.TROUBLESHOOTING
341

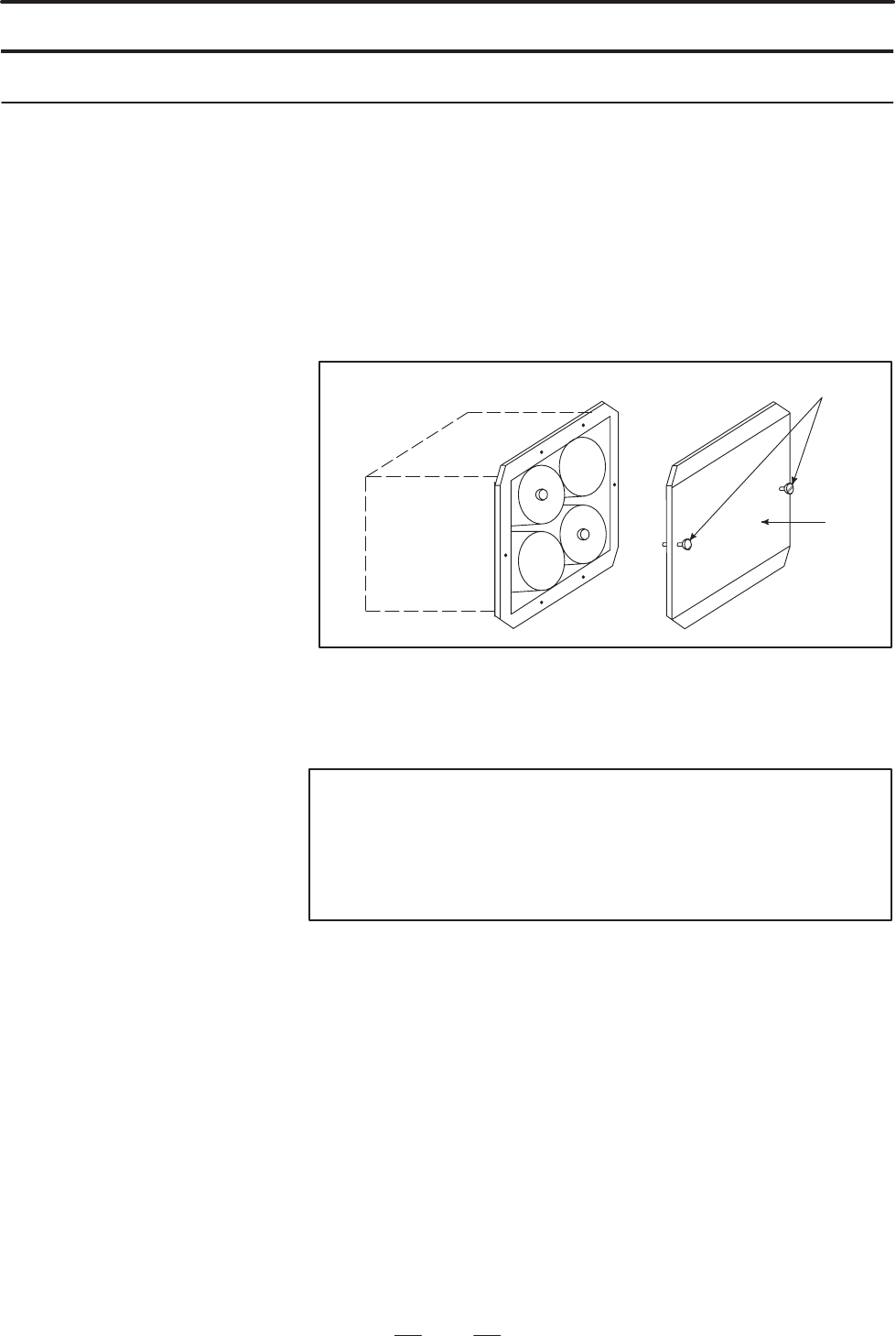

Procedure for replacing batteries for absolute pulse coder (separate type pulse coder)
1 Prepare 4 alkaline batteries (UM–1type) commercially available in
advance.
2 Turn machine (CNC) power ON.
3 Loosen screws on the battery case to remove the cover. For placement
of the battery case, refer to the machine tool builder’s manual.
4 Replace the batteries in the case. Insert 2 batteries each in the opposite
direction as illustrated below.
Screw
Cover
5 After replacement, install the cover.
6 Turn machine (CNC) power OFF
CAUTION
Replace the batteries for absolute pulse coder when NC
power is ON.
Replacing the batteries with power OFF causes the
absolute position stored in memory to be lost.
