B–62755EN/01

8.TROUBLESHOOTING

367

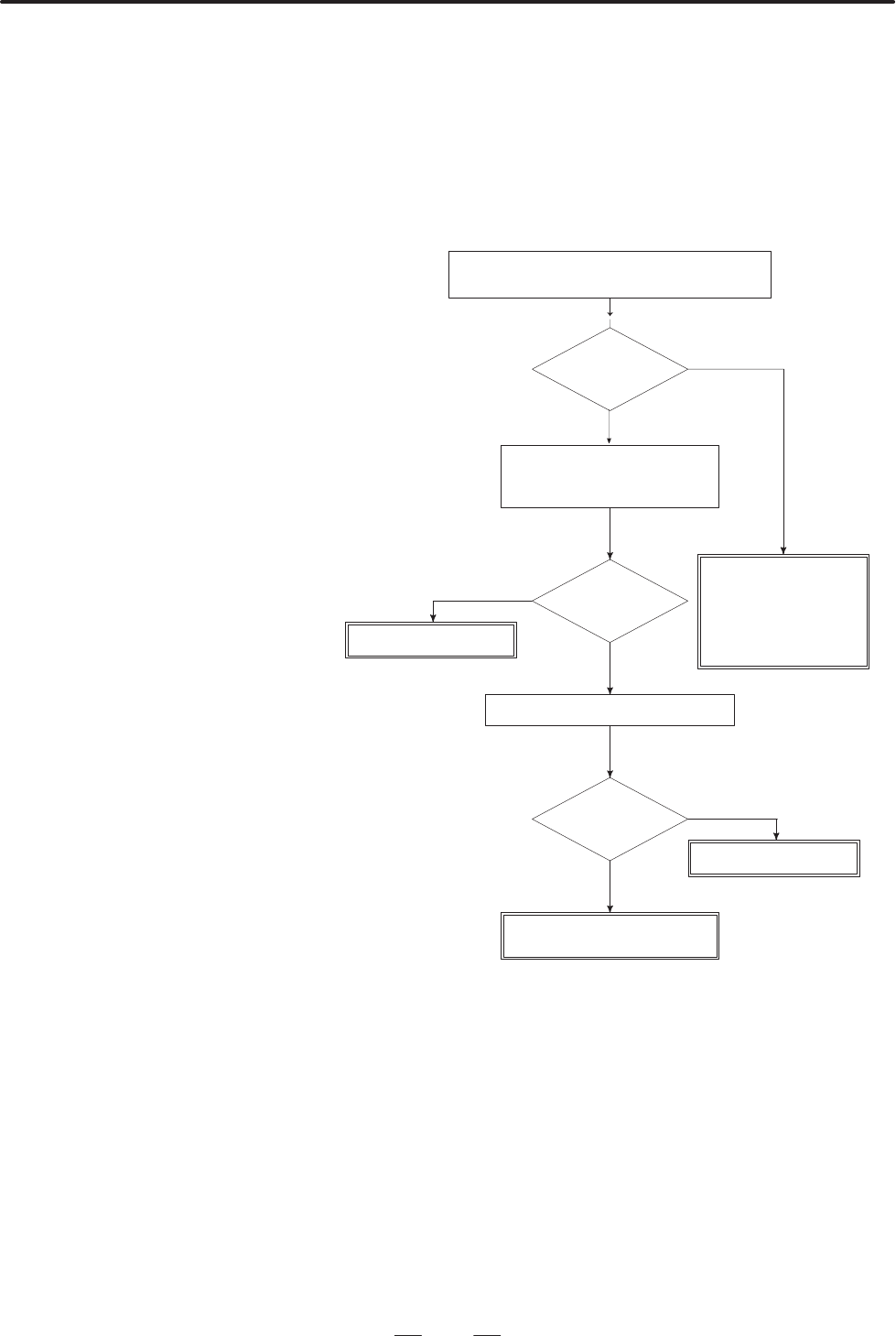

Spindle speed changes abnormally due to load.

Confirm the follow-

ing parameter :

Check whether spindle speed is constant by view

of the speed meter on CRT.

Constant ?

Heavy cutting?

Is a heavy cutting being per-

formed ? Confirm spindle load

on CRT.

Reduce cutting condition

PRM 4911

PRM 4912

PRM 4913

PRM 4914

Doesn’t the cutting tool worn ?

Worn ?

Spindle servo unit is faulty

Spindle motor is faulty

Replace tool

YES

PRM 4911 : A ratio of spindle speed at which actual spindle speed is

regarded as arrived at a command spindle speed.

PRM 4912 : Spindle speed fluctuation ratio up to which the spindle

speed fluctuation detection alarm is not issued.

PRM 4913 : Spindle speed fluctuation that is not regarded as the spindle

speed fluctuation alarm.

PRM 4914 : Time when a spindle speed changed to when spindle speed

fluctuation detection is started.

8.26

ALARM 704 (SPINDLE

SPEED

FLUCTUATION

DETECTION ALARM)

Remedies
