Linear Motor Lis Descriptions Page 146

Descriptions
2.MECHANICAL DESIGN HANDLING, DESIGN, AND ASSEMBLY B-65382EN/02
- 124 -

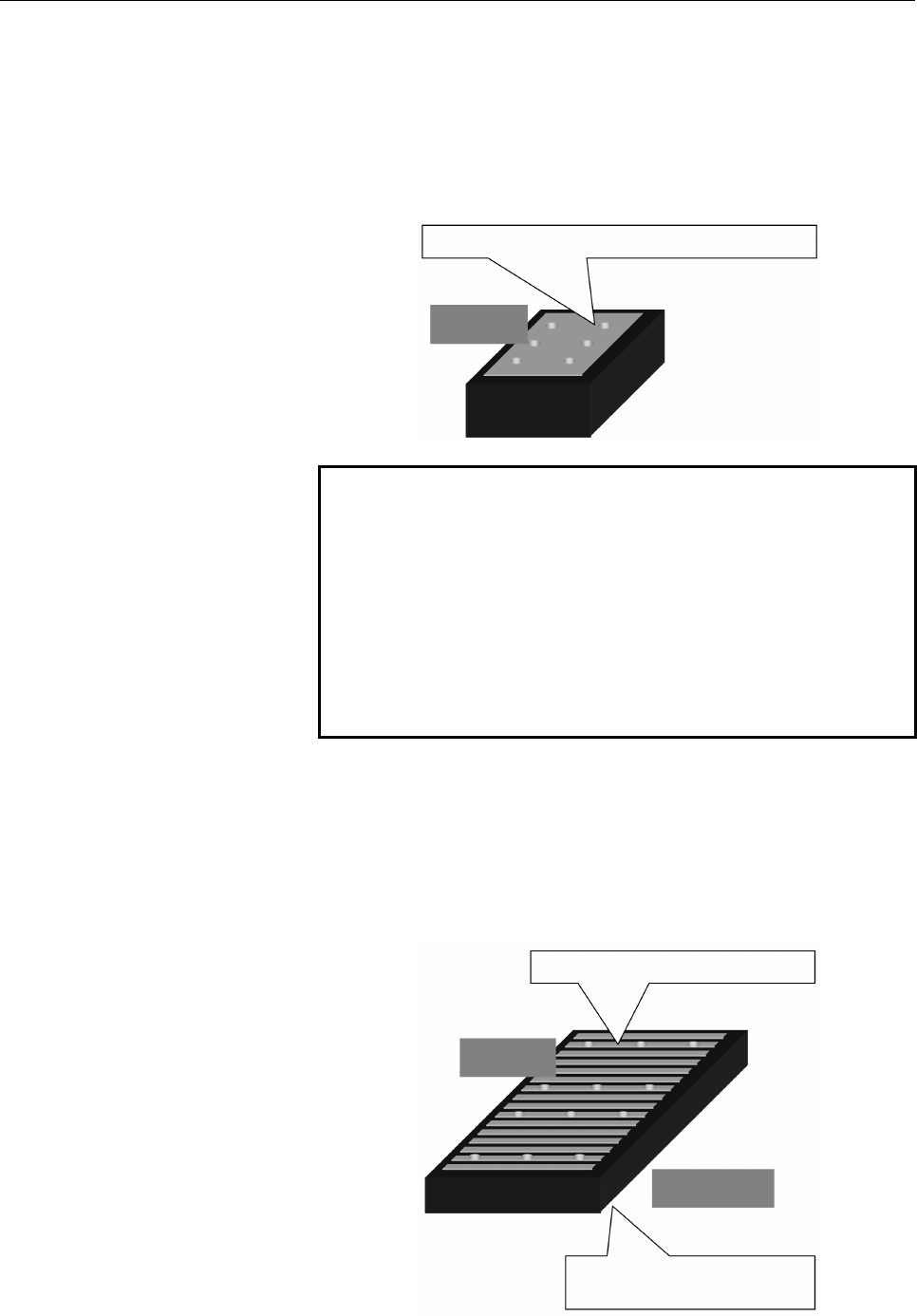

LiS 300A1/4, LiS 600A1/4, and LiS 900A1/4
Mount the metallic side provided with screw holes onto the machine.
Insert screws through the screw holes from the machine side and
fasten the coil slider. On the opposite side, no screw hole is provided.
The opposite side is coated with black resin (coating compound) and
is to face the magnet plate.
Mount the metallic side provided with screw holes onto the machine.
Machine side
NOTE
For forced cooling (air cooling or water cooling) of
LiS 300A1/4, LiS 600A1/4, and LiS 900A1/4, an
optional cooling plate is required. The cooling plate
is to be inserted between the table and coil slider.
In mechanical design, consider the thickness of the
cooling plate. For the specification of the cooling
plate, see Part I, "SPECIFICATIONS". For the
method of mounting the cooling plate, see Chapter
3, "ASSEMBLY" in this part.
LiS 1500B1/4 or models of larger sizes
Mount the metallic side provided with screw holes onto the machine.
Insert screws through the screw holes from the machine side and
fasten the coil slider. On the opposite side, no screw hole is provided.
The opposite side is coated with black resin (coating compound) and
is to face the magnet plate.
Rear side: Faces the magnet plate and coated
with black resin.
Machine side
Magnet plate side
Mount the metallic side onto the machine.
