3.ASSEMBLY HANDLING, DESIGN, AND ASSEMBLY B-65382EN/02
- 168 -

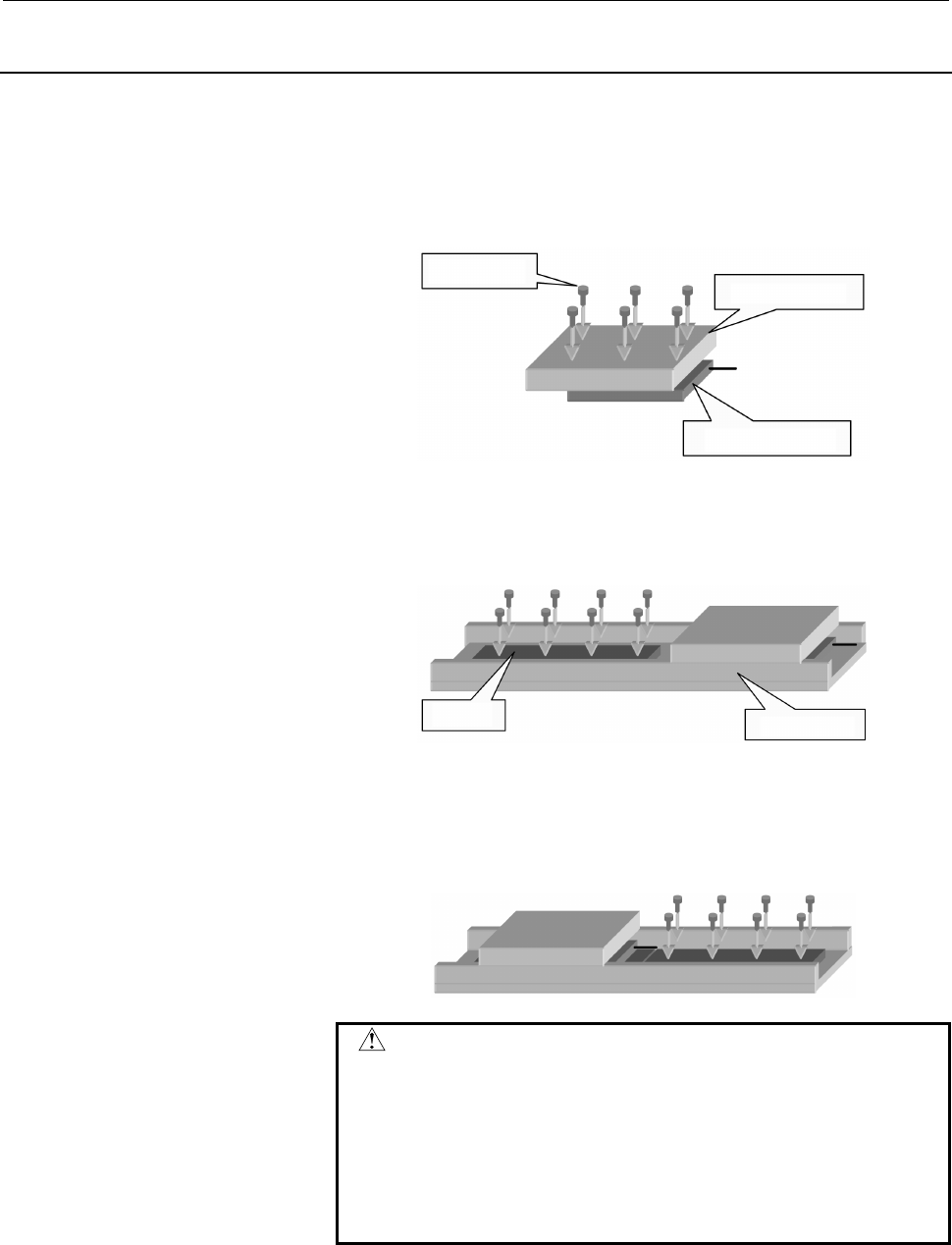

3.1.2 Procedure #2 for Mounting a Linear Motor on the Machine
If the total length of magnet plates for one axis is greater than the total
length of a coil slider by a factor of 2 or more, the linear motor can be
mounted using the procedure below.
<1> Secure a coil slider to the movable table.
Securing screws
Coil slider
Movable table
<2> Mount a magnet plate on a half side of the axis, then mount the
movable table on the other half side where no magnet plate is
mounted.
Magnet plate
Linear guide
<3> Shift the movable table onto the magnet plate, then mount a
remaining magnet plate. Note that when the movable table is
shifted, the movable table is pulled toward the magnet plate by
magnetic attraction.
CAUTION
Powerful magnetic attraction is exerted at all times.
When securing magnet plates and a coil slider, be
sure to securely tighten all screws. Do not tighten
the screws temporarily. Until the magnet plates
have been secured, do not remove the tin plate
and corrugated board attached onto the top face of
each magnet plate.
