Linear Motor Lis Descriptions Page 25

Descriptions
B-65382EN/02 SPECIFICATIONS 1.OVERVIEW
- 3 -
1 OVERVIEW
Parts supplied by FANUC

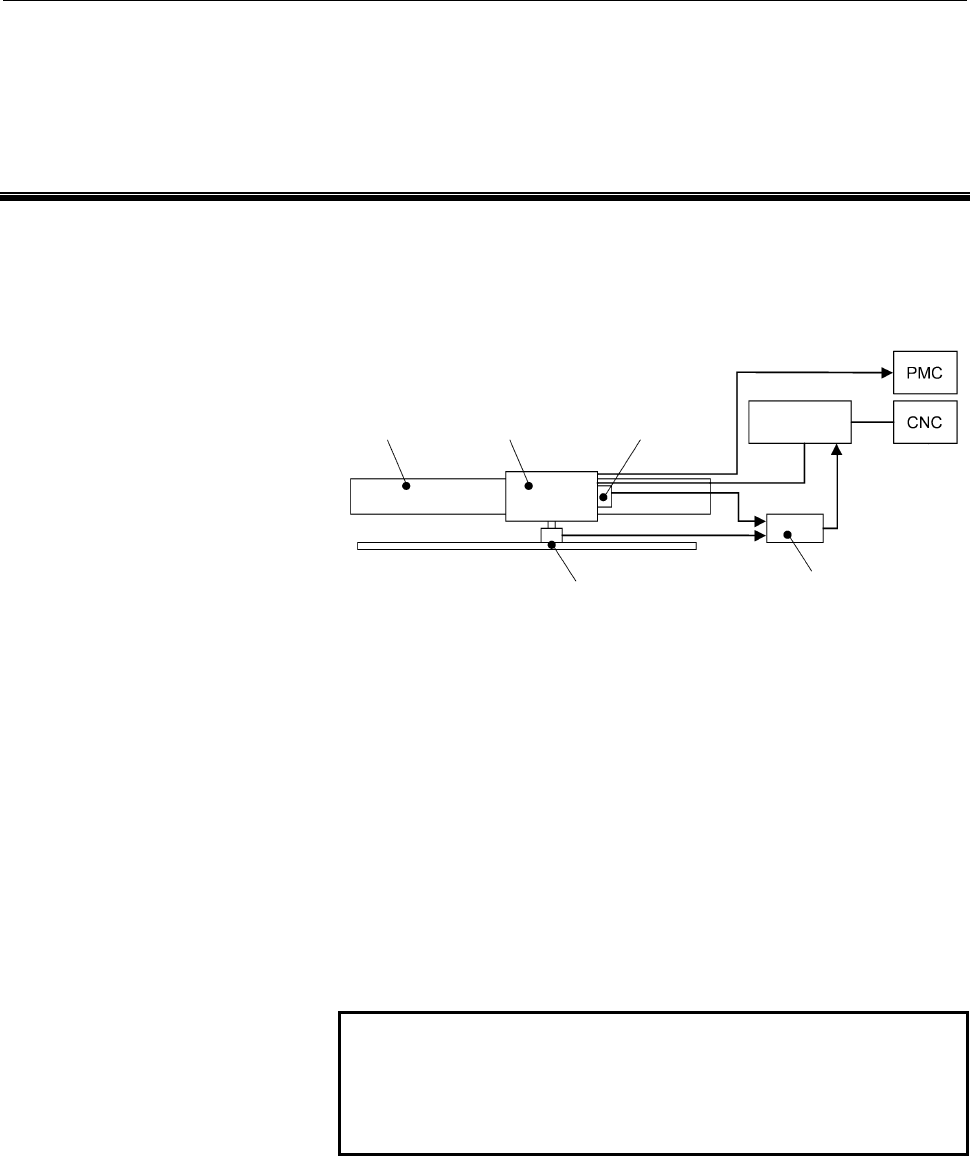

The following shows a typical system configuration of the FANUC
Linear Motor L
iS series.
Power line
Thermostat line
Servo amplifier
Magnet plate Coil slider
Magnetic pole sensor
Linear encoder
Position detection circuit
FSSB
FANUC supplies the following parts according to the system
configuration of your machine:
• CNC system (CNC, PMC, amplifier, and others)
• Coil slider
• Magnet plate
• Cooling plate for the L
iS 300A1/4, LiS 600A1/4, and LiS
900A1/4
(Other models have a coil slider containing a cooling tube.)
• Magnetic pole sensor
• Position detection circuit
• Signal cables (such as a cable between the position detection
circuit and amplifier)
NOTE
Some parts may be unnecessary depending on the
system configuration of the machine. For details,
see Part II,"CONFIGURATIONS AND
SELECTION."
