Linear Motor Lis Descriptions Page 77

Descriptions

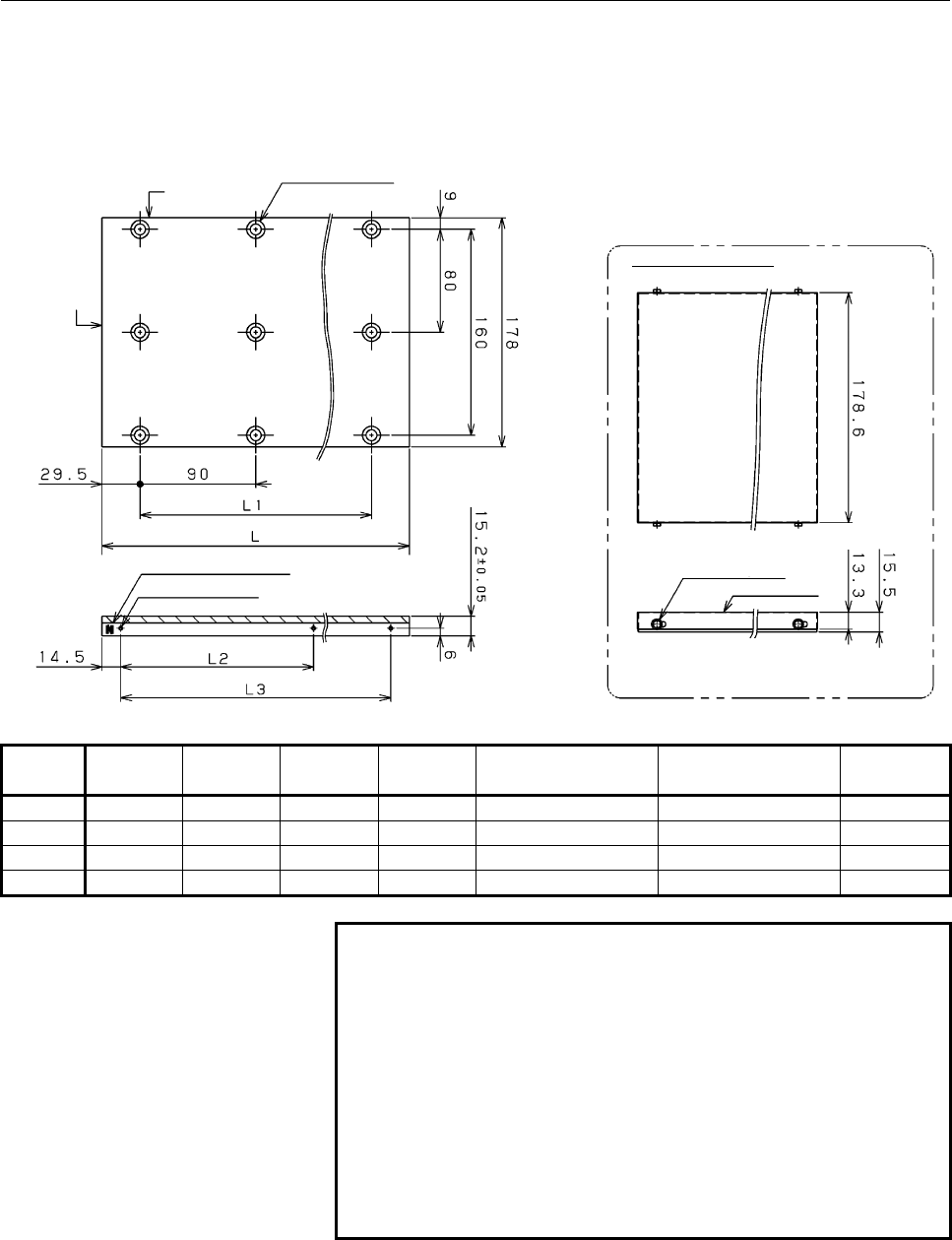

B-65382EN/02 SPECIFICATIONS 2.SPECIFICATIONS
- 55 -
A06B-0440-B224#000x (Length 240mm)
A06B-0440-B225#000x (Length 420mm)
A06B-0440-B227#000x (Length 600mm)
A06B-0440-B228#000x (Length 960mm)
DATUM
PLANE
MARKING "N" (ONLY ON INDICATED SIDE)
A
- 8.5-DIA THROUGH
14-DIA COUNTERBORE,
DEPTH: 9
WITH COVER ATTACHED
DATUM
PLANE
HEXAGONAL-HEAD BOLT
WITH WASHER
B-M3×0.5, DEPTH: 7
(EQUIDISTANT
PITCH)
NOTE) The screws (M3 x 0.5) must be tightened with a
torque of 0.6 Nm.
STAINLESS COVER
Length:
L [mm]
Length:
L1 [mm]
Length:
L2 [mm]
Length:
L3 [mm]
Number of through
holes: A [places]
Number of screw
holes: B [places]
Mass [kg]
B224 239 180 - 210 9 4 4.5
B225 419 360 - 390 15 4 8
B227 599 540 270 570 21 6 11.5
B228 959 900 450 930 33 6 18
NOTE
These magnet plates are dedicated to the
LiS 3000B2/2, LiS 3000B2/4, LiS 4500B2/2HV,
LiS 4500B2/2, LiS 6000B2/2HV, LiS 6000B2/2,
LiS 6000B2/4, LiS 7500B2/2HV, LiS 7500B2/2,
LiS 9000B2/2, and LiS 9000B2/4. They cannot be
used for other models. Use the above five types of
magnet plates in combination according to the
required axis length (track length).
