2.SPECIFICATIONS SPECIFICATIONS B-65382EN/02
- 58 -

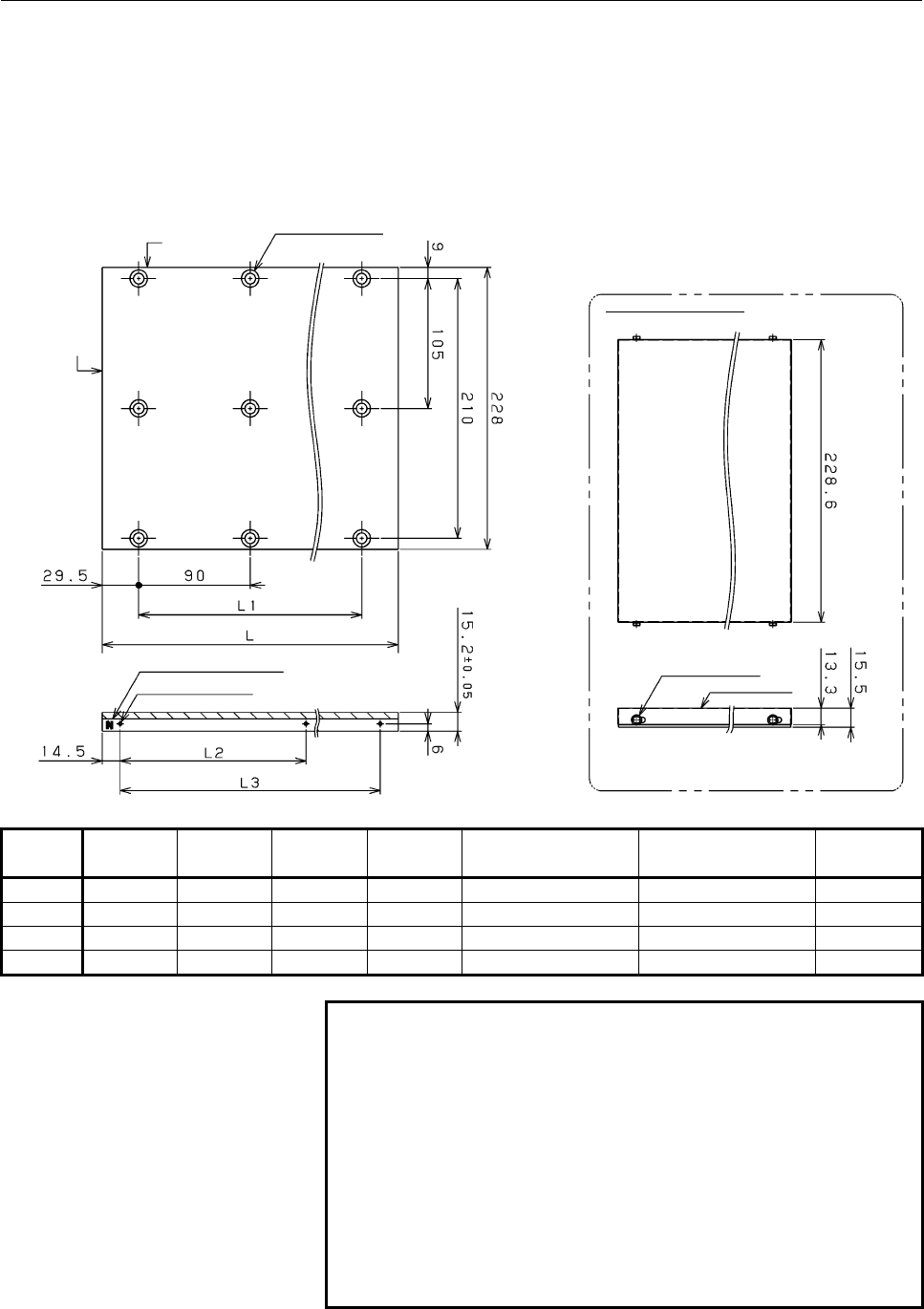

For LiS 9000C2, LiS 11000C2, and LiS 15000C2 (Magnet plate C2)
A06B-0440-B324#000x (Length 240mm)
A06B-0440-B325#000x (Length 420mm)
A06B-0440-B327#000x (Length 600mm)
A06B-0440-B328#000x (Length 960mm)
DATUM
PLANE
MARKING "N" (ONLY ON INDICATED SIDE)
A
- 8.5-DIA THROUGH
14-DIA COUNTERBORE,
DEPTH: 9
WITH COVER ATTACHED
DATUM
PLANE
HEXAGONAL-HEAD BOLT
WITH WASHER
B-M3×0.5, DEPTH: 7
(EQUIDISTANT
PITCH)
NOTE) The screws (M3 x 0.5) must be tightened with a
torque of 0.6 Nm.
STAINLESS COVER
Length:
L [mm]
Length:
L1 [mm]
Length:
L2 [mm]
Length:
L3 [mm]
Number of through
holes: A [places]
Number of screw
holes: B [places]
Mass [kg]
B324 239 180 - 210 9 4 6
B325 419 360 - 390 15 4 10
B327 599 540 270 570 21 6 15
B328 959 900 450 930 33 6 23
NOTE
These magnet plates are dedicated to the
LiS 9000C2/2HV, LiS 9000C2/2,
LiS 11000C2/2HV, LiS 11000C2/2,
LiS 15000C2/2, and LiS 15000C2/3,
LiS 15000C2/3HV. They cannot be used for other
models. Use the above four types of magnet plates
in combination according to the required axis
length (track length).
