2.4 EXTERNAL DIMENSIONS
2.4.1 Coil Slider

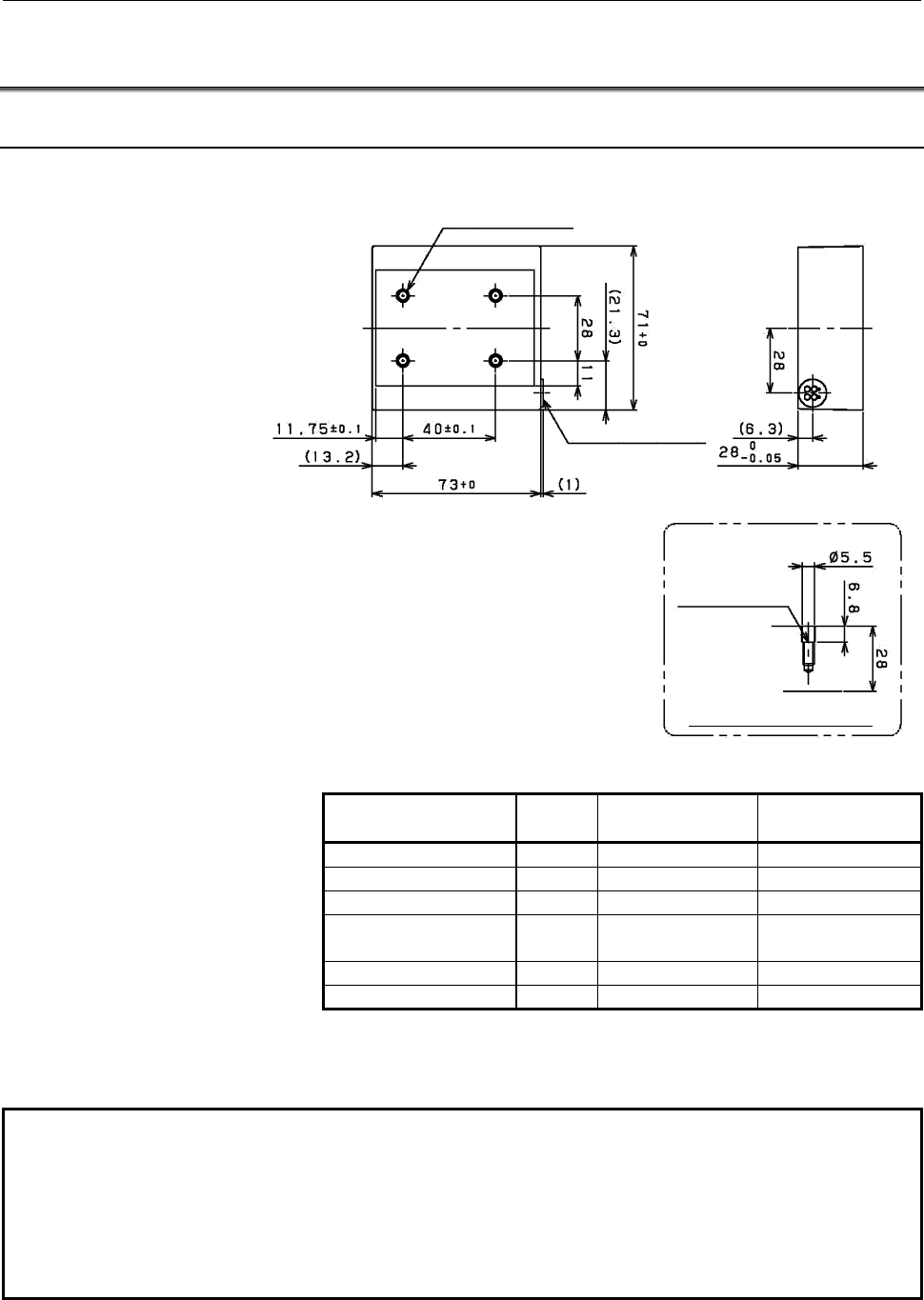

LiS 300A1/4 (A06B-0441-B200#0000)
4-M5×0.8, DEPTH: 10
POWER LINE,
THERMOSTAT LINE
M5×0.8, DEPTH: 10
DETAILS OF TAPPED HOLE
Line type
Sheath
color
Conductor cross
section (mm
2
)
Average outside
diameter (mm)
Power line (U phase) Red 2.0 2.6
Power line (V phase) White 2.0 2.6
Power line (W phase) Black 2.0 2.6
Power line (ground)
Green /
Yellow
2.0 2.6
Thermostat line 1 Black 0.35 1.28
Thermostat line 2 Black 0.35 1.28
* The power and thermostat lines are about 350 mm long.
* No crimp terminal is supplied with any power or thermostat line.
* The thermostat lines are nonpolarized.
NOTE
1 To bring a corner of the coil slider into intimate contact with a peripheral part,
recess the corner of the part by 0.2 to 0.3.
2 This drawing contains no magnetic pole sensor. To use an incremental linear
encoder, a magnetic pole sensor is required. For the outline drawings of magnetic
pole sensors, see the subsection “Magnetic Pole Sensor” below.
3 Always read and understand Part III, “HANDLING, DESIGN, AND ASSEMBLY,”
before handling or installing the motor.
