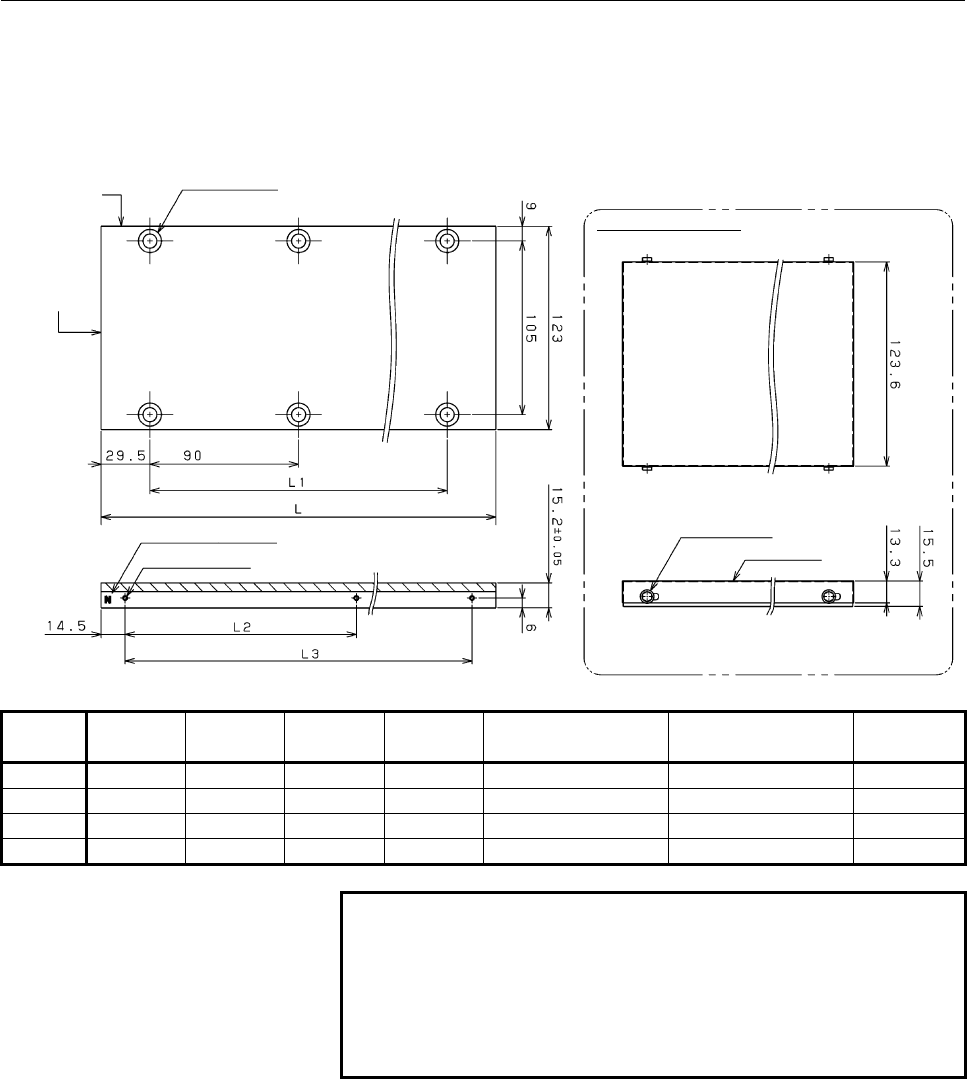

B-65382EN/02 SPECIFICATIONS 2.SPECIFICATIONS
- 57 -
A06B-0440-B314#000x (Length 240mm)
A06B-0440-B315#000x (Length 420mm)
A06B-0440-B317#000x (Length 600mm)
A06B-0440-B318#000x (Length 960mm)
DATUM
PLANE
MARKING "N" (ONLY ON INDICATED SIDE)
A
- 8.5-DIA THROUGH
14-DIA COUNTERBORE, DEPTH: 9
WITH COVER ATTACHED
DATUM
PLANE
HEXAGONAL-HEAD BOLT
WITH WASHER
B-M3×0.5, DEPTH: 7
(EQUIDISTANT
PITCH)
NOTE) The screws (M3 x 0.5) must be tightened with a torque of
0.6 Nm.
STAINLESS COVER
Length:
L [mm]
Length:
L1 [mm]
Length:
L2 [mm]
Length:
L3 [mm]
Number of through
holes: A [places]
Number of screw
holes: B [places]
Mass [kg]
B314 239 180 - 210 6 4 3
B315 419 360 - 390 10 4 5
B317 599 540 270 570 14 6 7.5
B318 959 900 450 930 22 6 12
NOTE
These magnet plates are dedicated to the
LiS 3300C1/2. They cannot be used for other
models. Use the above five types of magnet plates
in combination according to the required axis
length (track length).
