B-65382EN/02 SPECIFICATIONS 2.SPECIFICATIONS
- 71 -

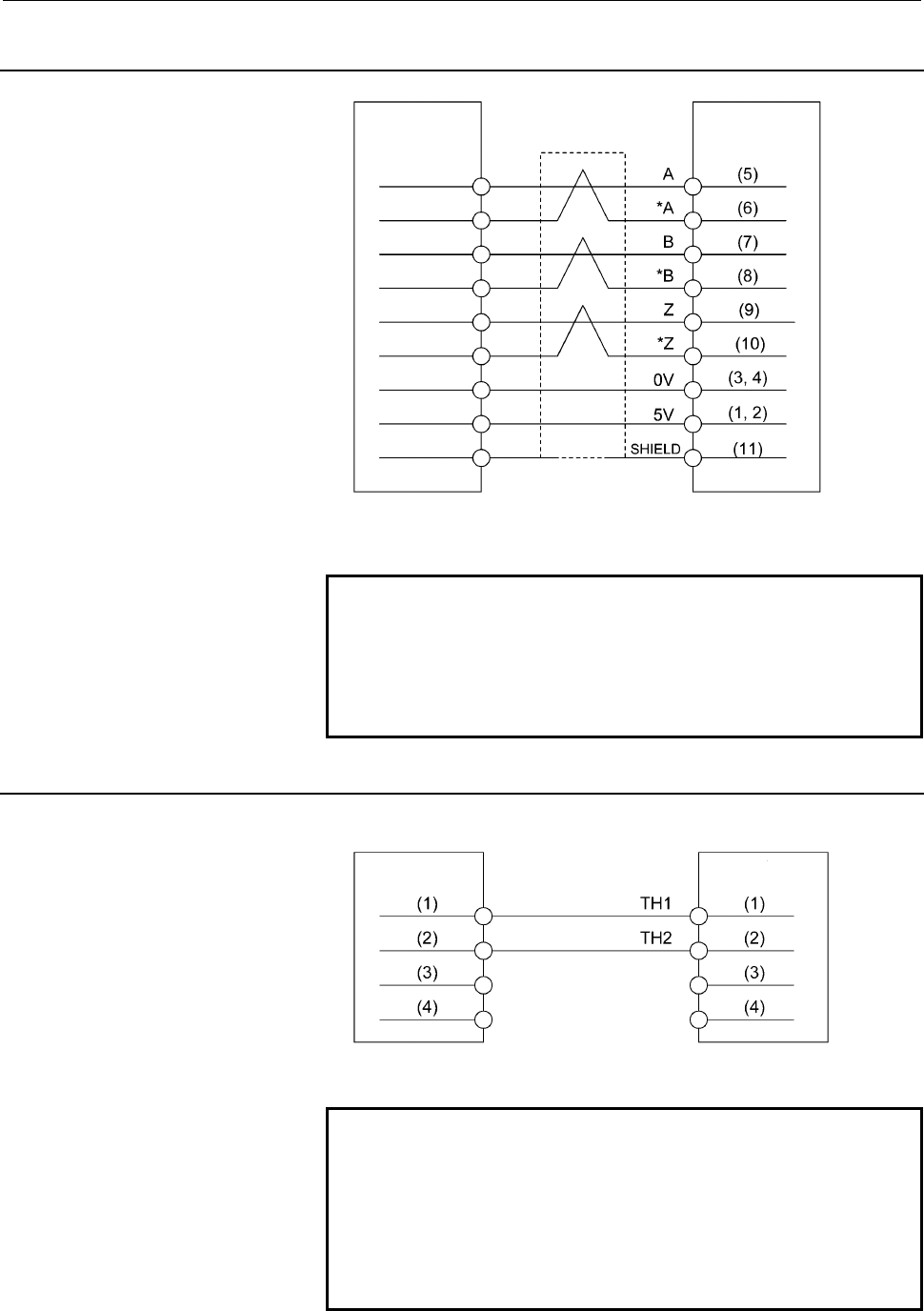

2.5.6 Cable K5
Connector: RM15WTP-12P-(dia)
Manufacturer: Hirose Electric Co., Ltd.
Linear encoder Position detection circuit
NOTE
Use the cable supplied with the linear encoder or
specified by the linear encoder manufacturer. Specify
dia (mm) at the end of the connector specification
according to the diameter of the cable to be used.
The dia value is between 6 to 9, however.
2.5.7 Cable K6
LiS 1500B1/4 and up
Connector: KMC9BPT-4P(01)
Manufacturer: Hirose Electric Co., Ltd.
Coil slider Cable K6
Not used
Not used
NOTE
The above connector is for the L
iS 1500B1/4 to
LiS 17000C3/2. Prepare the cable. For the LiS
300A1/4 to LiS 900A1/4, the thermostat line wire
juts out the coil slider. Connect the lead wire to the
PMC.
