2.SPECIFICATIONS SPECIFICATIONS B-65382EN/02
- 46 -

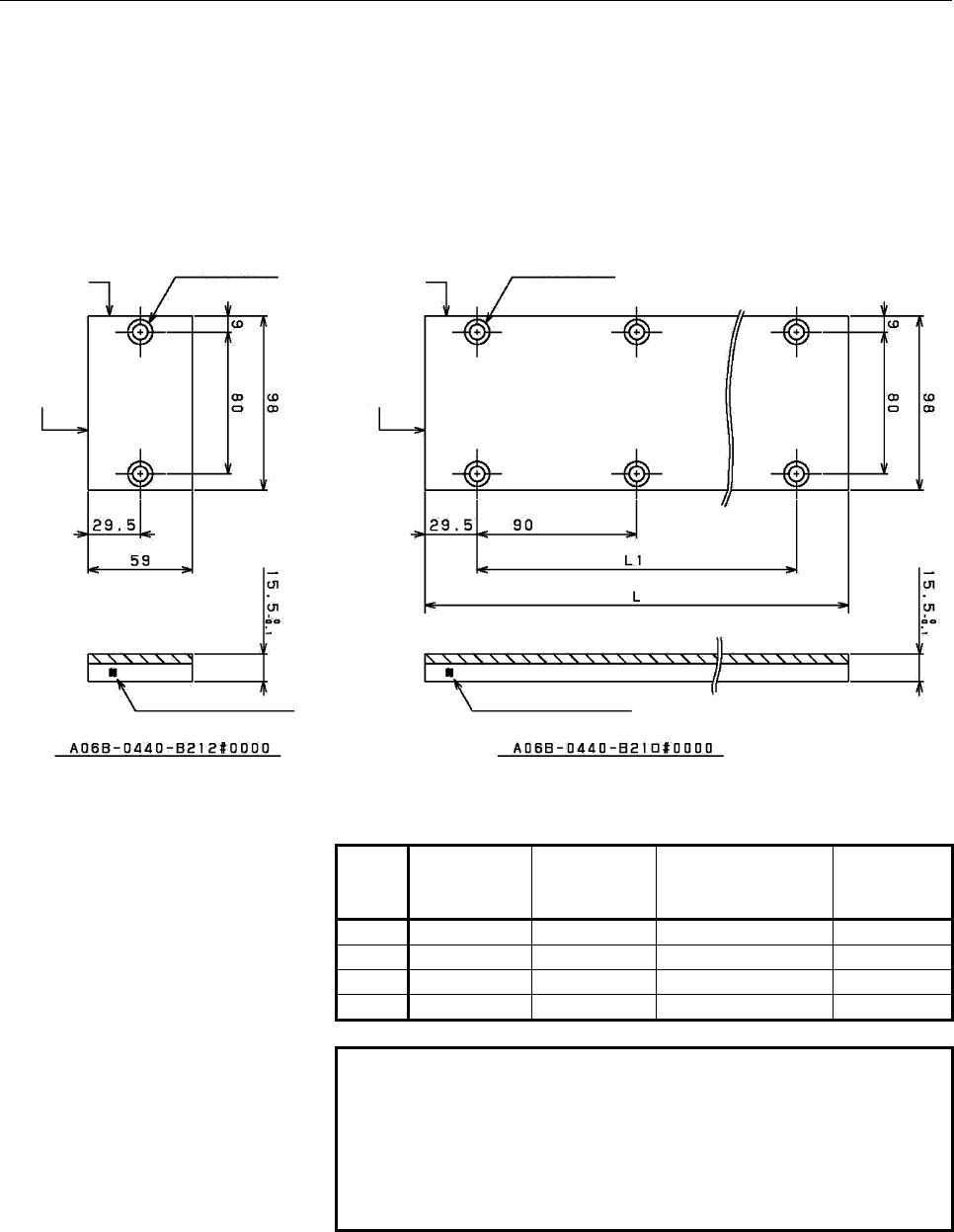

For LiS 1500B1 (Magnet plate B1)
A06B-0440-B212#0000 (Length 60mm)
A06B-0440-B214#0000 (Length 240mm)
A06B-0440-B215#0000 (Length 420mm)
A06B-0440-B217#0000 (Length 600mm)
A06B-0440-B218#0000 (Length 960mm)
DATUM
PLANE
MARKING "N" (ONLY ON INDICATED SIDE)
2 - 8.5-DIA THROUGH
14-DIA COUNTERBORE,
DEPTH: 9
DATUM PLANE
DATUM
PLANE
DATUM
PLANE
A
- 8.5-DIA THROUGH
14-DIA COUNTERBORE, DEPTH: 9
MARKING "N" (ONLY ON INDICATED SIDE)
MASS : 0.6Kg
(EQUIDISTANT
PITCH)
Length:
L (mm)
Length:
L1 (mm)
Number of
through holes:
A (places)
Mass (kg)
B214 239 180 6 2.5
B215 419 360 10 4.5
B217 599 540 14 6
B218 959 900 22 10
NOTE
These magnet plates are dedicated to the
LiS 1500B1/4. They cannot be used for other
models. Use the above five types of magnet plates
in combination according to the required axis
length (track length).
