B-65382EN/02 SPECIFICATIONS 2.SPECIFICATIONS
- 49 -
For LiS 9000C2, LiS 11000C2, and LiS 15000C2 (Magnet plate C2)
A06B-0440-B324#0000 (Length 240mm)
A06B-0440-B325#0000 (Length 420mm)
A06B-0440-B327#0000 (Length 600mm)
A06B-0440-B328#0000 (Length 960mm)

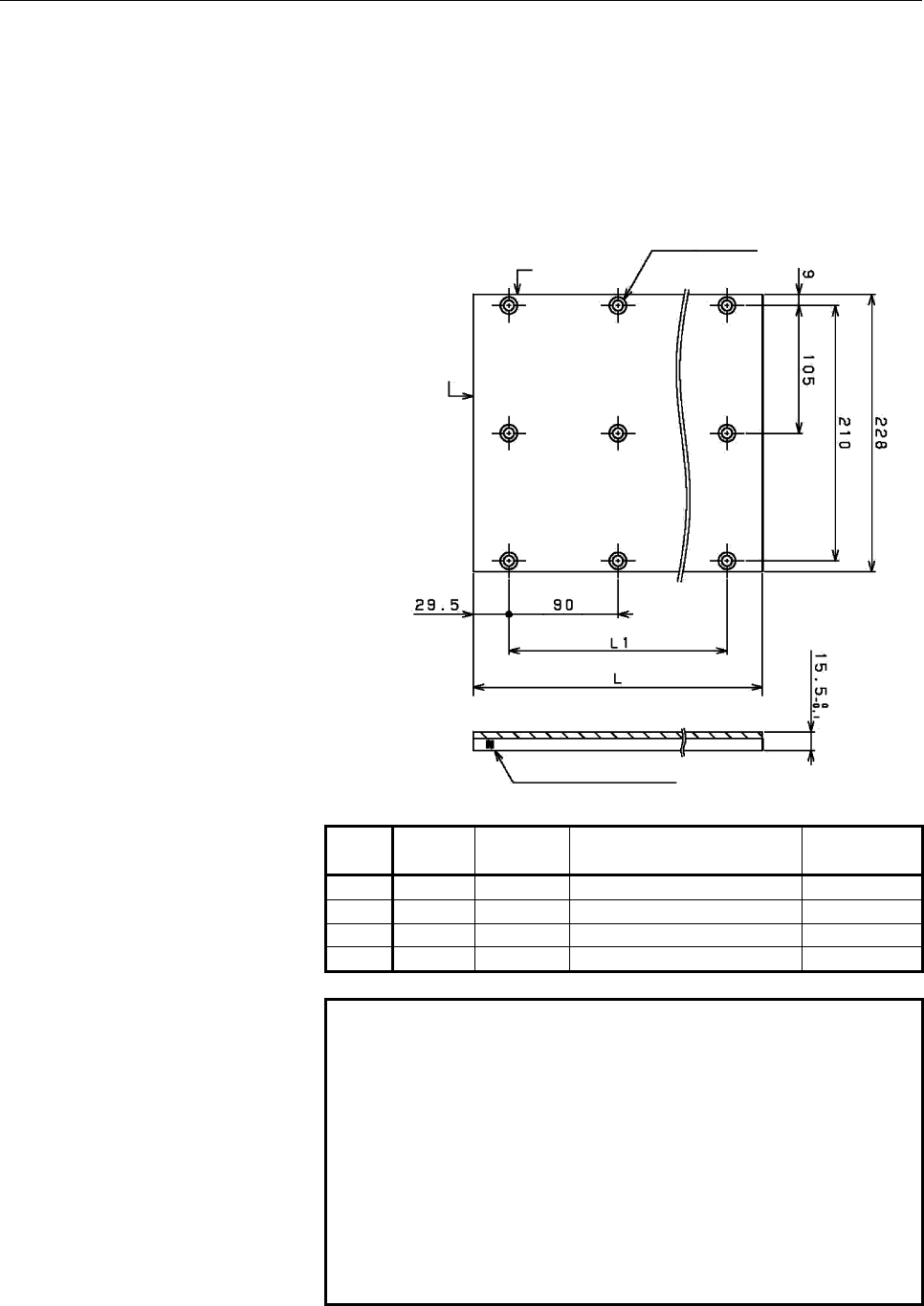

DATUM
PLANE
MARKING "N" (ONLY ON INDICATED SIDE)
A
- 8.5-DIA THROUGH
14-DIA COUNTERBORE, DEPTH: 9
DATUM
PLANE
(EQUIDISTANT
PITCH
)
Length:
L(mm)
Length:
L1(mm)
Number of through holes:
A (places)
Mass (kg)
B324 239 180 9 6
B325 419 360 15 10
B327 599 540 21 15
B328 959 900 33 23
NOTE
These magnet plates are dedicated to the
LiS 9000C2/2HV, LiS 9000C2/2,
LiS 11000C2/2HV, LiS 11000C2/2,
LiS 15000C2/2, and LiS 15000C2/3,
LiS 15000C2/3HV. They cannot be used for other
models. Use the above four types of magnet plates
in combination according to the required axis
length (track length).
