Linear Motor Lis Descriptions Page 201

Descriptions
B-65382EN/02 HANDLING, DESIGN, AND ASSEMBLY 3.ASSEMBLY
- 179 -

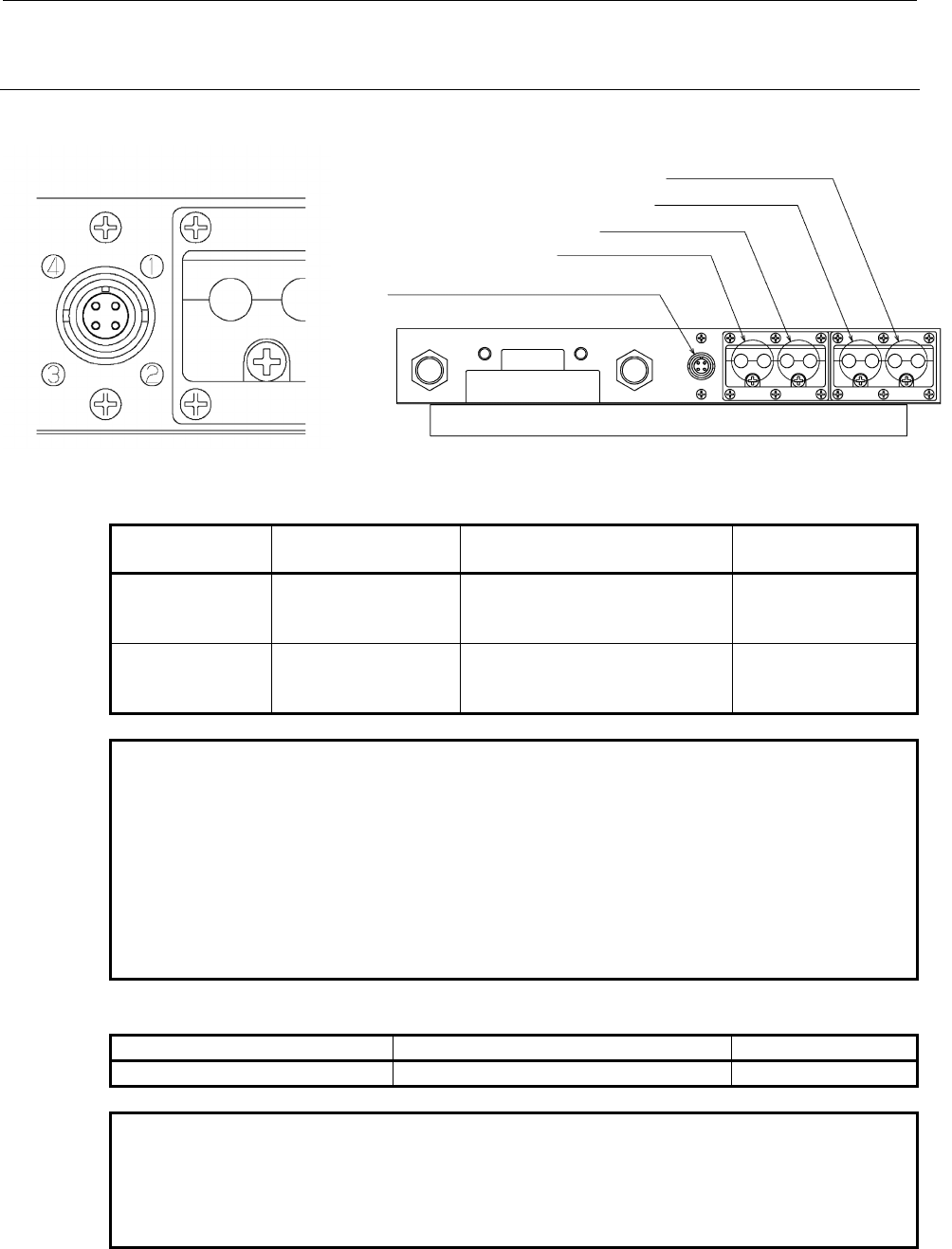

3.3.5 LiS 15000C2/2 and LiS 15000C2/3
Terminal and connector allocation
For thermostat. No polarity
applicable. (Pins 1 and 2)
Magnet plate
Power line, grounding, 2 locations
Power line, phase V, 2 locations
Power line, phase W, 2 locations
Power line, phase U, 2 locations
Pin No.
Cables usable for power lines
Model AWG
Nominal cross-sectional area
(mm
2
)
Cable diameter
NOTE
LiS 15000C2/2
UL1015 AWG#10
5.5
or
6.0
φ4.9 to φ5.2
LiS 15000C2/3
UL1015 AWG#8
8
or
10
φ6.2 to φ6.5
NOTE
1 If the diameter of a cable is not within the allowable range specified
above, the drip protection capability of the terminal is not guaranteed. Be
sure to select a cable that satisfies the diameter range specified above.
2 Bend a power line outside the terminal. If a power line is bent inside the
terminal, the drip protection capability of the terminal is not guaranteed.
3 When the coil slider is movable, be sure to use movable cables. Do not
attach a movable cable to each terminal, but attach a movable cable to a
relay terminal block in the middle.
Cable usable for the thermostat
AWG Nominal cross-sectional area (mm
2
) Cable diameter
NOTE
UL1015 AWG#23×2 0.3×2 φ4.6 to φ5.0
NOTE
1 If the diameter of a cable is not within the allowable range specified
above, the drip protection capability of the terminal is not guaranteed. Be
sure to select a cable that satisfies the diameter range specified above.
2 When the coil slider is movable, be sure to use movable cables.
