Linear Motor Lis Descriptions Page 200

Descriptions
3.ASSEMBLY HANDLING, DESIGN, AND ASSEMBLY B-65382EN/02
- 178 -

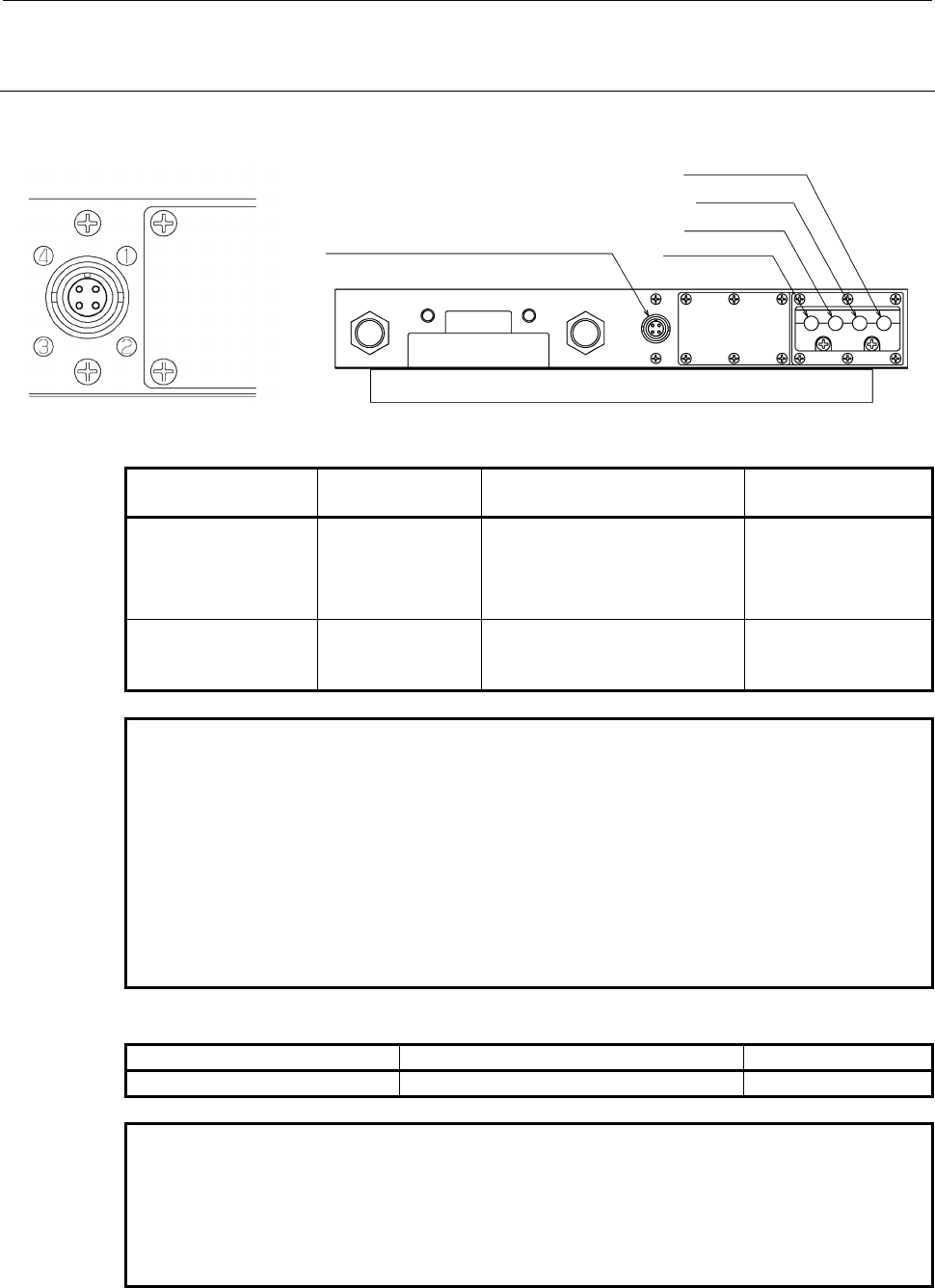

3.3.4 LiS 9000C2/2 to LiS 11000C2/2 and LiS 15000C2/3HV
Terminal and connector allocation
Power line, grounding
Power line, phase V
For thermostat. No polarity applicable.
(Pins 1 and 2)
Power line, phase W
Power line, phase U
Magnet plate
Pin No.
Cables usable for power lines
Model AWG
Nominal cross-sectional area
(mm
2
)
Cable diameter
NOTE
LiS 9000C2/2HV
L
iS 9000C2/2
L
iS 11000C2/2HV
L
iS 11000C2/2
UL1015 AWG#10
5.5
or
6.0
φ4.9 to φ5.2
LiS 15000C2/3HV
UL1015 AWG#8
8
or
10
φ6.2 to φ6.5
NOTE
1 If the diameter of a cable is not within the allowable range specified
above, the drip protection capability of the terminal is not guaranteed.
Be sure to select a cable that satisfies the diameter range specified
above.
2 Bend a power line outside the terminal. If a power line is bent inside the
terminal, the drip protection capability of the terminal is not guaranteed.
3 When the coil slider is movable, be sure to use movable cables. Do not
attach a movable cable to each terminal, but attach a movable cable to
a relay terminal block in the middle.
Cable usable for the thermostat
AWG Nominal cross-sectional area (mm
2
) Cable diameter
NOTE
UL1015 AWG#23×2 0.3×2 φ4.6 to φ5.0
NOTE
1 If the diameter of a cable is not within the allowable range specified
above, the drip protection capability of the terminal is not guaranteed.
Be sure to select a cable that satisfies the diameter range specified
above.
2 When the coil slider is movable, be sure to use movable cables.
