Linear Motor Lis Descriptions Page 85

Descriptions
B-65382EN/02 SPECIFICATIONS 2.SPECIFICATIONS
- 63 -

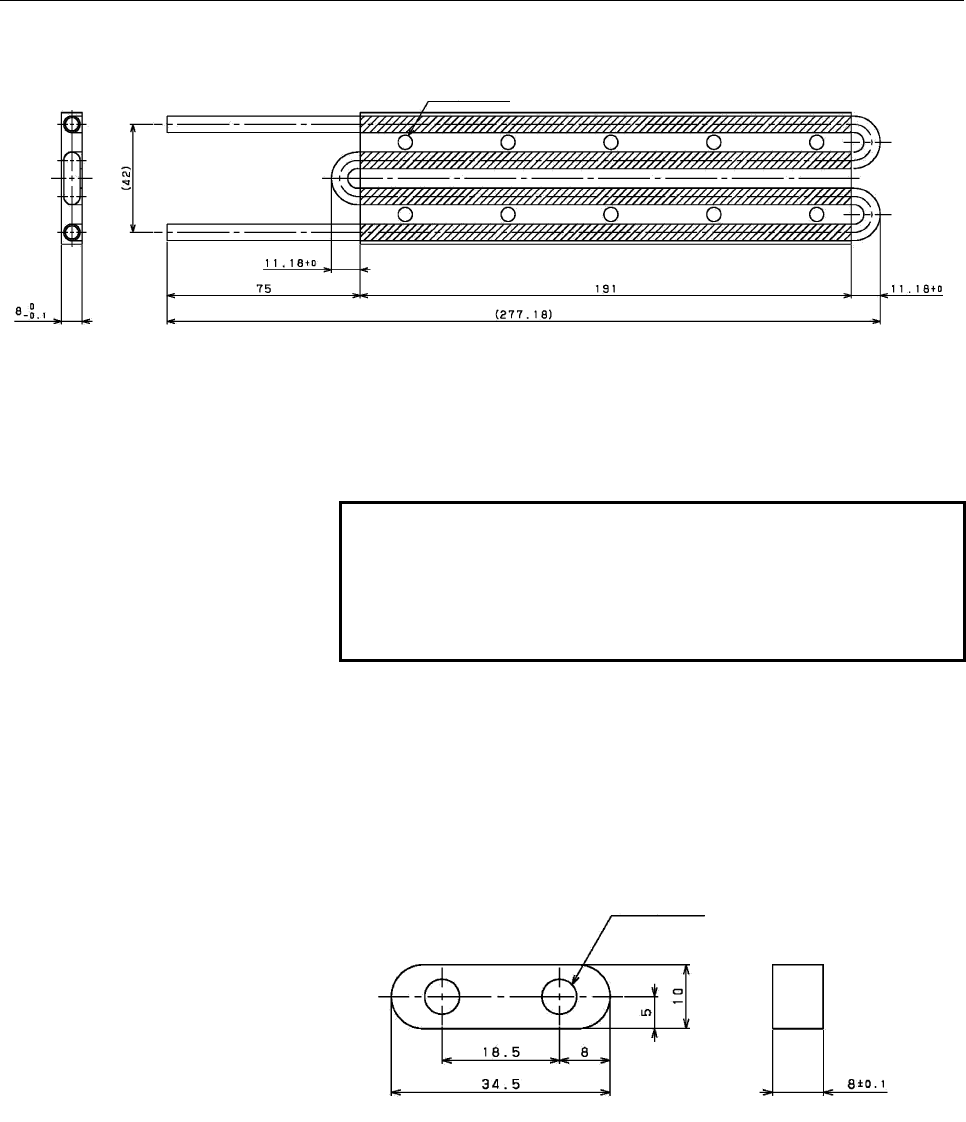

For LiS 900A1/4 (A06B-0423-K003)
10 - 5.5-DIA THROUGH
Material:
Plate: Aluminum
Tube: Deoxidized copper phosphorus seamless tube. Outside
diameter: 6.35 mm (1/4 inches) Wall thickness: 0.6 mm
Mass: 0.25 kg
NOTE
This cooling plate is dedicated to the LiS 900A1/4.
It cannot be used for other models. For installation
of a cooling plate, see Part III, "HANDLING,
DESIGN, AND ASSEMBLY."
Spacer (common to the A06B-0423-K001, A06B-0423-K002, and A06B-0423-K003)
A cooling plate is supplied with two spacers of this type. To use a
magnetic pole sensor (that is, to use an incremental linear encoder) for
the L
iS 300A1/4、LiS 600A1/4, or LiS 900A1/4, mount these spacers
on the magnetic pole sensor. They are not used when an absolute
linear encoder is used. For details, see Part III, "HANDLING,
DESIGN, AND ASSEMBLY."
2 - 5.5-DIA THROUGH
Material: Alminium
Previous page
Next page
