2.SPECIFICATIONS SPECIFICATIONS B-65382EN/02
- 62 -
2.4.5 Cooling Plate

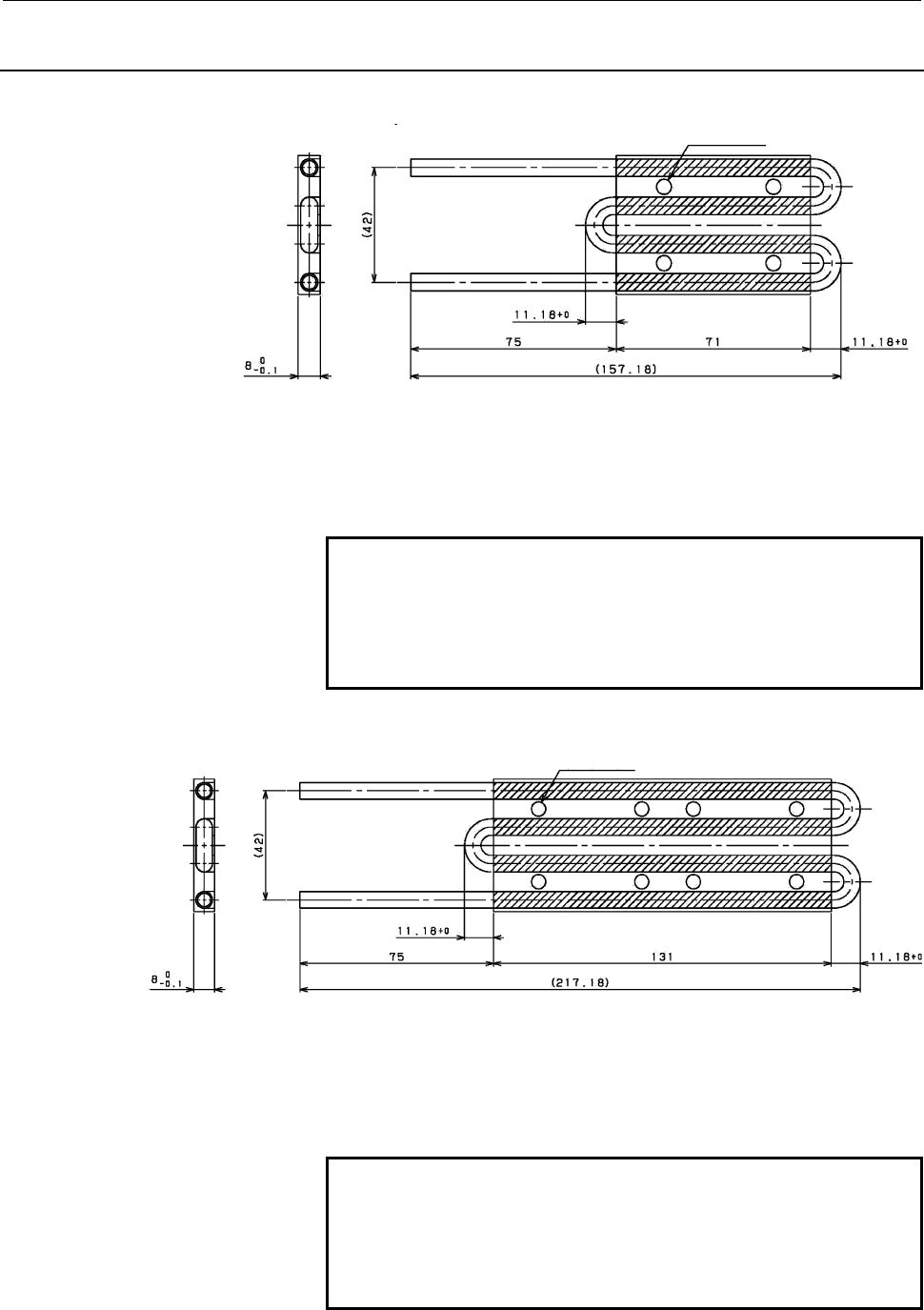

For LiS 300A1/4 (A06B-0423-K001)
4 - 5.5-DIA THROUGH
Material:
Plate: Aluminum
Tube: Deoxidized copper phosphorus seamless tube. Outside
diameter: 6.35 mm (1/4 inches) Wall thickness: 0.6 mm
Mass: 0.15 kg
NOTE
This cooling plate is dedicated to the LiS 300A1/4.
It cannot be used for other models. For installation
of a cooling plate, see Part III, "HANDLING,
DESIGN, AND ASSEMBLY."
For LiS 600A1/4 (A06B-0423-K002)
8 - 5.5-DIA THROUGH
Material:
Plate: Aluminum
Tube: Deoxidized copper phosphorus seamless tube. Outside
diameter: 6.35 mm (1/4 inches) Wall thickness: 0.6 mm
Mass: 0.2 kg
NOTE
This cooling plate is dedicated to the LiS 600A1/4.
It cannot be used for other models. For installation
of a cooling plate, see Part III, "HANDLING,
DESIGN, AND ASSEMBLY."
