2.SPECIFICATIONS SPECIFICATIONS B-65382EN/02
- 60 -

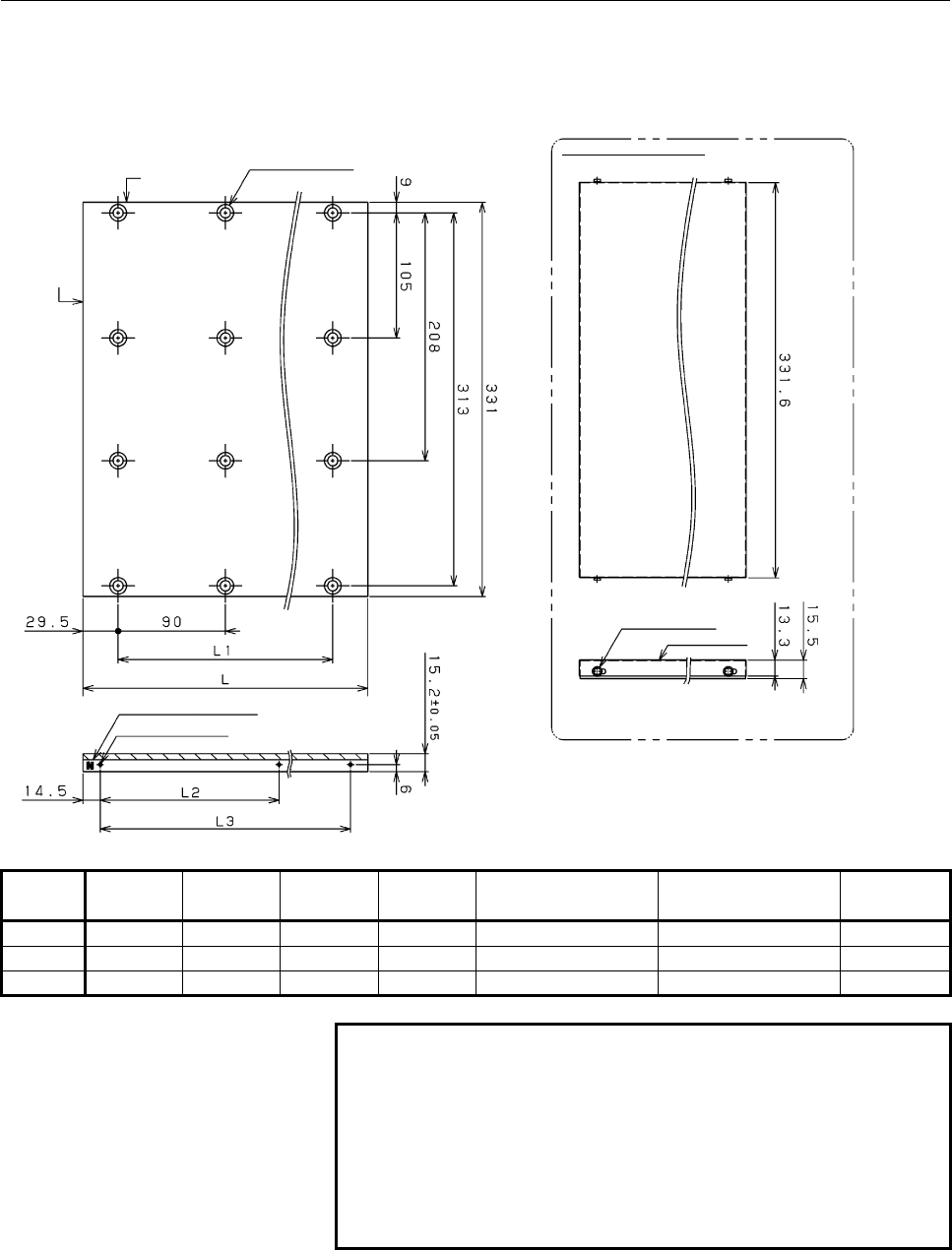

A06B-0440-B334#000x (Length 240mm)
A06B-0440-B335#000x (Length 420mm)
A06B-0440-B337#000x (Length 600mm)
DATUM
PLANE
MARKING "N" (ONLY ON INDICATED SIDE)
A
- 8.5-DIA THROUGH
14-DIA COUNTERBORE,
DEPTH: 9
WITH COVER ATTACHED
DATUM
PLANE
HEXAGONAL-HEAD BOLT
WITH WASHER
B-M3×0.5, DEPTH: 7
(EQUIDISTANT
PITCH)
NOTE) The screws (M3 x 0.5) must be tightened with
a torque of 0.6 Nm.
STAINLESS COVER
Length:
L [mm]
Length:
L1 [mm]
Length:
L2 [mm]
Length:
L3 [mm]
Number of through
holes: A [places]
Number of screw
holes: B [places]
Mass [kg]
B334 239 180 - 210 12 4 8.5
B335 419 360 - 390 20 4 15
B337 599 540 270 570 28 6 21.5
NOTE
These magnet plates are dedicated to the
LiS 10000C3/2HV, LiS 10000C3/2,
LiS 17000C3/2HV, and LiS 17000C3/2. They
cannot be used for other models. Use the above
four types of magnet plates in combination
according to the required axis length (track length).
