8.POINTS ABOUT DIRECT CONNECTION STRUCTUREFANUC AC SPINDLE MOTOR αiT SERIES B-65272EN/04

- 194 -

8 POINTS ABOUT DIRECT CONNECTION

STRUCTURE

If the motor shaft and spindle are not centered precisely when the

spindle motor is directly connected to the spindle, fretting can occur

with the motor shaft in a short-time operation, or the bearing of the

motor can be damaged because of vibration occurring at the joint.

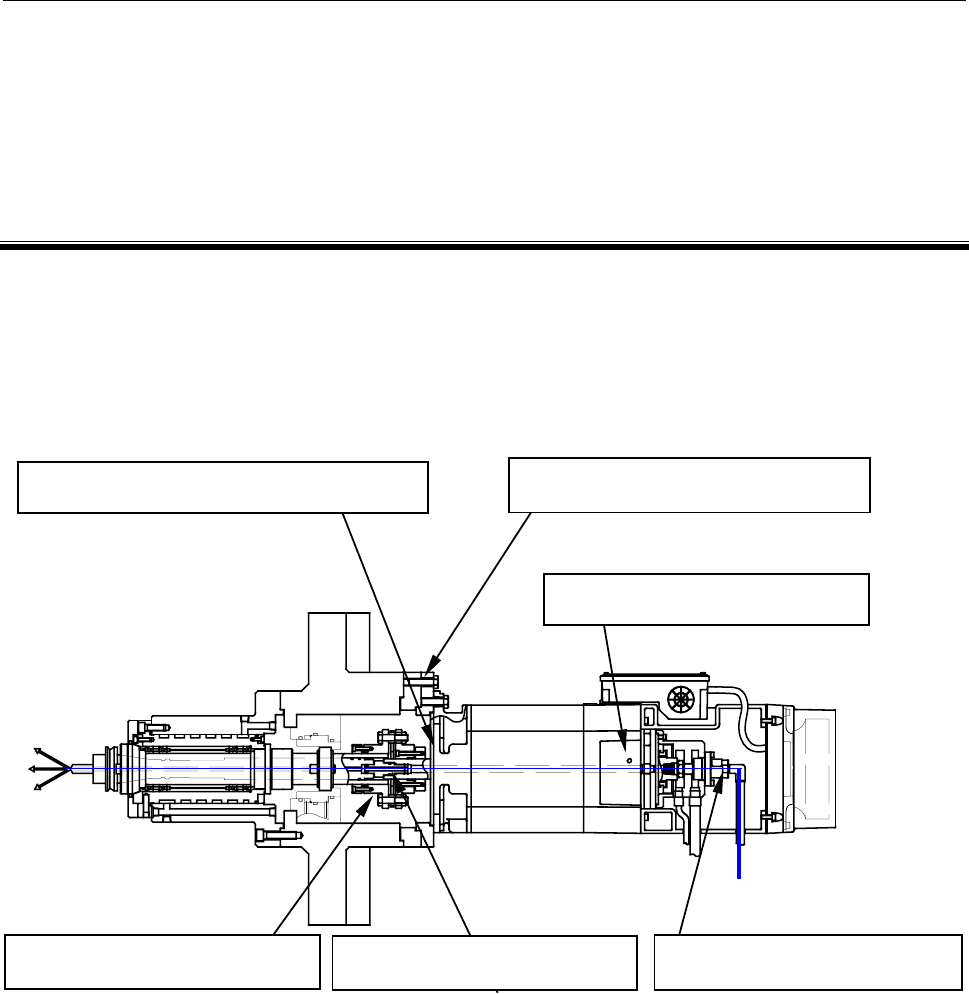

Six important points for high-speed rotation with low vibration in a

direct motor connection structure are described below.

<1> See Section 9.1, "HIGHER-PRECISION

MOUNTING FLANGE AND SHAFT".

<2> See Section 9.2, "CENTERING

USING CENTERING PLATES".

<5> See Section 9.5,

"ROTATION JOINT".

<4> See Section 9.4,

"COUPLING SELECTION".

<3> See Section 9.3, "CHECKING

MOTOR VIBRATION".

<6> See Section 9.6,

"COOLANT JOINT".
