B-65272EN/04 SPECIFICATIONS FOR THE αi SERIES 4.NOTES ON INSTALLATION

- 9 -

3 Use the eyebolt of the motor to lift only a single motor, (gear and

pulley may be attached).

4 Place a cover over an air-cooled motor to prevent the motor from

being exposed to coolant or lubricant.

5 Limit the vibration acceleration at the rear bracket of the motor

to 0.5 G (4.9 m/s

) to ensure the long-term reliability of each part

of the motor.

In particular, to limit the acceleration in the case of direct

connection to 0.5 G, carefully perform centering with the mating

spindle and make the motor shaft parallel with the spindle.

Details of the measuring method

Measuring instrument:

Equivalent to the VM-3314A or VM-3304 manufactured by

IMV CORPORATION.

Condition: At the time of highest-speed rotation with no load

Measurement frequency range with no load at the highest speed:

10 to 1000 Hz

Criteria: 0.5 G (4.9 m/s

) or less at the rear bracket

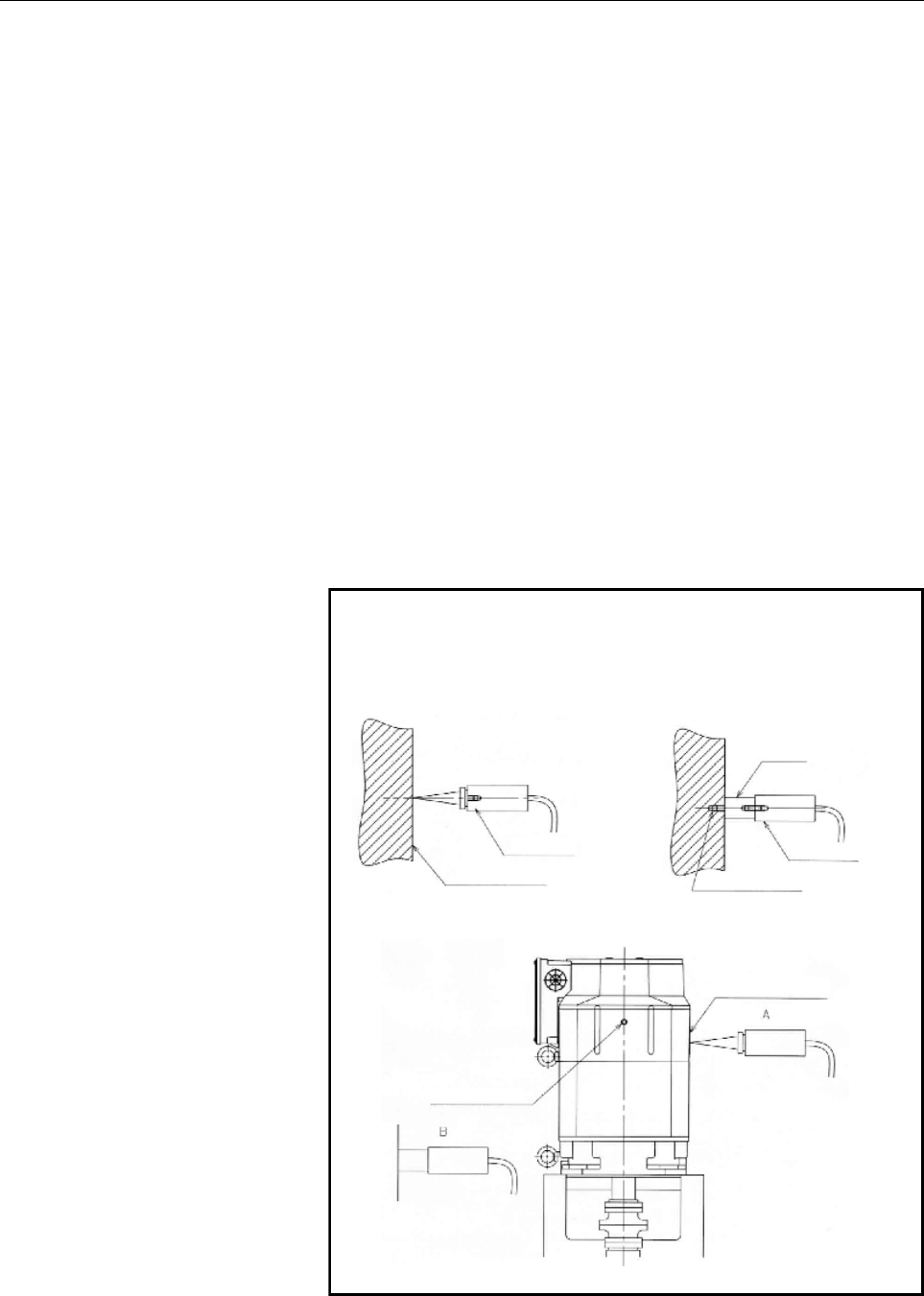

1. Using a pickup

A. Pressing a pickup against

the side of the rear bracket

B. Screwing a block into the eyebolt

internal thread on the rear

bracket, then screwing a pickup

into the block.

Block

Pickup

Side of the rear bracket

Eyebolt internal thread

2. Vibration measurement position (rear bracket)

Side of the rear bracket

Eyebolt

internal thread
