B-65272EN/04 SPECIFICATIONS FOR THE αi SERIES 4.NOTES ON INSTALLATION

- 29 -

6 Use an appropriate tension gage to tension the belt.

Examples

Sonic type:

U-305 series manufactured by UNITTA.

Mechanical type:

BT-33-73F manufactured by KENT-MOORE of the

United States

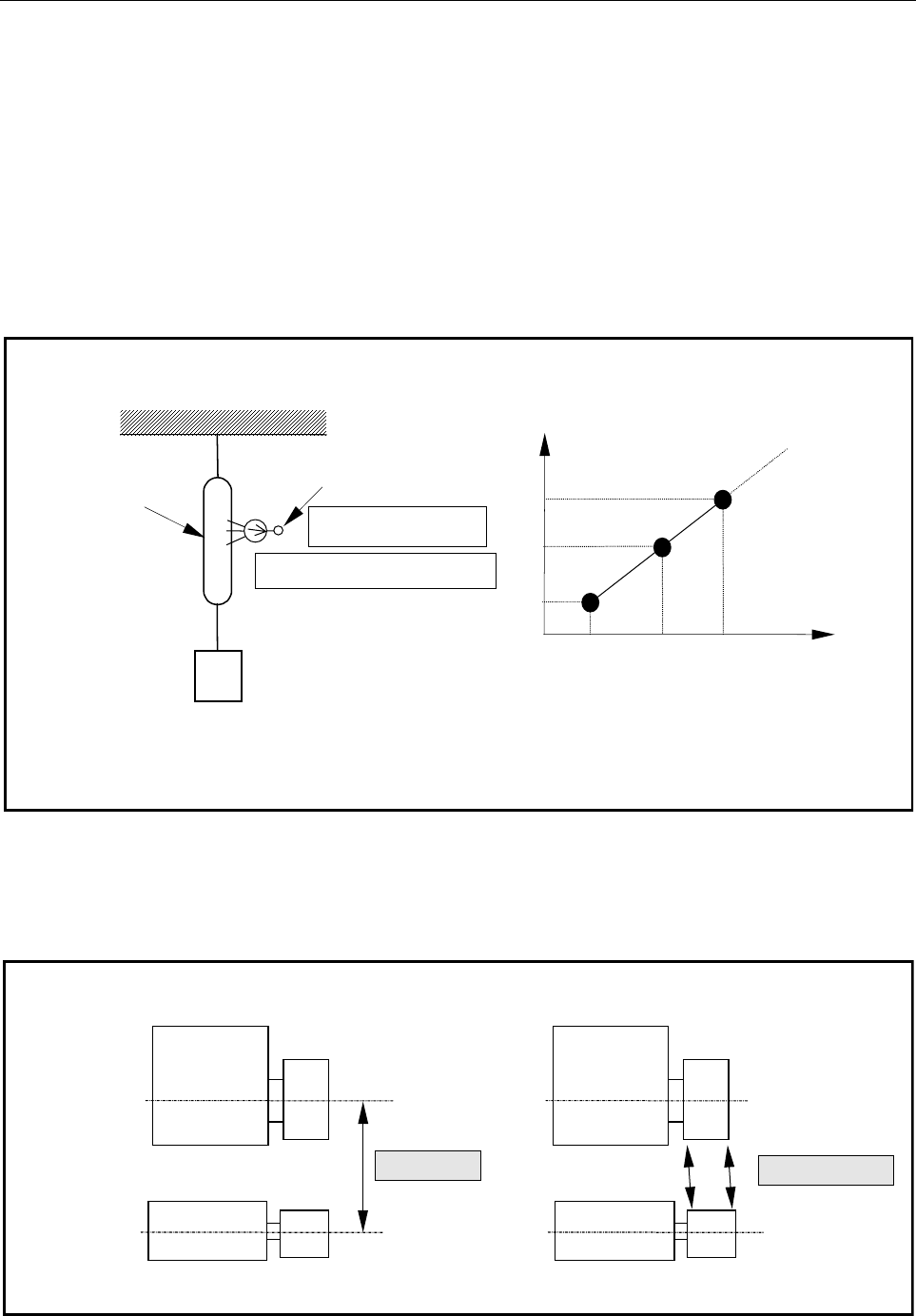

A mechanical type tension gage may give a false reading

depending on the belt's number of peaks and length. To

overcome this problem, hang an object of a known weight on the

belt, read the tension value, then adjust the tension gage.

Tension gage

djustment weight (W kgf)

djustment belt

(onie unit)

Read the value

Tension

kgf

Tension : T=W/2 kgf

M3M2 M1

Tension gage scale

Radial load applied to the motor shaft (kgf) = tension (T kgf)

number of belts

7 Reduce the deviation between the positions of the motor and

machine pulleys in the shaft direction as much as possible and

ensure that the center lines of the shafts are as parallel as

possible.

Spindle motor

Spindle

Spindle pulley

Parallelism

Pulley positions

Motor pulley

Spindle pulley

Motor pulley
