B-65272EN/04 FANUC AC SPINDLE MOTOR αiT SERIES 9.NOTES ON MOTOR INSTALLATION

- 197 -

9.2 CENTERING USING CENTERING PLATES

When connecting the spindle with the motor shaft, make centering

with a target concentricity of 5µm. If centering accuracy measurement

is difficult, it is recommended to use centering plates between the

spindle head and motor.

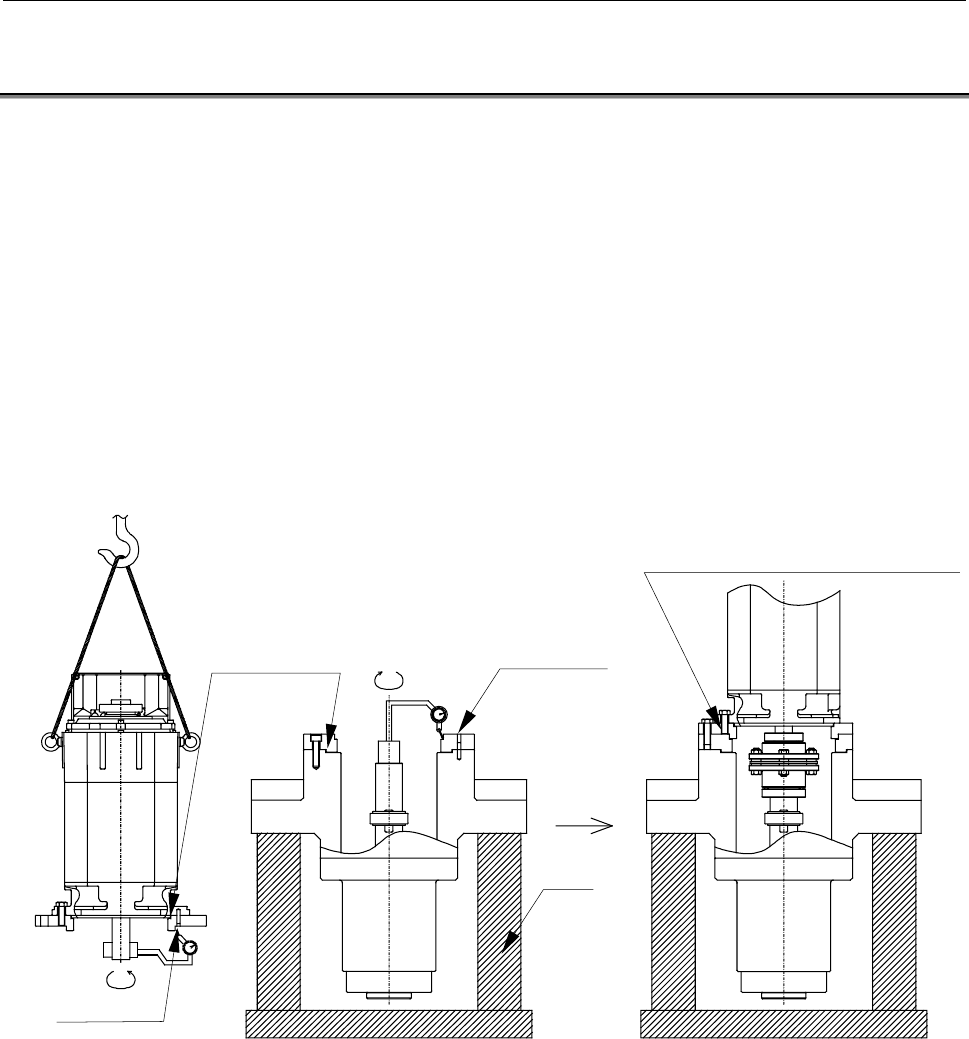

Prepare two centering plates: one for the motor and the other for the

spindle head. Mate the socket and spigot joint of the plate for the

motor with the socket and spigot joint of the plate for the spindle head

(with a target of no gap). After centering of the plate for the motor

with the motor, center the plate for the spindle head with the spindle

head. Then, attach the motor with the plate to the plate for the spindle

head. (For plate centering, the user should prepare a stand and orient

the spindle upward.)

This centering structure allows high-precision installation even in the case of motor replacement in the field.

Spring pin

To be produced for mating (with

a target of no gap)

Center the spindle with the

plate, then drive pins.

Center the motor with the

plate, then drive pins.

To be produced with

a gap of 30 to 40

Spring pin

Stand
