9.NOTES ON MOTOR INSTALLATION FANUC AC SPINDLE MOTOR αiT SERIES B-65272EN/04

- 204 -

* Before attaching a coolant joint, apply screw locking

adhesive. Be sure to use a motor shaft tip screw when

attaching a coolant joint.

<3> Method of calculating a thrust load imposed on the motor when a

coolant pressure of 70 kgf/cm

is applied

(Example)

When the pressure reception diameter (d) of a coolant joint

is φ12 and rotation joint is Deublin.

The pressure reception areas are calculated as follows:

Position A : 1.13cm

(φ12)-0.28cm

(φ6)=0.85cm

Position B : 1.31cm

(φ12.9)-0.28cm

(φ6)=1.03cm

So, the thrust load imposed on position A is 59.5 kgf, and

the thrust load imposed on position B is 72.1 kgf.

Accordingly, the thrust load 12.6 kgf (72.1 kgf - 59.5 kgf)

acts in the direction for pushing the motor shaft forward.

When pressure reception diameter d = φ12.5, a similar

calculation can be made to find a thrust load of 5.6 kgf.

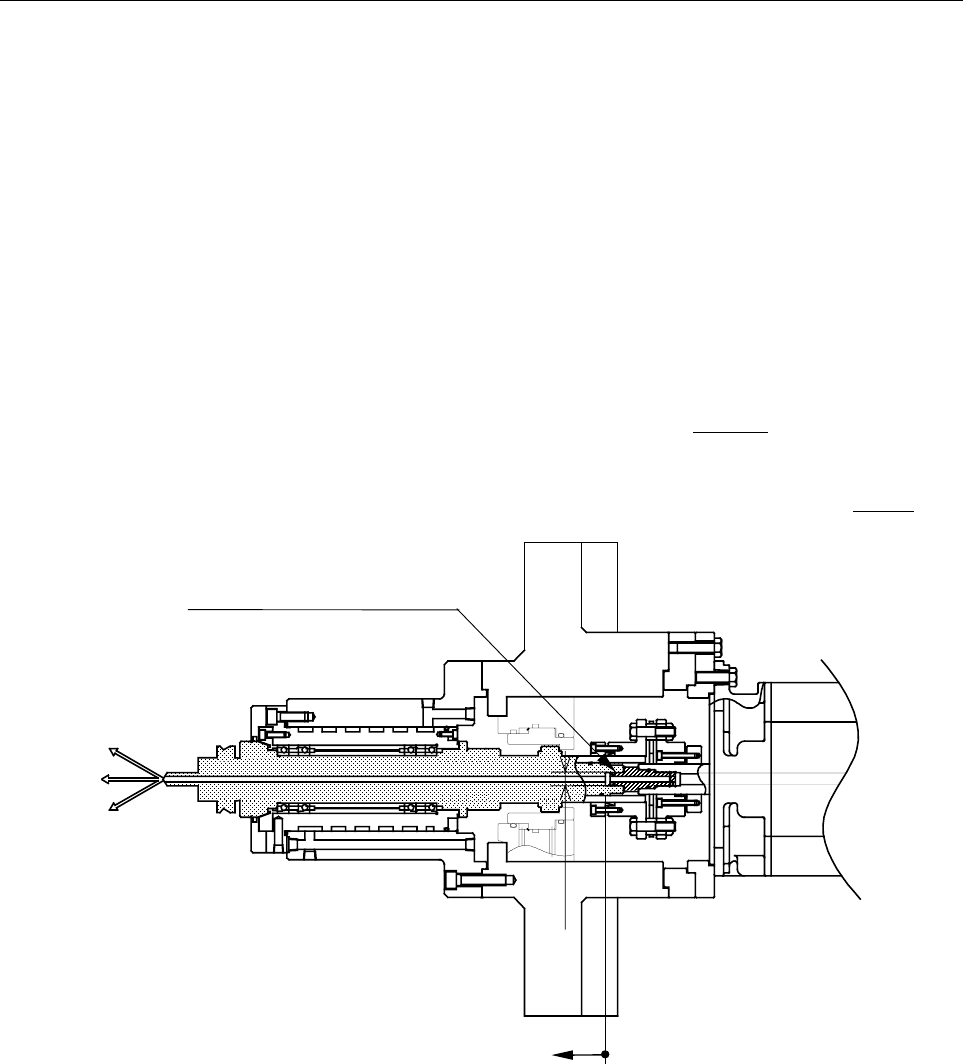

Thrust load

Coolant joint

Pressure reception diameter φd
