5.FEED FUNCTION NC FUNCTIONS B-63782EN/01

- 82 -

5.6 SPEED CNTROL COMMAND AT THE CORNER OF BLOCK

5.6.1 Exact Stop (G09)

Move command in blocks commanded with G09 decelerates at the end

point, and in-position check is performed. G09 command is not

necessary for deceleration at the end point for positioning (G00) and in-

position check is also done automatically.

This function is used when sharp edges are required for workpiece

corners in cutting feed.

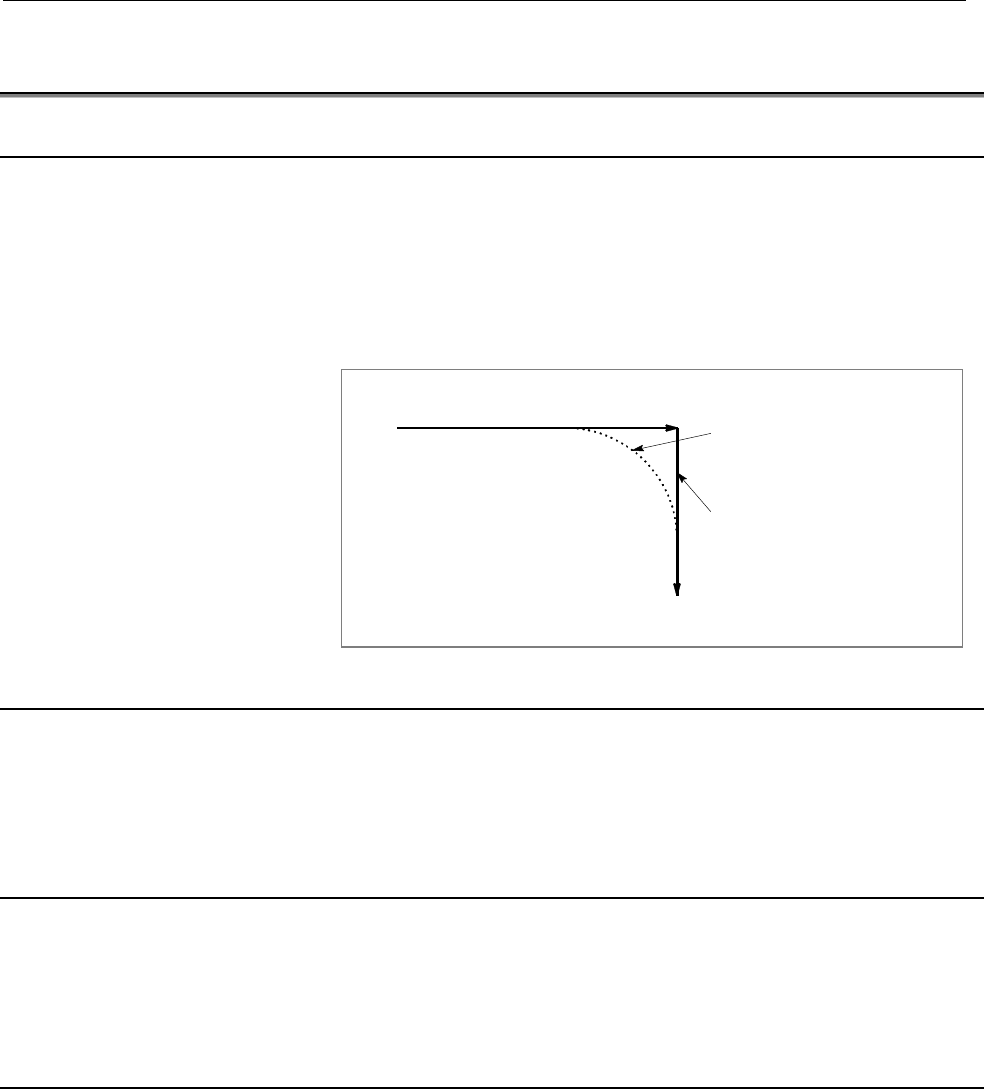

Exact stop off

Exact stop on (The in-position

check is performed at the end o

a block.)

5.6.2 Exact Stop Mode (G61)

When G61 is commanded, deceleration of cutting feed command at the

end point and in-position check is performed per block thereafter. This

G61 is valid till G64 (cutting mode), G62 (automatic corner override), or

G63 (tapping mode) is commanded.

5.6.3 Cutting Mode (G64)

When G64 is commanded, deceleration at the end point of each block

thereafter is not performed and cutting goes on to the next block. This

command is valid till G61 (exact stop mode), G62 (automatic corner

override), or G63 (tapping mode) is commanded.

5.6.4 Tapping Mode (G63)

When G63 is commanded, feed rate override is ignored (always

regarded as 100%), and feed hold also becomes invalid. Cutting feed

does not decelerate at the end of block to transfer to the next block. And

in-tapping signal is issued during tapping operation. This G63 is valid

till G61 (exact stop mode), G62 (automatic corner override), or G64

(cutting mode) is commanded.
