14.TOOL COMPENSATION FUNCTION NC FUNCTIONS B-63782EN/01

- 186 -

14.9 TOOL AXIS DIRECTION TOOL LENGTH COMPENSATION

When a five-axis machine that has two axes for rotating the tool is used,

tool length compensation can be performed in a specified tool axis

direction on a rotation axis. When a rotation axis is specified in tool axis

direction tool length compensation mode, tool length compensation is

applied in a specified tool axis direction on the rotation axis by the

compensation value specified in the H code.

The tool compensation vector changes as the offset value changes or

movement is made on a rotation axis. When the tool compensation

vector changes, movement is made according to the change value along

the X-axis, Y-axis, and Z-axis.

- Machine configuration

The compensation of the tool length of the tool axis direction can be used

for the machine of the following compositions.

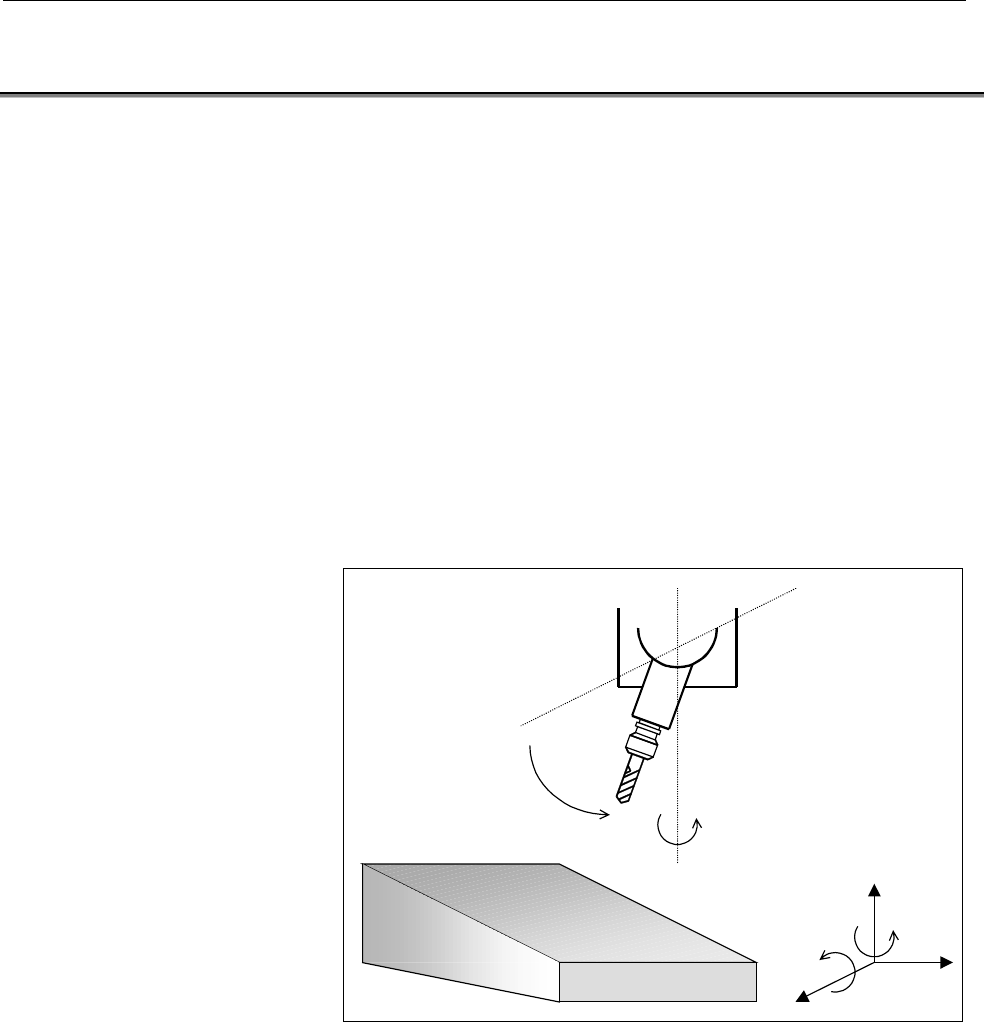

(1) A-axis and C-axis, with the tool axis on the Z-axis

Workpiece
