B-63782EN/01 NC FUNCTIONS 25.DISPLAY AND SETTING

- 333 -

25.10 WAVEFORM DIAGNOSIS FUNCTION

This function traces data such as a servo position error, torque, and a

machine signal and shows a change in the data as a waveform. This

facilitates the adjustment of a servo motor and a spindle motor and

finding of a possible cause in a problem.

This function traces the following data.

(1) Servo-related items

Position error of a servo motor along each axis, pulse count after

distribution, torque, pulse count after acceleration and

deceleration, actual speed, specified current, and thermal

simulation data

(2) Combined speed for all axes

(3) Spindle-related items

Spindle-motor speed and load meter indication

(4) State of on ("1")/off ("0") of machine signal

A total of four items among the servo-related items, the combined

speed for all axes, and the spindle-related items, and four machine

signals can be traced at a time.

The waveforms of all traced data items can be displayed at the same

time.

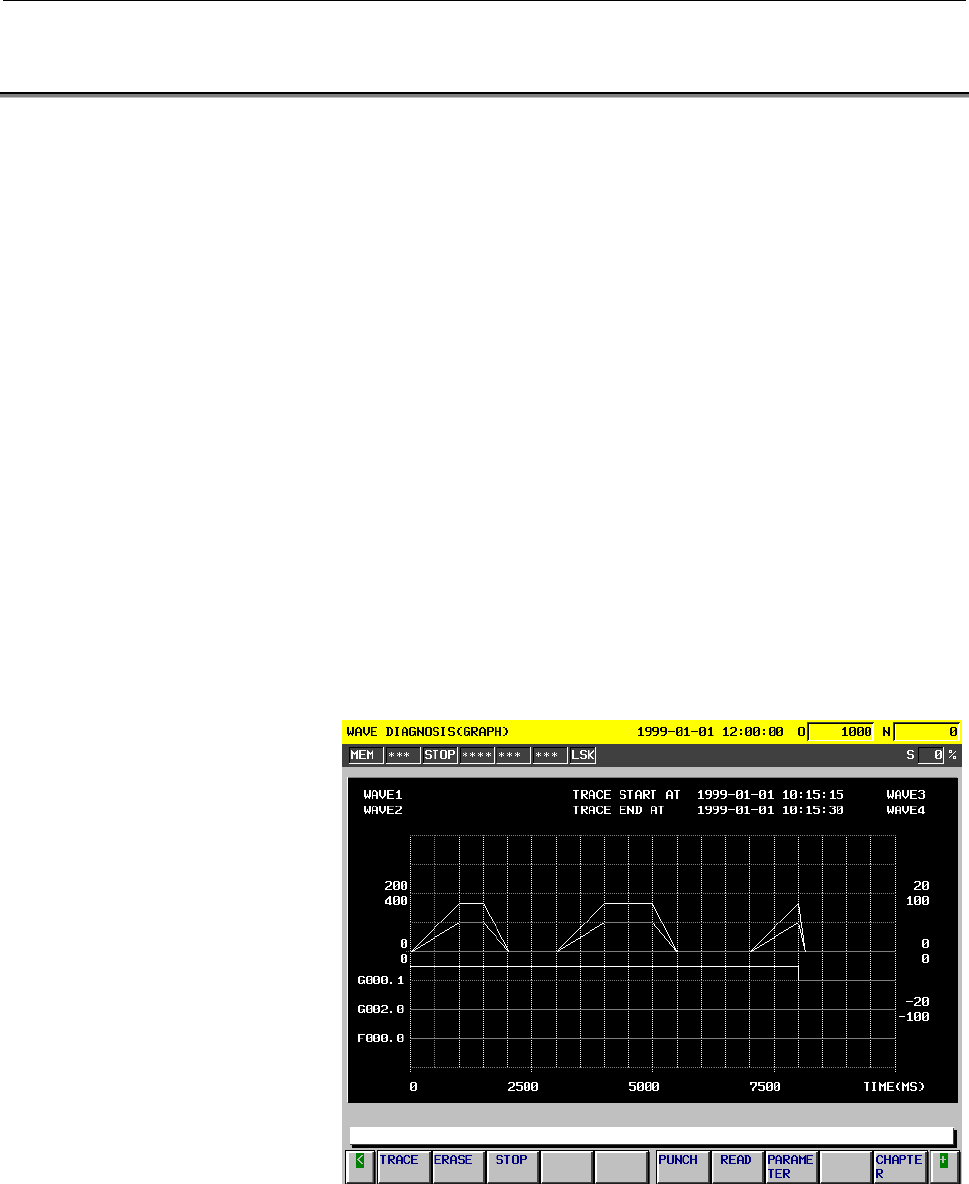

Fig. 25.10 Waveform-diagnosis graphic screen
