B-63782EN/01 NC FUNCTIONS 7.COORDINATE SYSTEM

- 107 -

7.6 ROTARY TABLE DYNAMIC FIXTURE OFFSET

The rotary table dynamic fixture offset function saves the operator the

trouble of re-setting the workpiece coordinate system when the rotary

table rotates before cutting is started. With this function the operator

simply sets the position of a workpiece placed at a certain position on

the rotary table as a reference fixture offset. If the rotary table rotates,

the system automatically obtains a current fixture offset from the

angular displacement of the rotary table and creates a suitable

workpiece coordinate system. After the reference fixture offset is set,

the workpiece coordinate system is prepared dynamically, wherever

the rotary table is located. The zero point of the workpiece coordinate

system is obtained by adding the fixture offset to the offset from the

workpiece reference point.

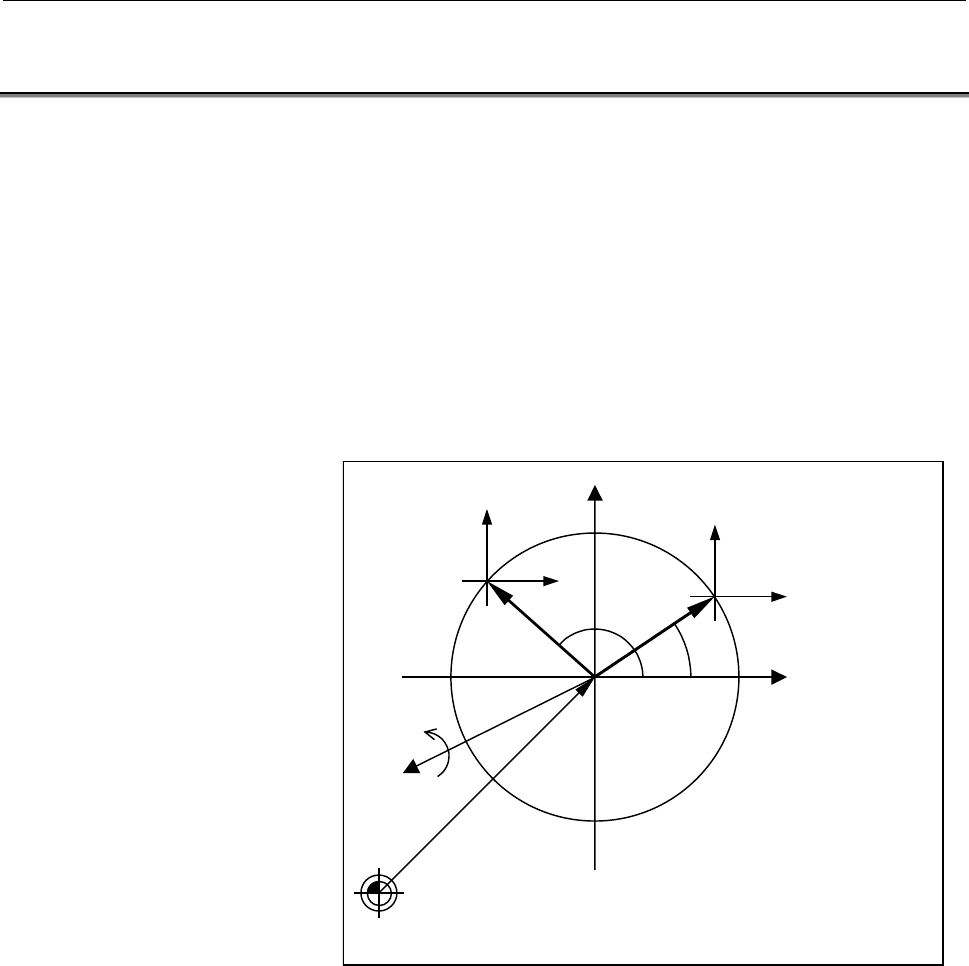

Machine coordinate

system origin

W : Workpiece origin offset value

: Reference angle

: Reference fixture offset value

θ : Rotation axis angle

F : Fixture offset value

Rotation axis

center

Fig.7.6 Fixture offset

- Fixture offset command

When command G54.2 Pn is specified, a fixture offset is calculated

from the rotary axis angular displacement and the data of n. The fixture

offset becomes valid.

If n is set to 0, the fixture offset becomes invalid.

- When a move command is specified for a rotation axis in G54.2 mode

When a move command is specified for a rotation axis related to fixture

offset in G54.2 mode, vector calculation is performed using the

coordinates of the rotation axis at the end point of the block, and

movement is made to the specified position pointed to by the vector on

the workpiece coordinate system.
