14.TOOL COMPENSATION FUNCTION NC FUNCTIONS B-63782EN/01

- 200 -

14.13 GRINDING WHEEL WEAR COMPENSATION

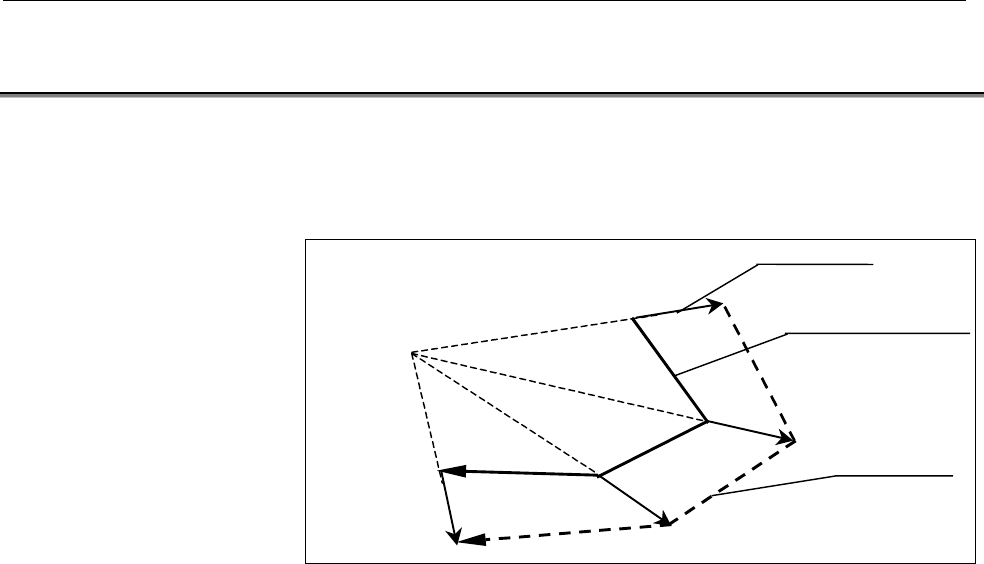

On a specified compensation plane, a compensation vector is created as an

extension of a straight line starting from a specified point (compensation

center) toward a command end point.

Com

ensation vecto

Pro

rammed

ath

Tool center path

Compensa-tion center

For a system having the grinding wheel wear compensation function, the

following functions cannot be added:

- Functions belonging to G code group 07 except this function

Cutter compensation (G40, G41, G42) [J859],

Three-dimensional tool compensation (G40, G41) [J861],

Three-dimensional cutter compensation (G41.3, G41.2, G42.2)

[J703],

Tool length compensation in a specified direction (G41) [J659]
