25.29 REMOTE DIAGNOSTIC FUNCTION
Remote Diagnostic Function enables Personal Computer(PC) as a
service terminal to download/upload data to/from FANUC Series 15i-
B connected via telephone line.

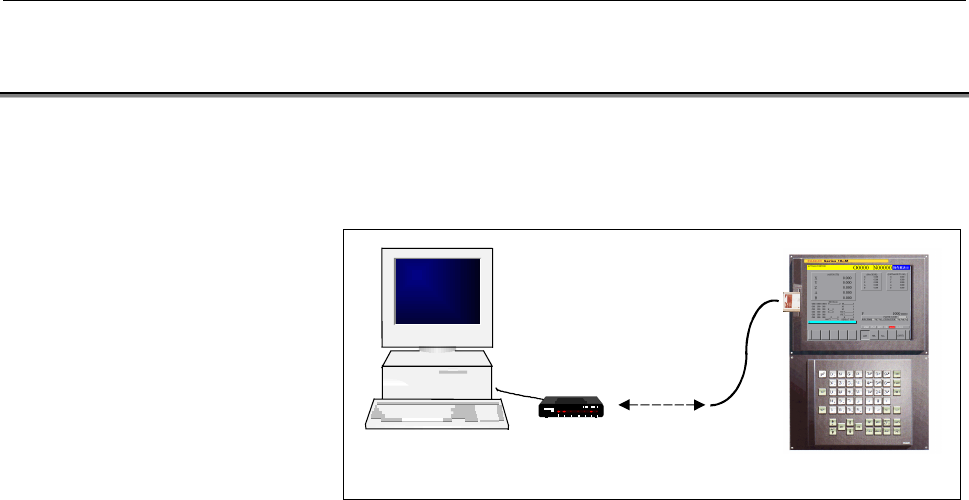

Host PC MODEM
Modem Card
FS15i/16i/18i/21i
Telephone line
Remote Diagnostic Function supports the features as follow:
1. Modem Card is inserted to the socket on the front side of CNC
LCD unit to connect to normal telephone line directly or via handy
telephone.
2. Via telephone line, the state of a CNC machine remote from a
service center can be monitored and the data in the CNC can be
modified.
3. Quick maintenance and service can be done because several kinds
of information such as alarms, parameters and programs can be
obtained from service centers.
The following functions are available.
1. Download Function (CNC to Computer)
a. Display
CNC Series, Edition
Maintenance Information
Parameter
Program
Offset
Macro Variable
Diagnostic Information
Signal Status
Machine Position
Actual Feedrate
Program Number
Tool Group Number
Ladder/PMC Series, Edition
Absolute Position
Skip Position
Servo Error
Acc./Dec. Error
A/D Conversion Data
