Series 15i/150i - Model B Descriptions Page 201

Descriptions

Page of 442

/ 442

B-63782EN/01 NC FUNCTIONS 14.TOOL COMPENSATION FUNCTION

- 183 -

- Three-dimensional tool compensation vector

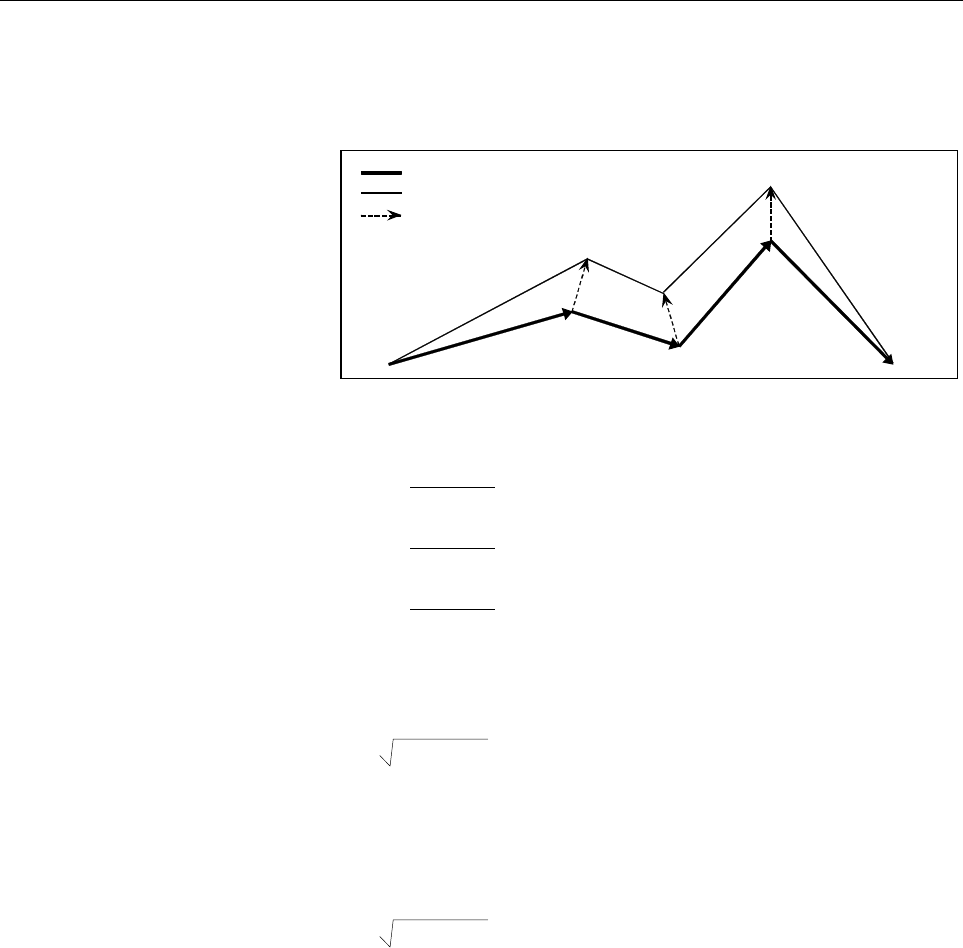

In three-dimensional tool compensation mode, the following three -

dimensional compensation vector is generated at the end of each block:

Programmed path

Path after three-dimensional tool compensation

Three-dimensional tool compensation vecto

G41

G40

The three-dimensional tool compensation vector is obtained from the

following expressions:

i × r

Vx=

(Vector component along the Xp-axis)

j × r

Vy=

(Vector component along the Yp-axis)

k × r

Vz=

(Vector component along the Zp-axis)

In the above expressions, i, j, and k are the values specified in addresses I,

J, and K in the block. r is the offset value corresponding to the specified

offset number. p is the value obtained from the following expression:

p = i

When the user wants to program the magnitude of a three-dimensional

tool compensation vector as well as its direction, the value of p in the

expressions of Vx, Vy, and Vz can be set as a constant in parameter (No.

6011.) If the parameter is set to 0, however, p is determined as follows:

p = i
