B-63782EN/01 NC FUNCTIONS 14.TOOL COMPENSATION FUNCTION

- 175 -

14.3 CUTTER COMPENSATION

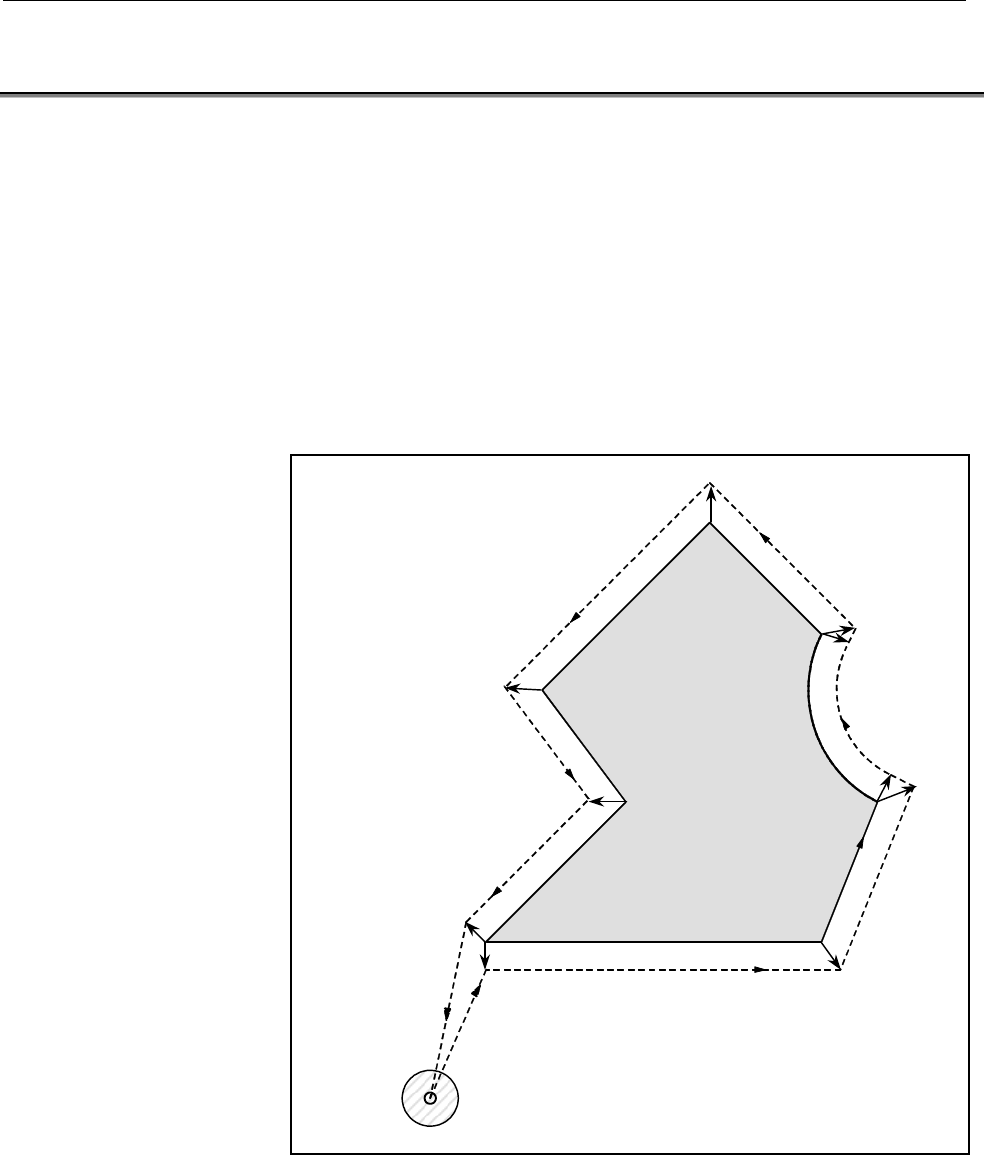

When the tool is moved, the tool path can be shifted by the radius of the

tool.

To make an offset as large as the radius of the tool, CNC first creates an

offset vector with a length equal to the radius of the tool (start-up).

The offset vector is perpendicular to the tool path. The tail of the vector

is on the workpiece side and the head positions to the center of the tool.

If a linear interpolation or circular interpolation command is specified

after start-up, the tool path can be shifted by the length of the offset

vector during machining.

To return the tool to the start position at the end of machining, cancel the

cutter compensation mode.

Start-up

Cutter

compensation

cancel
