B-63782EN/01 NC FUNCTIONS 21.MANUAL OPERATION
- 295 -
21.11 DISPLAYING PULSE VALUES AND AMOUNT OF
MOVEMENT BY MANUAL INTERRUPT

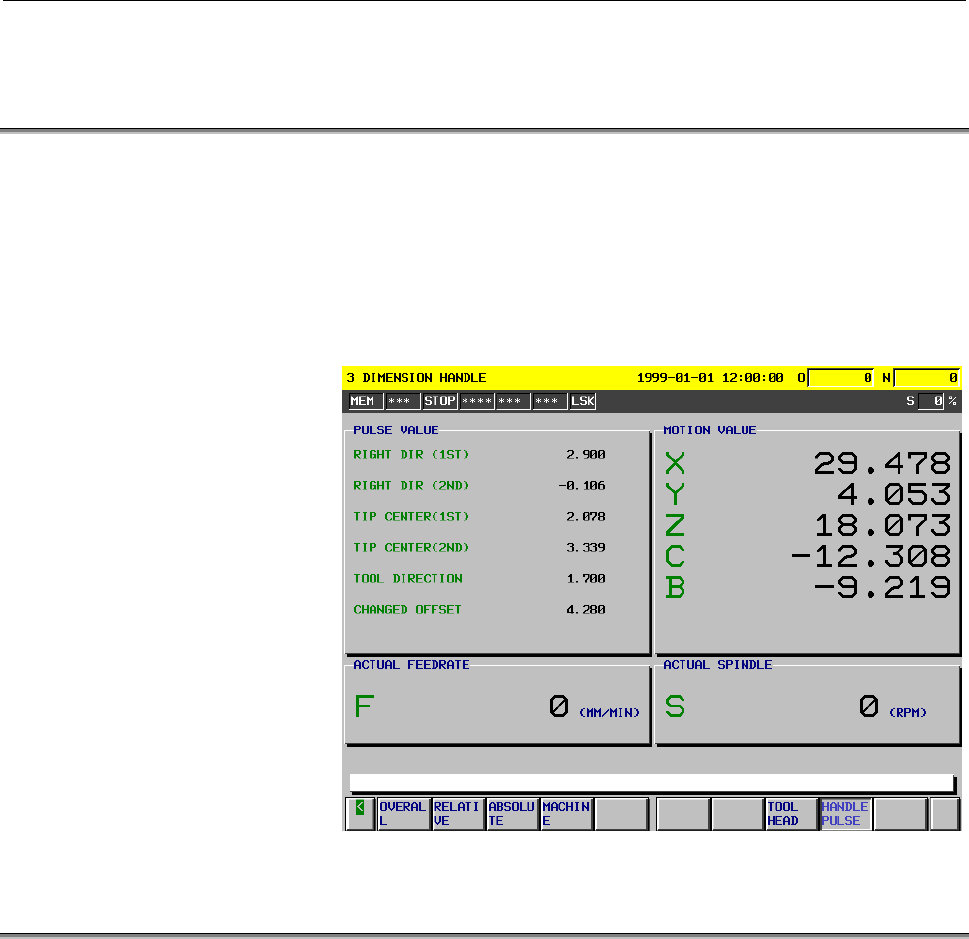

The amount of a handle interrupt is displayed for each of the functions
including handle feed in the longitudinal direction of the tool, handle
feed in the transverse direction of the tool, rotational handle feed
around the center of the tool tip, and change of tool length
compensation in the longitudinal direction of the tool. In addition, the
total amount of movement when each handle feed function is
performed is displayed.
21.12 MANUAL NUMERIC COMMAND
The manual numeric command function allows data programmed by
MDI to be executed in the jog mode. Whenever the system is ready for
jog feed, a manual numeric command can be executed. The following
eight functions are supported:
(1) Positioning (G00)
(2) Linear interpolation (G01)
(3) Automatic reference position return (G28)
(4) 2nd, 3rd or 4th reference position return (G30)
(5) M codes (miscellaneous functions)
(6) S codes (spindle functions)
(7) T codes (tool functions)
(8) B codes (second auxiliary function)
