B-63782EN/01 NC FUNCTIONS 29.SAFETY FUNCTIONS

- 387 -

29.2 OVERTRAVEL FUNCTIONS

29.2.1 Overtravel

When the movable section has gone beyond the stroke end, a signal is

output, the axis decelerates to a stop, and overtravel alarm is displayed.

All directions on all axes has overtravel signals.

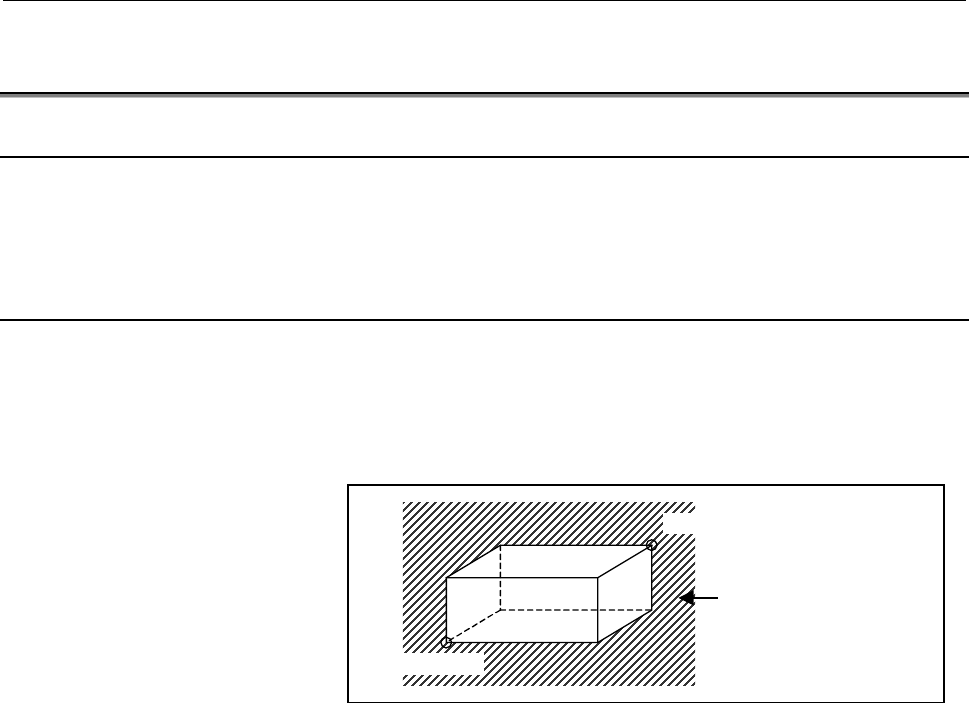

29.2.2 Stored Stroke Check 1

The movable section of the machine is parameter set in machine

coordinates value. If the machine moves beyond the preset range, it

decelerates to a stop and alarm is displayed. (This function is valid after

manual reference point return at power on.)

This function can be used instead of hardware overtravel limit switch.

When both is equipped with, both are valid.

, Y

, Z

, ...)

, Y

, Z

, ...)

the forbidden area
