Servo Amplifier Unit Alpha Series Descriptions Page 103

Descriptions
B–65192EN/02
9. CONNECTION
87

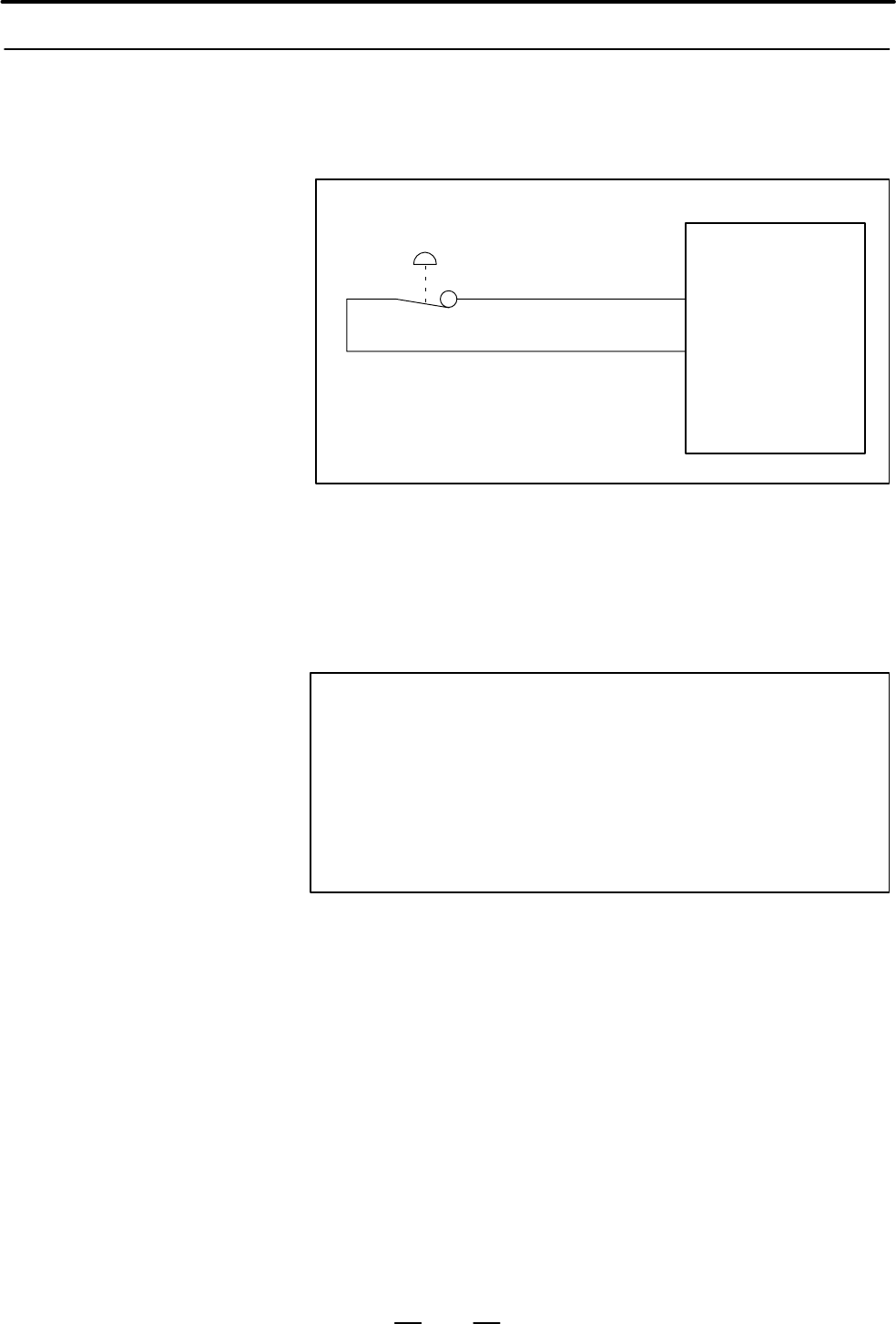

CX4 SVU
Emergency stop
contact
+24V
ESP
(1)
(2)
(3)
Cable specification : Two–core vinly cabtyre cable JIS C 3312
Conductor 1.25mm
2
(50/0.18) Sheath PVC 9.6 φ
Connector specification : Cnnector manufactured by AMP
Receptacle housing: 1–178128–3
Receptacle contact : 1–175218–2
CAUTION
The contact input signal is defined as follows:
À The external contact should be rated at least 30 VDC, 100
mA.
Á When a square wave input is used without a contact, the
effective levels (voltage across the input terminals) are:
Low level, logical 0 : 2 V or lower
High level, logical 1 : 20 V or higher
9.3.5
Detailed Connection
of Cable K5
