1. Fanuc
  2. Servo Amplifier Unit Alpha Series

Servo Amplifier Unit Alpha Series Descriptions Page 86

Descriptions
9. CONNECTION
B–65192EN/02
70

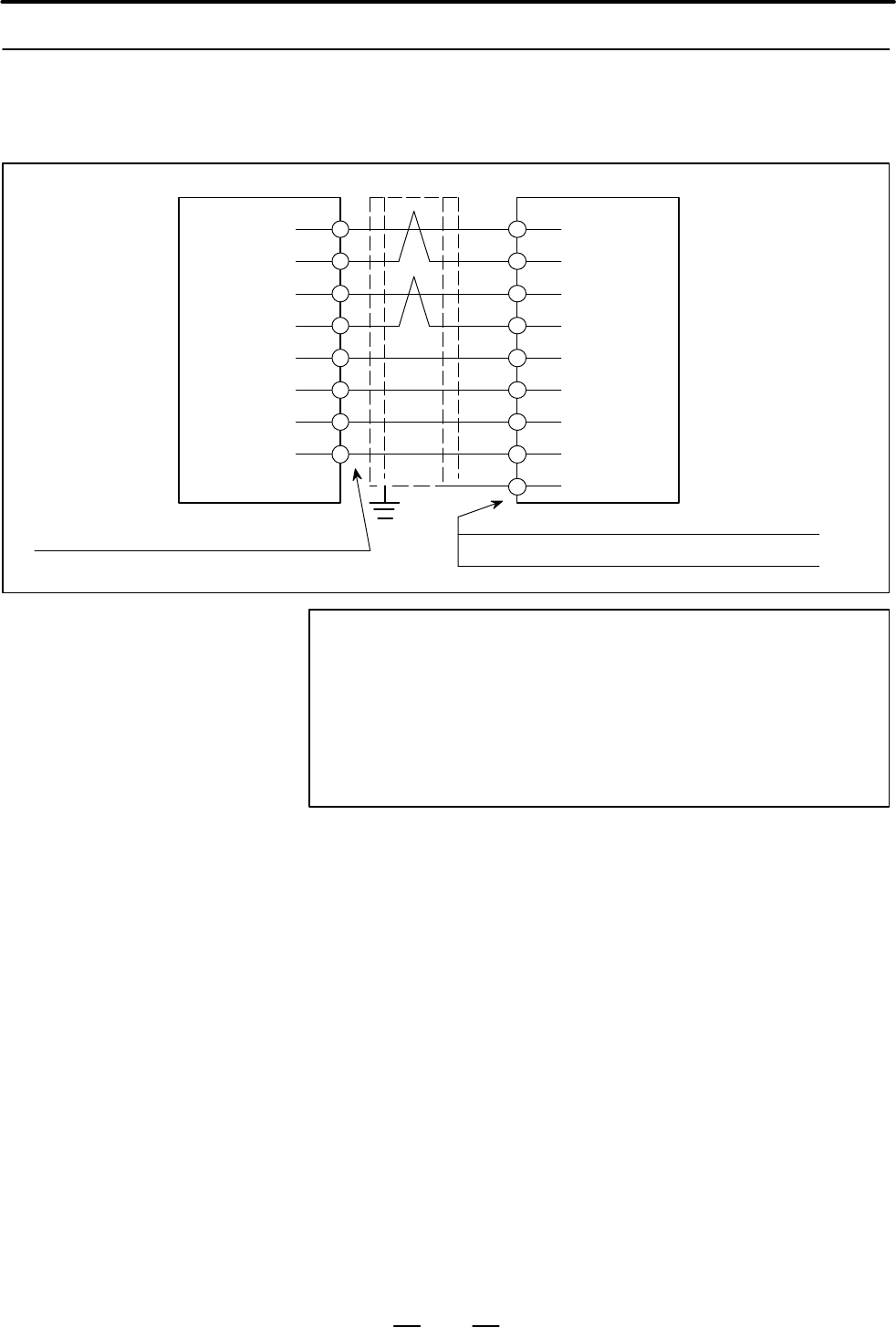

(1) For connection to Series 0–C or Series 15–A
(a) For model α1/3000, α2/2000, α2/3000
NC SD (12)
(17) *SD (13)
(14) REQ (5)
(15) *REQ (6)
(4, 5, 6) +5V (8, 15)
(1, 2) 0V (1, 2, 3)
(3) 0VA (10)
Note) Note)
(7) +6VA (14)
Shield (4)
FF
Connector:
Connector: HDAB–15S (HIROSE ELECTRIC)
MR–20LFH (HONDA TSUSHIN KOGYO)
Cover : HDAW–15–CV (HIROSE ELECTRIC)
(16) Motor
{}
NOTE
For incremental pulse coders, pins 3 and 7 of the NC and
pins 10 and 14 of the motor need not be connected.
Connecting these pins, however, will not result in any
problems. Therefore, a cable designed for use with an
absolute pulse coder can also be used with an incremental
pulse coder.
9.3.2
Detailed Connection
of Cable K2
Previous page
Next page
