Servo Amplifier Unit Alpha Series Descriptions Page 116

Descriptions
10. COMPATIBILITY WITH THE C
SERIES SERVO AMPLIFIER
B–65192EN/02
100
 Surge absorber
SVU: Does not have a built–in surge absorber, so as to conform to
European standards. An external surge absorber is required.
For details, see Subsec. 9.3.13.
SVUC:Contains a surge absorber in the same way as the C series
amplifier. An external surge absorber is not required.
à The specifications of the monitoring contact have been partly
modified.
The monitoring contacts of the C series amplifier provide the output
for the auxiliary contact of the magnetic contactor used to shut off the
main circuit. The monitoring contacts of the SVU/SVUC provide the
output for the auxiliary contact of a DB relay or contactor. For details,
see Subsec. 9.3.15.

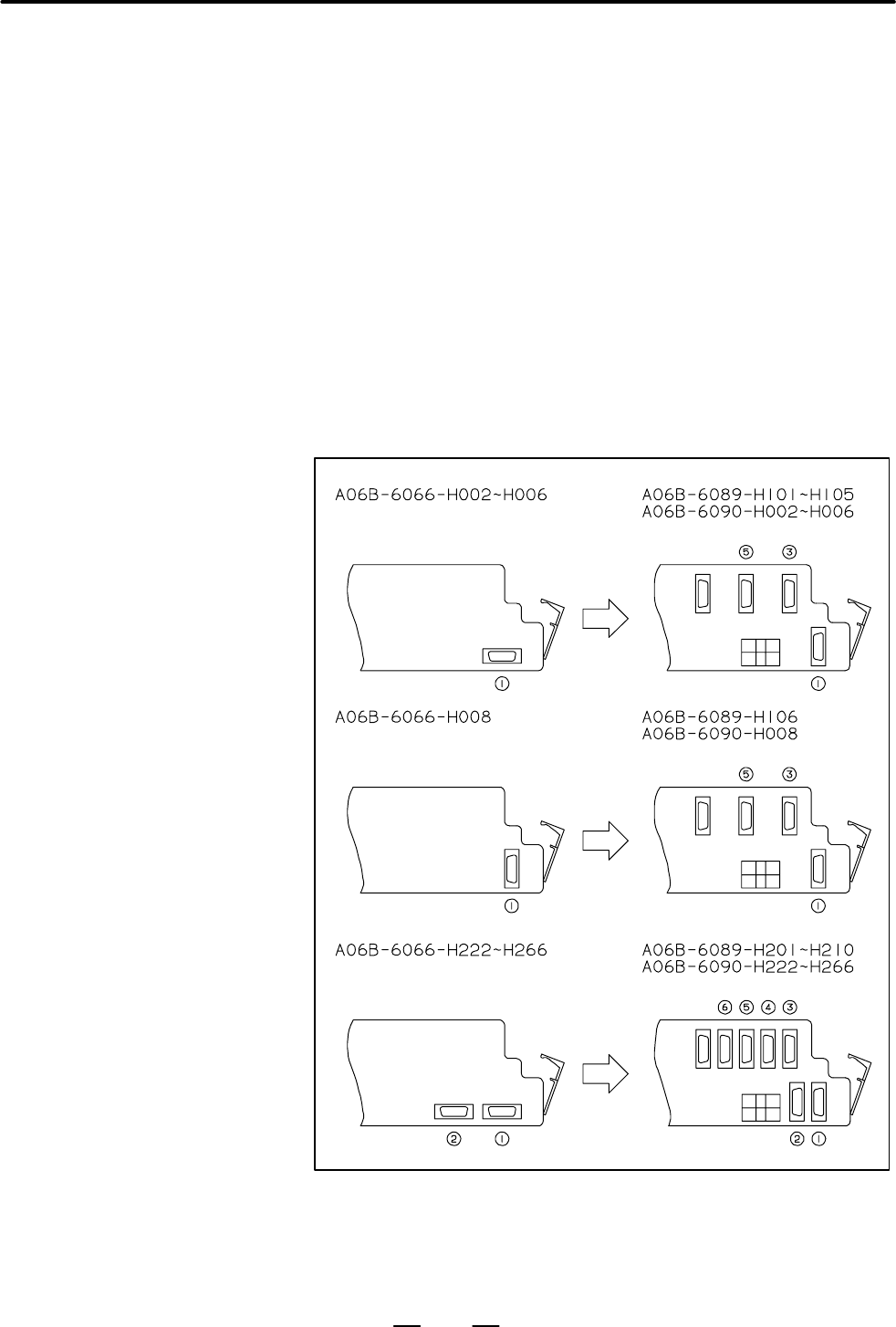

Ä Connector positions
The SVU/SVUC has connectors for both the TYPE–B interface and
the conventional TYPE–A interface.
