9. CONNECTION
77

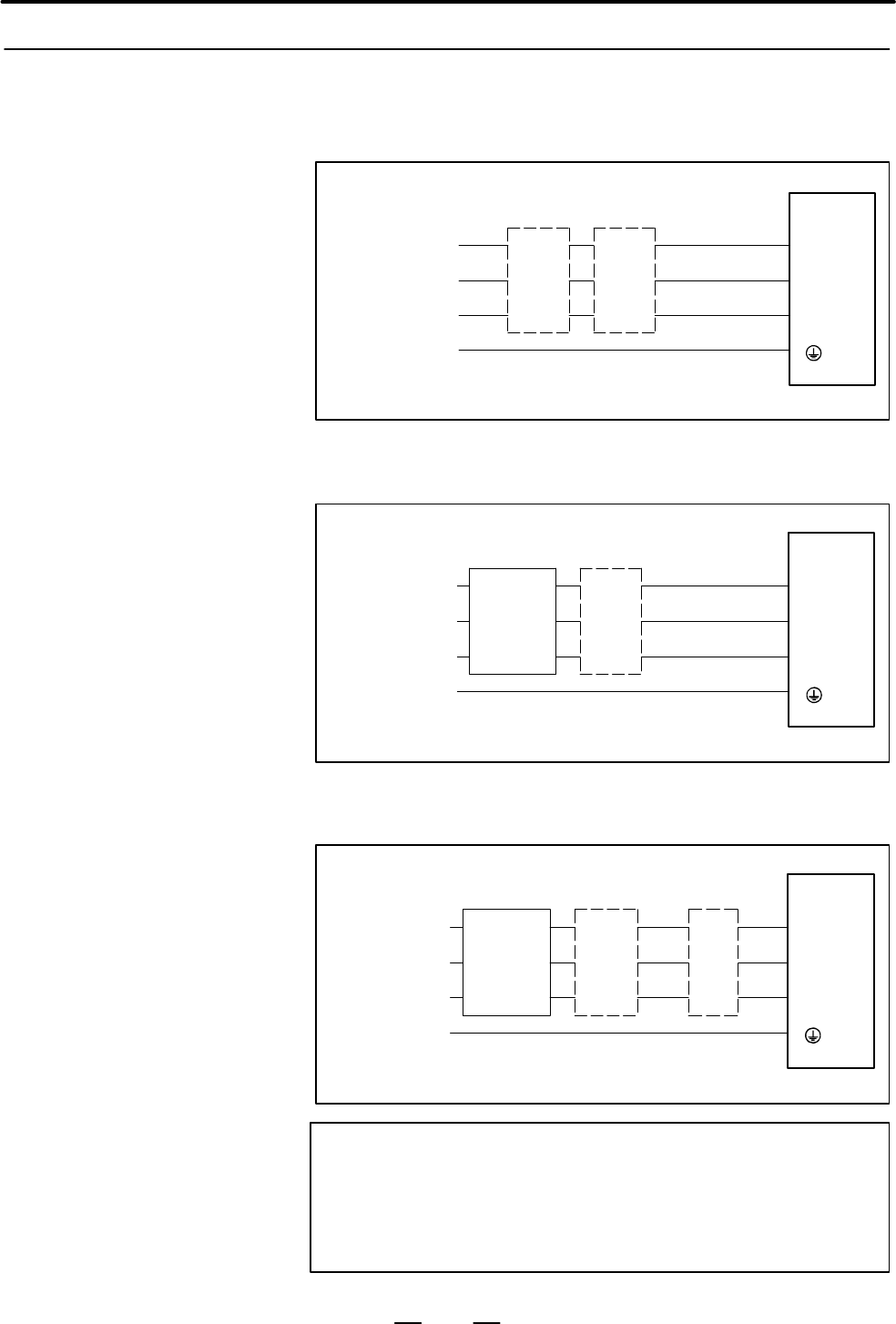

(1) Power supply voltage is 200, 220, 230VAC and the system conform
with the European standard.
Power supply
200VAC
220VAC
230VAC
T
50/60Hz
G
R
S
TB1
(L1)
(L2)
(L3)
( )
Breaker
AC
line
filter
L1
L2
L3
SVU
SVUC
(2) Power supply voltage is 380, 415, or 460 VAC, and the system has not
been approved to display the CE marking (machinery directive).
Power supply
380VAC
415VAC
460VAC
T
50/60Hz
G
R
S
TB1
(L1)
(L2)
(L3)
( )
SVU
SVUC
L1
L2
L3
Power
trans-
former
Breaker
(3) Power supply voltage is 380, 415, or 460 VAC, and the system has been
approved to display the CE marking (machinery directive).
Power supply
380VAC
415VAC
460VAC
T
50/60Hz
G
R
S
TB1
(L1)
(L2)
(L3)
( )
SVU
L1
L2
L3
Power
trans-
former
Breaker
MCC
NOTE
1 When the power transformer is used, the AC line filter can
be omitted.
2 A system using the SVUC will not be able to gain approval
to display the CE marking (machinery directive).
9.3.3
Detailed Connection
of Cable K3
