9. CONNECTION
B–65192EN/02
68
NOTE

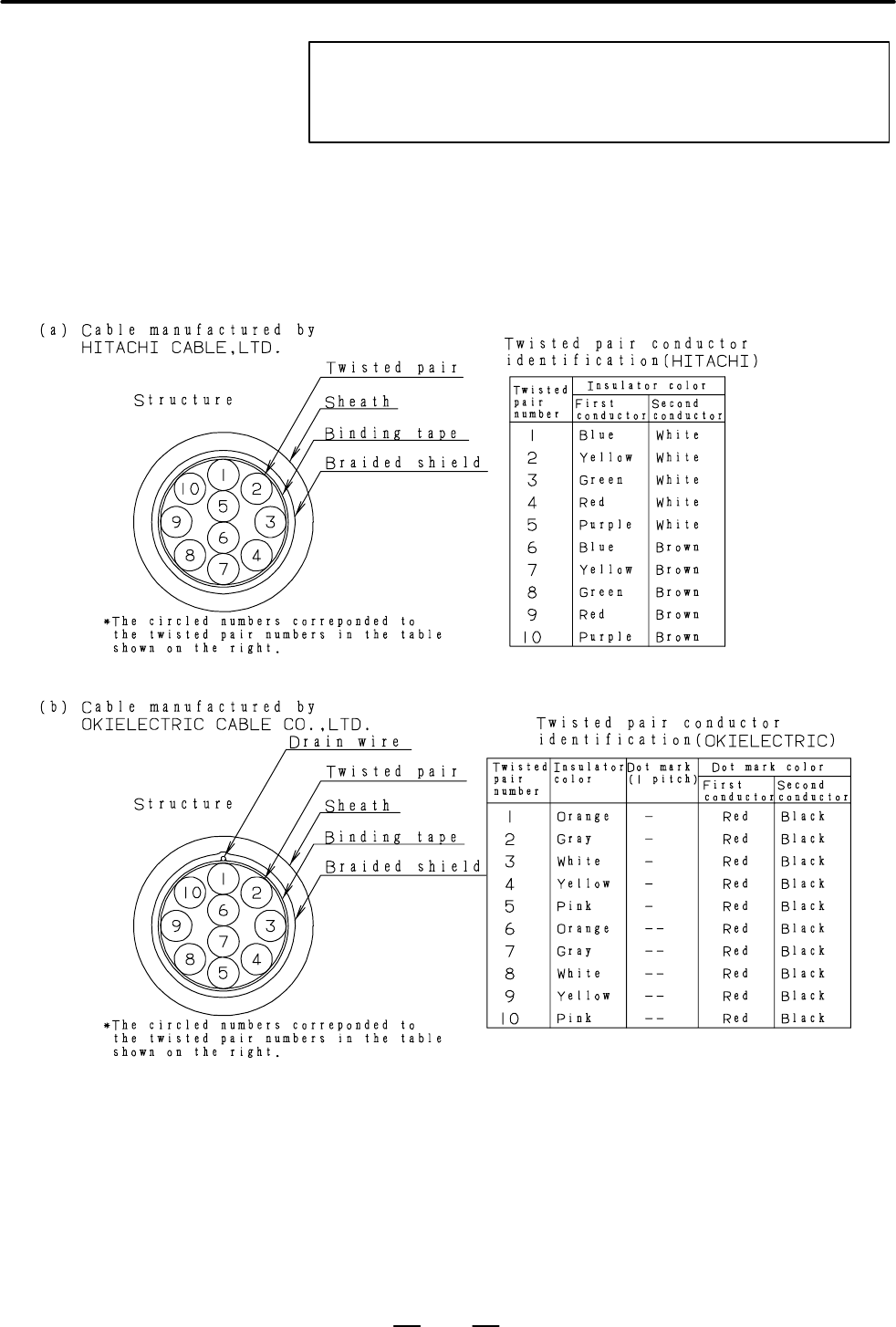

Wire material of cable K1
Recommended material of cable K1 is as follows.
Specification : A66L–001–0284#10P
Name : 10 pairs cable
Material : #28AWG10 pairs (20 cores), Standard Length is
200m
Maker : Hitachi Cable , Oki Electric Cable
(Important points)
(1) Assign the current feedback signal (IRn, ISn, pairs of wires are 1–2,
11–12) in the center of the cable to protect from the effect of the noise.
Otherwise, the motor may move abnormally.
Use pair of wires 5–6 in the case of Hitachi Cable, and 6–7 in the case
of Oki Electric Cable.
(2) The cables are totally shielded. The shield should be ground to the
earth plate near the NC
