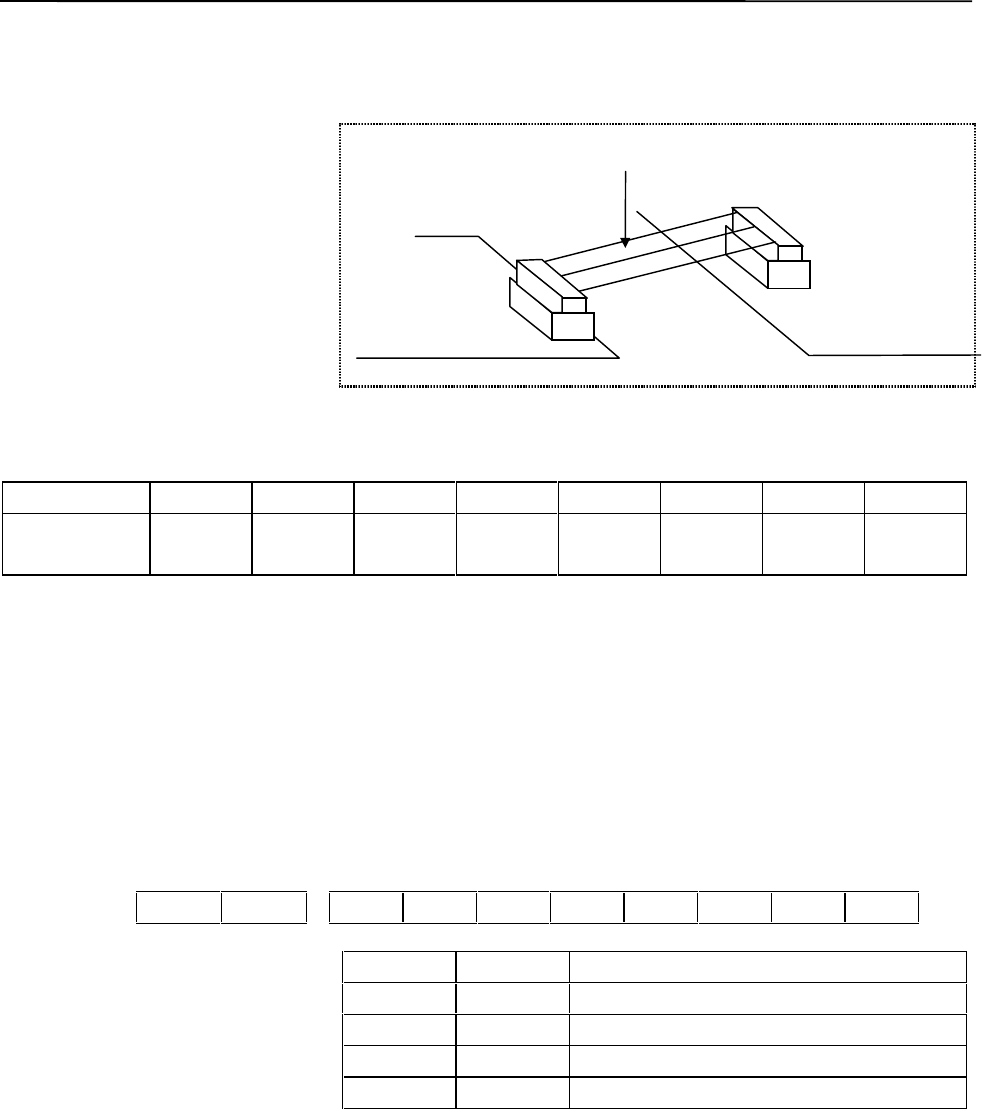

B-65235EN/02 START-UP PROCEDURE 5. SERVO CHECK BOARD
- 51 -
• Series 0-C, Power Mate-D, Power Mate-F
(4) Location of signal ouput
Check pin TSAL TSAM CH1 CH2 CH3 CH4 CH5 CH6
Signal L axis
VCMD
L axis
TCMD
M axis
VCMD
M axis
TCMD
L axis
TSA
M axis
TSA
(Check terminal TSAL or TSAM is not used.)
(5) VCMD signal
The VCMD signal is used to output a speed command.
It can also be used to measure a very small vibration or
uneven movement of the motor. The VCMD signal
conversion mode can be switched by a parameter.
Because the VCMD signal is clamped at ±5V, the
waveform may become difficult observe. In such a
case, switch for easier observation .
#7 #6 #5 #4 #3 #2 #1 #0
2012 8X12 VCM2 VCM1
VCM2 VCM1 Specified speed/5V
0 0 0.9155 rpm
0 1 14 rpm
1 0 234 rpm
1 1 3750 rpm
To check small vibration monitor the entire vibration
on the DC mode of the oscilloscope then enlarge
monitor the desired range on the AC mode.
