Servo Motors Beta Series Maintenance manual Page 82

Maintenance manual
B-65235EN/02 MOTOR MAINTENANCE 1. AC SERVO MOTOR MAINTENANCE
- 81 -
1.2
DAILY INSPECTION OF AC SERVO MOTORS
Before starting operation, or periodically (once a week or
month), you should inspect the β series servo motors in
terms of the following:

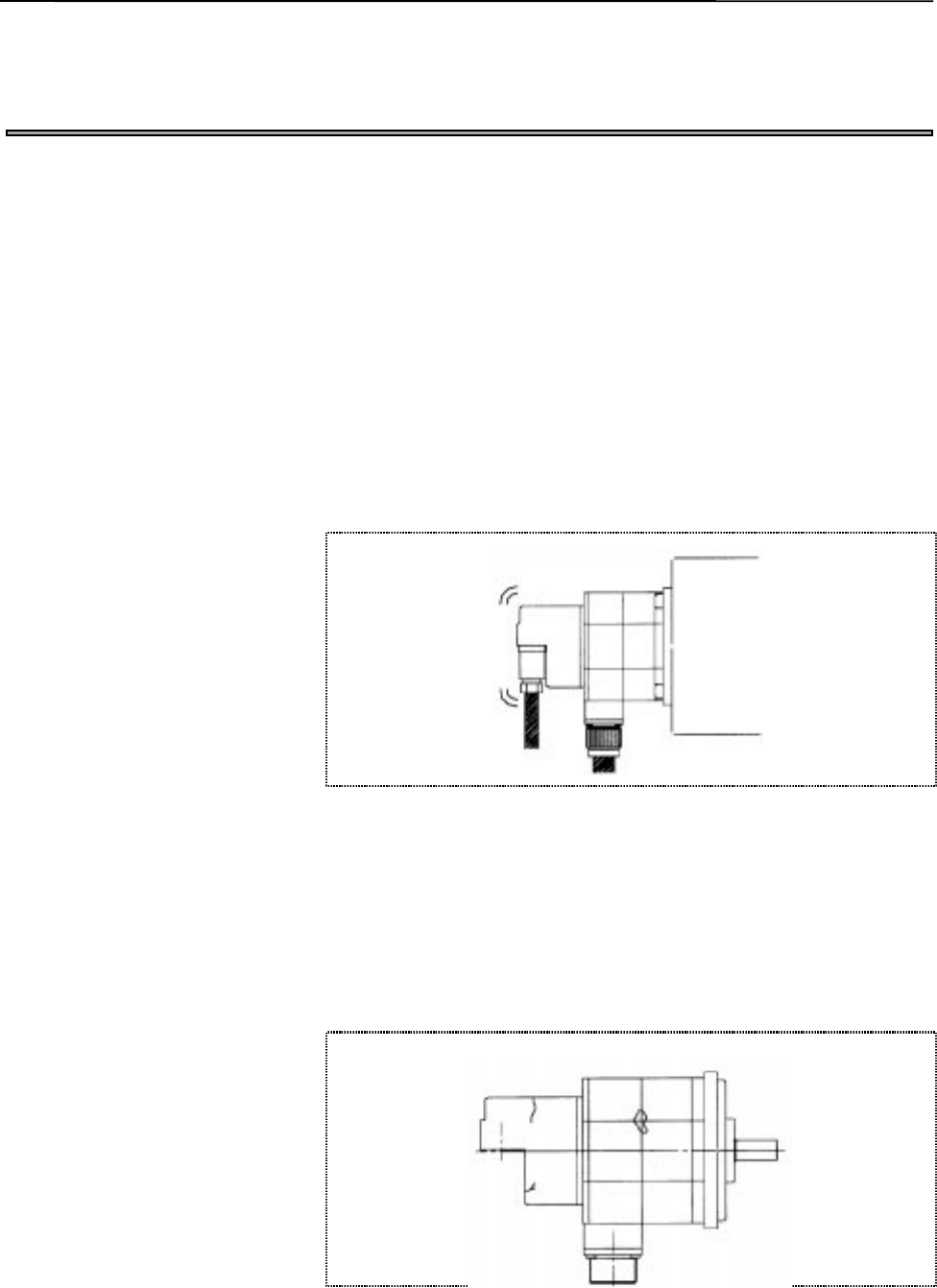

(1) Vibration and noise
Check the motor for abnormal vibration and noise
when the motor is:
– Not rotating
– Rotating at low speed
– Accelerating or decelerating
If you find anything unusual, contact your FANUC
service staff.
(2) Damage on the outside
Check the motor cover (plastic : red) for crevices and
the motor surface (black coating) for scratches and
cracks.
If you find crevices, scratches and cracks on the motor,
we recommend repair or replace the motors.
If you are not clear about replacing the motor, contact
your FANUC service staff.
