Servo Motors Beta Series Maintenance manual Page 85

Maintenance manual
1. AC SERVO MOTOR MAINTENANCE MOTOR MAINTENANCE B-65235EN/02
- 84 -
1.3
PERIODIC INSPECTION OF β SERIES MOTOR
We recommend that you inspect the series motor for the
following items at least once a year.
(1) Observation of torque command (TCMD) and velocity
command (VCMD) waveforms
Observe the normal voltage waveforms with an
oscilloscope, and keep notes of them. During periodic
inspection, check the current waveforms with the
records.
The waveforms vary according to the operating
conditions such as load and cutting speed. Note that
you should make comparisons under the same
condition (during fast traverse to the reference
position, low-speed cutting and so on).
See descriptions on the servo check board in I-5 for
detailed inspection procedures.

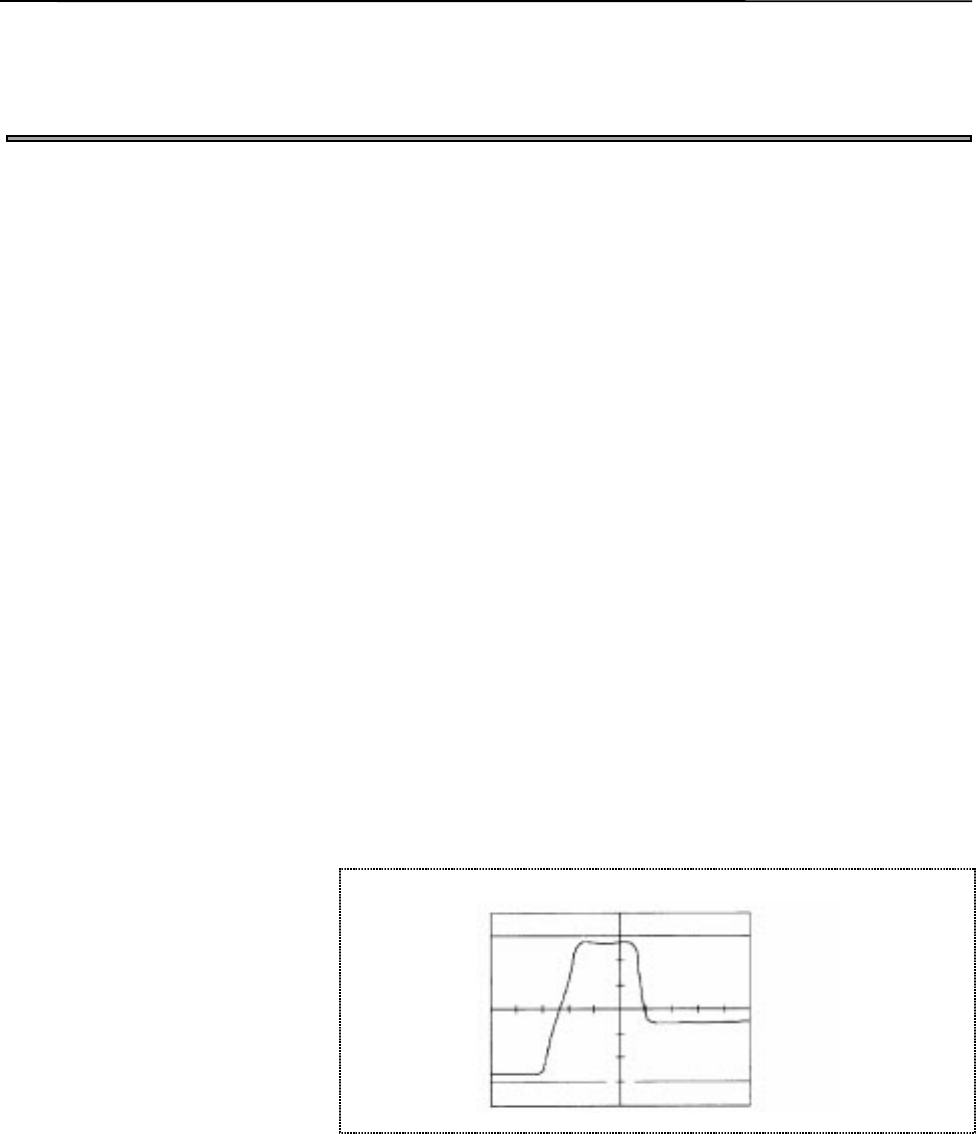

(2) Diagnosis by waveforms
Check the measured waveforms to see whether:
1) The peak current is within the limit to current in
the amplifier.
The reason, if the peak current is increasing, is
presumed to be:
Change the load condition in the machine
Motor failure
0
Measured
waveform
Limit to the
amp.current
