Servo Motors Beta Series Maintenance manual Page 64

Maintenance manual
3. TROUBLESHOOTING AND
B-65235EN/02 TROUBLESHOOTING AND RECOVERY RECOVERY PROCEDURES
- 63 -
3.2
CURRENT CONVERSION FAILURE ALARM

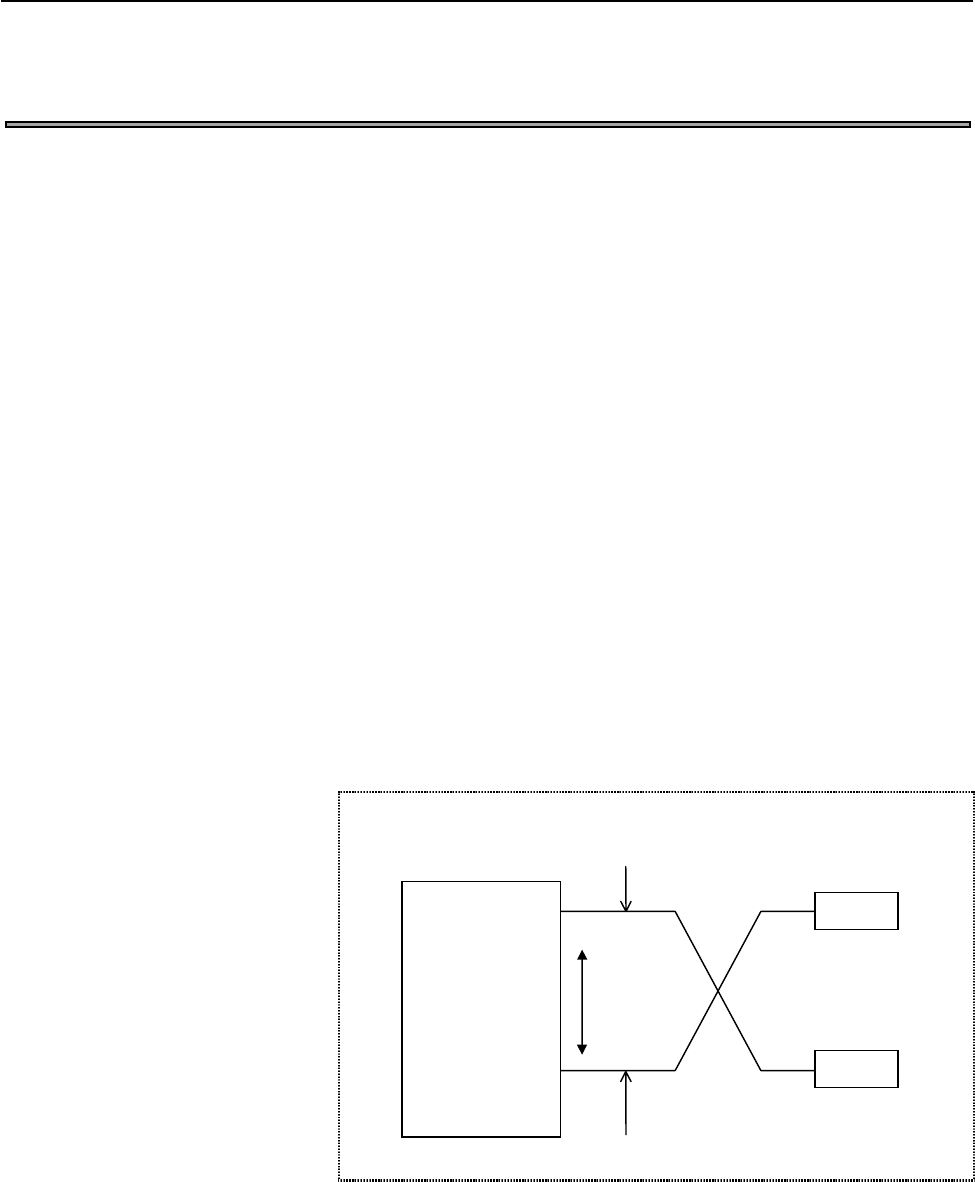

(1) Exchange the command cables as shown in the
example below.
Turn on CNC in an emergency stage.
If the alarm is issued on the same axis, go to (2).
If the alarm is issued now on the axis that was normal,
go to (3).
(2) The module for current conversion in the CNC is
defective.
(3) Disconnect the command cable from the axis on which
the alarm was issued, and connect it to a normal axis.
If the alarm is issued, on the same axis, go to (4).
If the alarm is issued now on the axis that was normal,
go to (5).
(4) The servo amplifier is defective.
(5) The command cable is defective. Replace it.
Normal axis
(M-axis)
L-axis
L-axis command cable
CNC
M-axis command cable
Servo amplifier
Exchange
Defective axis
(L-axis)
M-axis
