9.TOTAL CONNECTION DIAGRAM SVPM B-65322EN/02

- 158 -

9.3.2.3 Details of cable K14

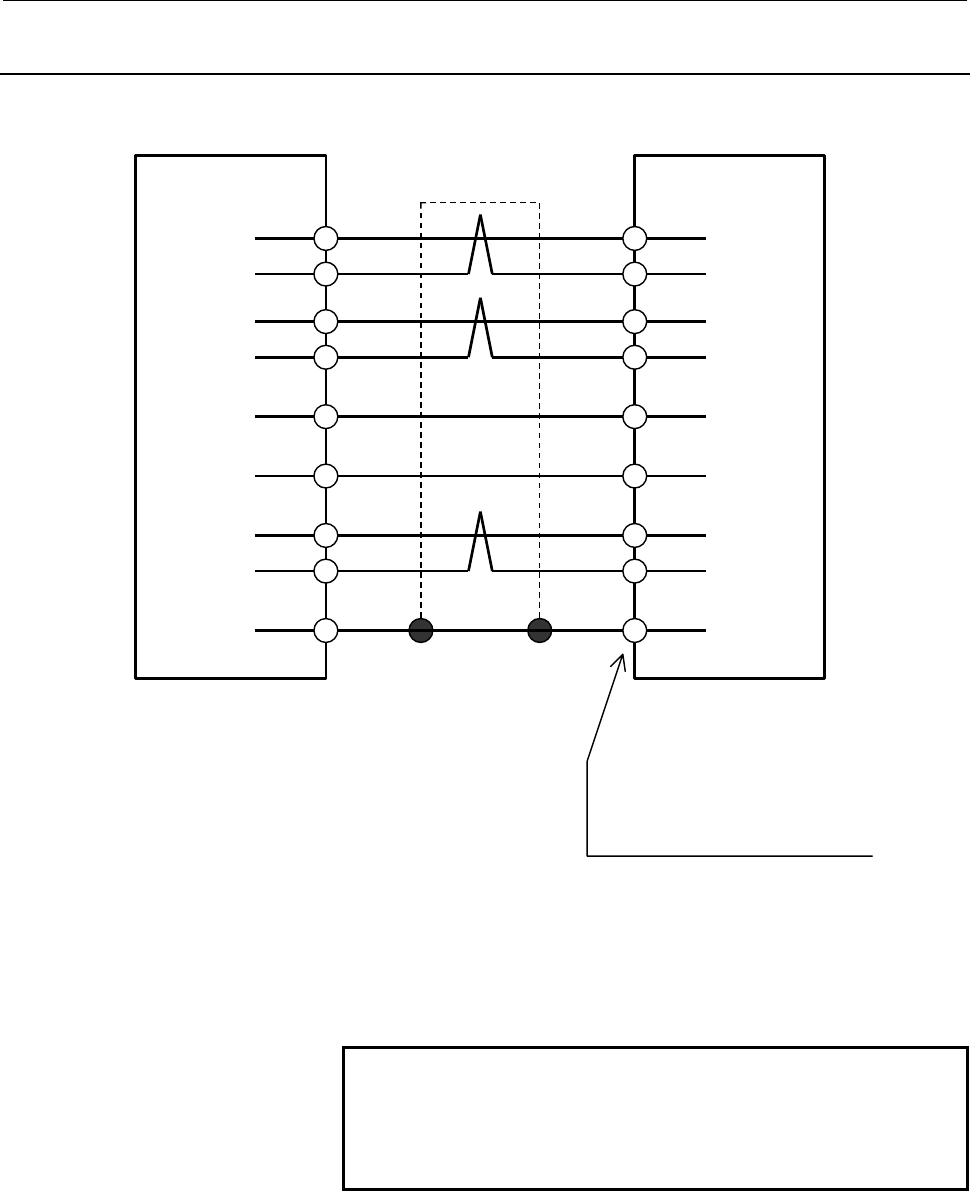

(1) For the motor with Mi sensor

SVPM

JYA2

(5) (A2)MA PA

sensor

Motor

(7)

(A3)MB PB

(20) 5V 5V (A1)

(8)

(B3)*MB RB

(6) (B2)*MA RA

Housing : 178289-6

Contact : 1-175217-2

(16) 0V 0V (B5)

(13)

(A6)THR1 THR1

(15)

(B6)THR2 THR2

(10) (A5)SS SS

Manufactured by Tyco Electronics AMP

0.5mm

Shield

20-pin half-pitch connector

Cable specification : 6 common shielded cable

(Three 0.18mm

twisted pairs + 0.5mm

wires)

Recommended cable conductor : A66L-0001-0368

See Section 5.4.1 for explanations about the JYA2-side connector that

matches the recommended cable.

NOTE

If only one 5V line and only one 0V line are used,

use pins 20 and 16 for them, so that, if the

connector is attached the wrong way, the sensor

can be prevented from being damaged.
