9.TOTAL CONNECTION DIAGRAM I/O Link B-65322EN/02

- 230 -

9.2.16.1 Connection when differential type A/B phase pulse generator

is used

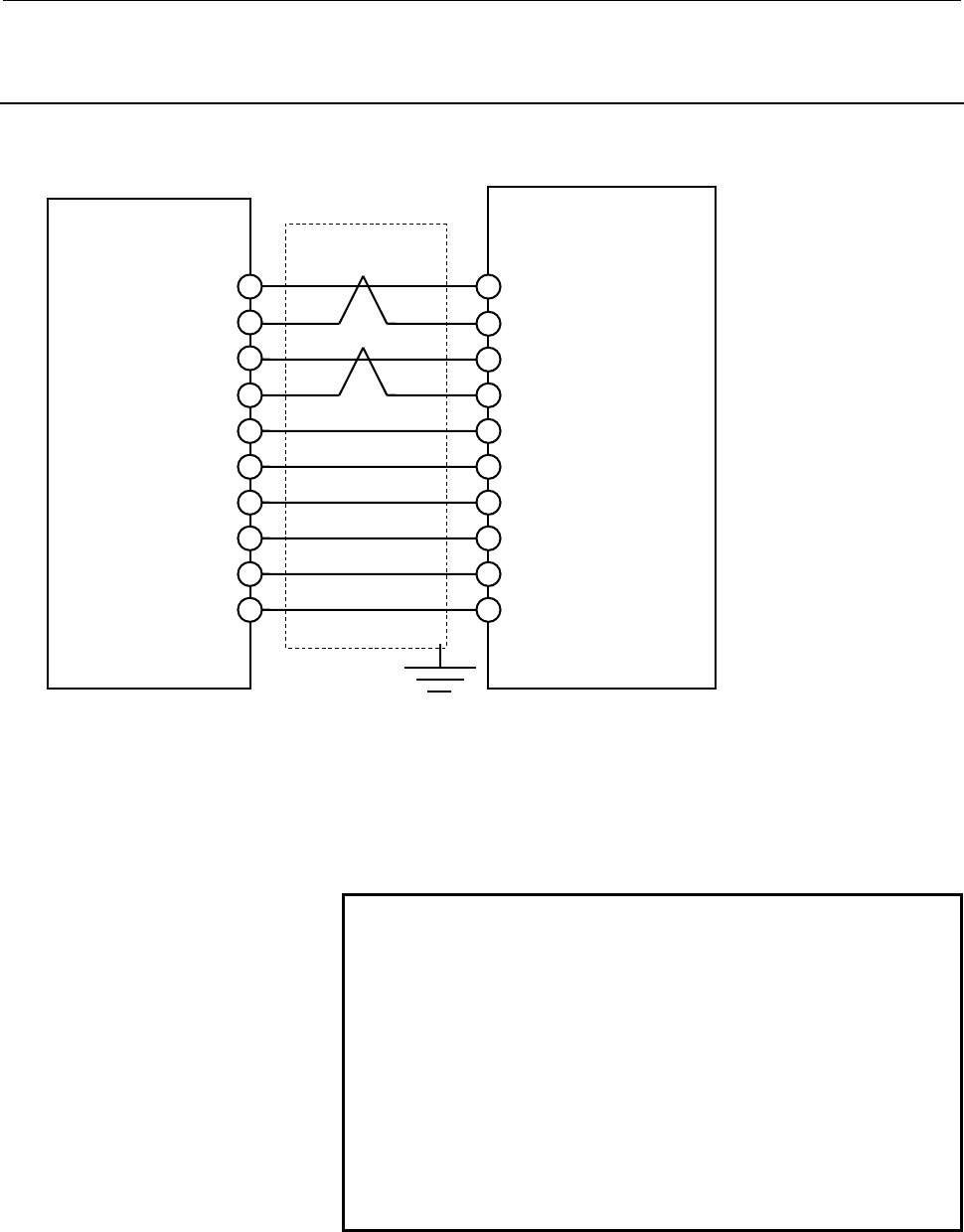

Details of cable K22

K22

External pulse generator βi SVM

(differential output) JA34

PA (1) PA

*PA (2) *PA

PB (3) PB

*PB (4) *PB

+5V (9) +5V

+5V (18) +5V

+5V (20) +5V

0V (12) 0V

0V (14) 0V

0V (16) 0V

Connector: FI40-2015S (Hirose Electric Co., Ltd.)

Case: FI-20-CV (Hirose Electric Co., Ltd.)

Cable specification: Conductor 20/0.18 × 6, 7/0.18 × 3 pairs

Recommended cable:

A66L-0001-0286 (#20AWG × 6 + #24AWG × 6 + #24AWG × 3 pairs)

NOTE

1 Power can be supplied from the βi SVM to the

equipment if the equipment operates on +5 V and

0.35 A maximum.

In this case, pay attention to the power supply

voltage drop due to cable resistance.

2 Be sure to use twisted pairs to connect the PA and

*PA signals and the PB and *PB signals in pairs.

3 Except the pins indicated in the above figure, leave

pins open. Never connect unused conductors of

the cable to these pins.

4 Maximum cable length: 50 m
